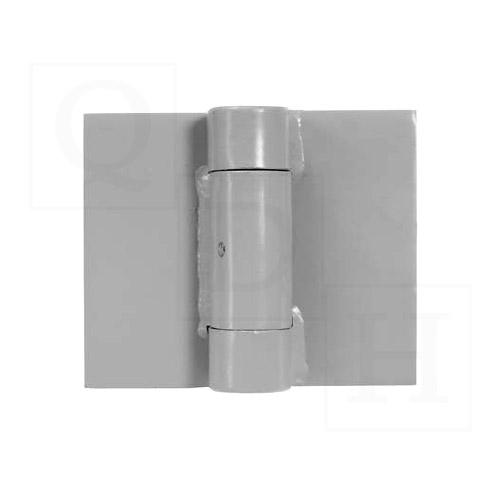

Best (Formerly Stanley) BB852A-5 x 6-USP Full Surface Triple Weight Concealed Bearing Prison Hinge 5" x 6" Furnished With No Holes, Door Weighing Up To 1200 Lbs, Based On a 36" x 84" Door, Using [3] Hinges, See Manuf Cut Sheet, Prime Coat Gray
Sold Per Each
The Best BB852A-5 x 6-USP Full Surface Triple Weight Concealed Bearing Prison Hinge, formerly known as Stanley, is designed for a 36" x 84" door weighing up to 1200 lbs. This professional-grade hinge comes with no holes and requires [3] hinges for installation. Refer to the manufacturer's cut sheet for more details. Available in a prime coat gray finish.
For lead-lined doors to x-ray rooms and extremely heavy doors and gates
For hinged cell-front doors and grated steel doors of penitentiaries, jails, reformatories, etc.
Made of triple weight steel capable of carrying doors weighing up to 1200 lbs. (544 Kg)
(Based on a 3' x 7' door with 3 hinges)
concealed hardened steel races contains sixteen 3/16" (4.8 mm) hardened and ground steel balls which are assembled within a jacket
Provision has been made in the barrel of the hinge for forced lubrication if further lubrication is necessary
Typically made not swaged, no holes (application A) for full surface applications, or for full mortise (applications C) application. All other configurations are made to order
