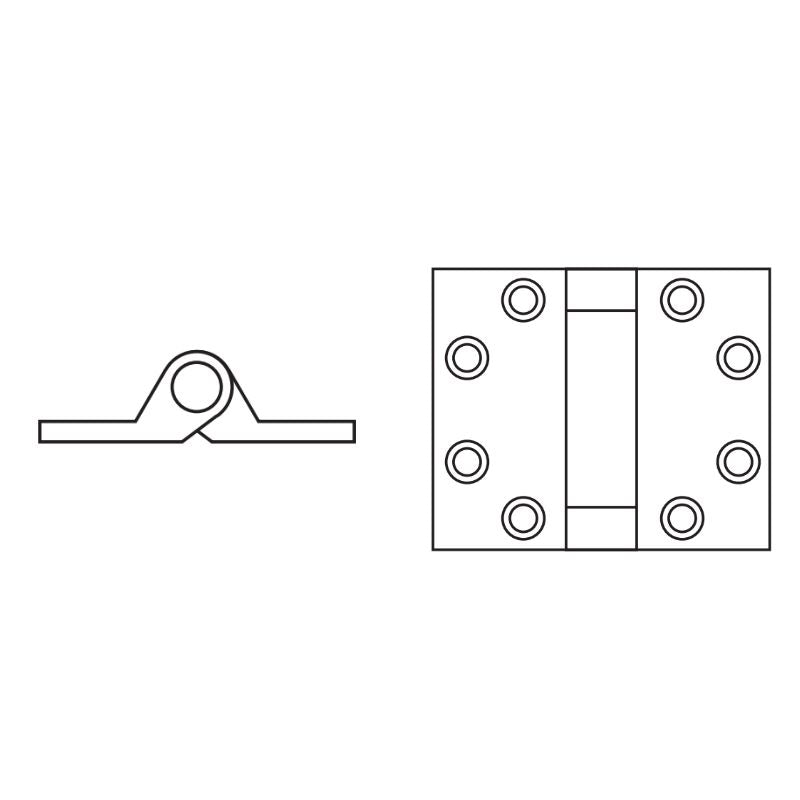

Best (Formerly Stanley) BB855B-5 x 6-USP Full Surface Heavy Weight Concealed Bearing Prison Hinge 5" x 6" Furnished With Fasteners, Door Weighing Up To 800 Lbs, Based On a 36" x 84" Door, Using [3] Hinges, See Manuf Cut Sheet, USP Prime Coat Gray
Sold Per Each
This Best BB855G-USP 5" x 6" Concealed Ball Bearing Detention Prison Hinge is designed for heavy weight doors up to 800 lbs, providing secure and durable support. With its full surface concealed bearings, it allows for smooth and quiet operation. This hinge is primed for easy painting and can come furnished with holes for easy installation.
For lead-lined doors to x-ray rooms and other exceptionally heavy doors
Made of double-weight steel capable of carrying doors weighing up to 800 lbs. (363 Kg) (Based on a 3' x 7' door with 3 hinges)
concealed hardened steel races contains sixteen 1/8" (3.2mm) hardened and ground steel balls which are assembled within a jacket
Concealed bearings are well lubricated ensuring smooth, long-lasting operation
Rolled knuckles are welded and machined
Typically made not swaged, no holes (application A) for full surface applications, or for full mortise (applications C) applications. All other configurations are made to order
