Description

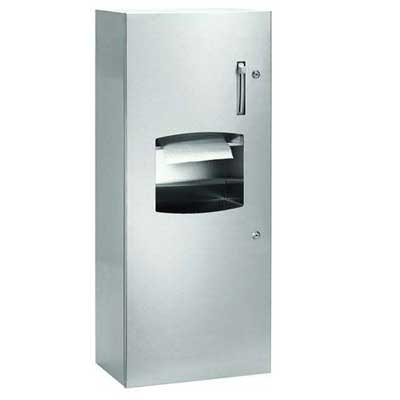

Bradley 2277 Roll-Towel Dispenser 10.5 Gallon Waste Receptacle Recessed, The 2277 Recessed combination towel dispenser and waste receptacle shall be fabricated of heavy gauge stainless steel with exposed surfaces in satin finish.
Features
- Recess Mounted
- Roll towels
- Satin finish Stainless Steel
- 10.5 gallon waste capacity
- BradEX ®
Specifications
| Materials: |
Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges Door:18 gauge stainless steel. 1/2" return for maximum rigidity. Concealed full length stainless steel piano hinge and 2 tumbler locks keyed like other Bradley units Towel Dispenser: Rolled edge on dispenser opening. Waste Receptacle Insert: leakproof molded plastic |
| Operation: | Towel dispenser delivers preset length of towel (2-1/2", 4" or 5" per stroke). Waste receptacle insert removable by unlocking cabinet door. Operates with less than 5 lbs. of force |
| Installation: |
Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-3/4" w x 39-1/2" h x 10-1/4" d (Semi-recessed unit only 3-1/2" deep). Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required. Surface-mounted units must have holes drilled by installer |
| Size: | 17-3/8" (441mm) w x 41-1/4" (1048mm) h x 10-9/16" (268mm) d |
| Capacity: |
Towel Dispenser one standard core 8" or 9"W x 800'L roll paper towel Waste Receptacle Insert 10.5 gal. (1.4 cu. ft.) |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
