Description

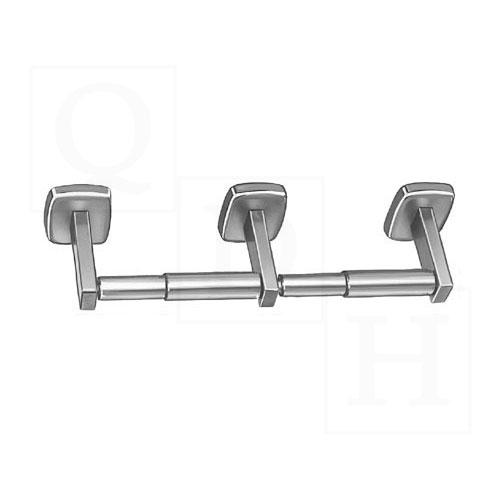

Bradley 5234 Toilet Tissue Dispenser Dual Roll Satin Stainless Steel Non-Controlled Delivery, The 5234 Is a Surface-mounted dual roll toilet tissue dispenser shall be heavy gauge stainless steel with satin finish and hold two standard core toilet tissue rolls
Features
- Non-Controlled Delivery
- Dual Roll
- BradEX ®
Specifications
| Materials: | Posts: 22 gauge stainless steel with exposed surfaces in architectural satin finish Escutcheons: heavy stainless steel with exposed surfaces in architectural satin finish Spindles: chrome-plated plastic Mounting Bracket: 18 gauge stainless steel |
| Operation: | Concealed spring permits spindle to telescope for servicing. Spindle turns freely for non-controlled delivery |
| Installation: | Verify all rough-in dimensions prior to installation. Secure concealed wall mounting bracket to wall with screws (included) at holes provided. Mount projecting arms and escutcheons to bracket and secure with concealed locking screw. Snap escutcheons into place |
| Size: | 13" (330mm) w x 2" (51mm) h x 3 1/8" (79mm) d |
| Capacity: | Two standard core toilet tissue rolls through 5 1/2" in diameter |
| Weight: | 1.00 lbs |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
