Description

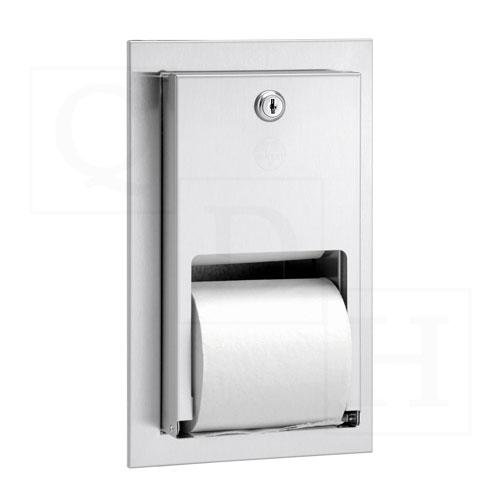

Bradley 5412 Toilet Tissue Dispenser Stacking Rolls Recessed Stainless Steel, The 5412 Is a Recessed dual roll toilet tissue dispenser shall be heavy gauge satin finish stainless steel and hold two standard core toilet tissue rolls.
Features
- 6 per master carton
- Recessed
- Satin finish Stainless Steel
- Dual Roll
- BradEX ®
Specifications
| Materials: | Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one-piece seamless construction, 1" wide with 1/4" return Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edge Service Door: 22 gauge stainless steel with exposed surfaces in architectural satin finish and tumbler lock keyed like other Bradley units. Hinged at bottom Spindles: Molded polyethylene |
| Operation: | Cabinet holds two rolls of 4 1/2" x 5" standard core toilet tissue, one above the other. When first roll is used up, fresh roll automatically drops down for use. Unique retaining mechanism prevents use of spare roll until first roll is completely used. Spindles non-removable by user. Hinged door permits access to storage compartment for servicing of unit |
| Installation: | Verify all rough-in dimensions prior to installation. Requires rough wall opening 5 7/8" w x 10 5/8" h x 4"d. Secure to framing with mounting screws (not included) at holes provided. Mounting Kit #899-027 available from Bradley. Visit bradleycorp.com for more information. Shim at screw points as required |
| Size: | 5 5/8" (143mm) w x 10 3/8" (264mm) h x 5 5/16" (135mm) d |
| Capacity: | Two standard core toilet tissue rolls through 5" in diameter |
| Weight: | 6.00 lbs |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
