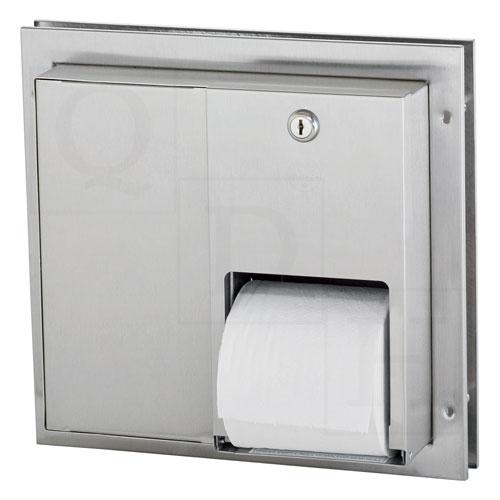

Bradley 5422 Toilet Tissue Dispenser Partition Mounted, Stacking Rolls Stainless Steel, The 5422 Is a Partition-mounted dual roll toilet tissue dispenser In a satin finish stainless steel, The Bradley 5422 holds four standard core toilet tissue rolls-two in reserve for use after first rolls are exhausted
Features
Partition Mounted
Serves Two Compartments
Satin finish Stainless Steel
Dual Rolls (4 rolls total)
BradEX ®
Specifications
Materials:
Flange:22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one-piece seamless construction, 1" wide with 1/4" return Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges Service Door: 22 gauge stainless steel with exposed surfaces in architectural satin finish and tumbler lock keyed like other Bradley units. Hinged at bottom Spindles: molded polyethylene
Operation:
Each cabinet holds two rolls of 41/2" x 5" standard core toilet tissue, one above the other. When first roll is used-up, fresh roll automatically drops down for use. Unique retaining mechanism prevents use of spare roll until first roll is completely used. Spindles non-removable by user. Hinged door permits access to storage compartment for servicing of unit. Serves two toilet compartments, dispensing one roll to each side of partition, while holding a second roll in reserve
Installation:
Verify all rough-in dimensions prior to installation. Requires partition opening 10 5/8" h x 11 3/8" w. Flanges adjustable for partitions from 1/2" to 2" thick. Remove one flange and install cabinet in partition opening. Draw flange tight to partition and secure with screws. Replace flange on opposite side, draw tight to partition, and secure with screws
Size:
11" (279mm) w x 10 3/8" (264mm) h x 6 1/4" (156mm) d
Capacity:
Two dispensers; one per compartment. Each holds two standard core toilet tissue rolls through 5" in diameter
Weight:
11.00 lbs
Manufacturer:
Bradley
Certifications
Barrier-Free Code Compliance:
Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.)
