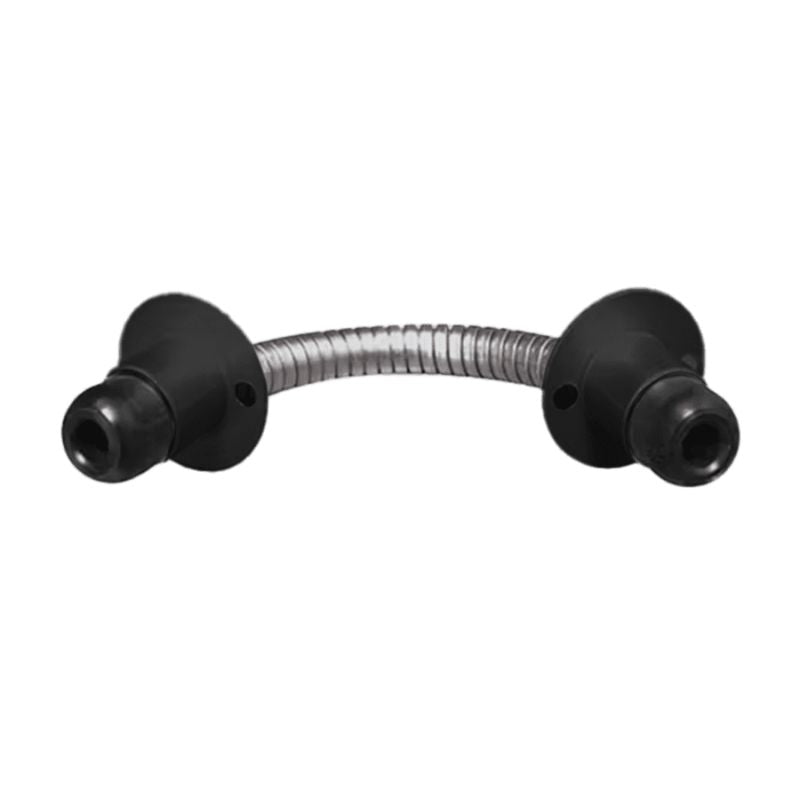

Command Access Technologies CDL-BLK Concealed Door Loop, Standard 6" length, with Black Anodized Finished Caps

The CDL-BLK Concealed Door Loop by Command Access Technologies comes in a standard 6" length with a sleek Black Anodized finish.

• Durable finish

• Easy Installation

• Variable mounting locations

• Special 1/4” flexible armoured conduit

• Supports up to 180° swing

This patented Concealed Door Loop (CDL) offers an economical solution for transferring low voltage power from the door frame to the locking device. Unlike typical door loops that are surface-mounted and always visible, the CDL retracts into the door and/or frame, remaining completely hidden when the door is closed. It is suitable for Continuous and Butt hinge applications, including full mortise, half mortise, or half surface types with a standard throw. The CDL is often used in situations where Electric Transfer Hinges (ETH) are too costly and surface door loops are not preferred. Its aesthetic appeal enhances both retrofit projects and new installations.
