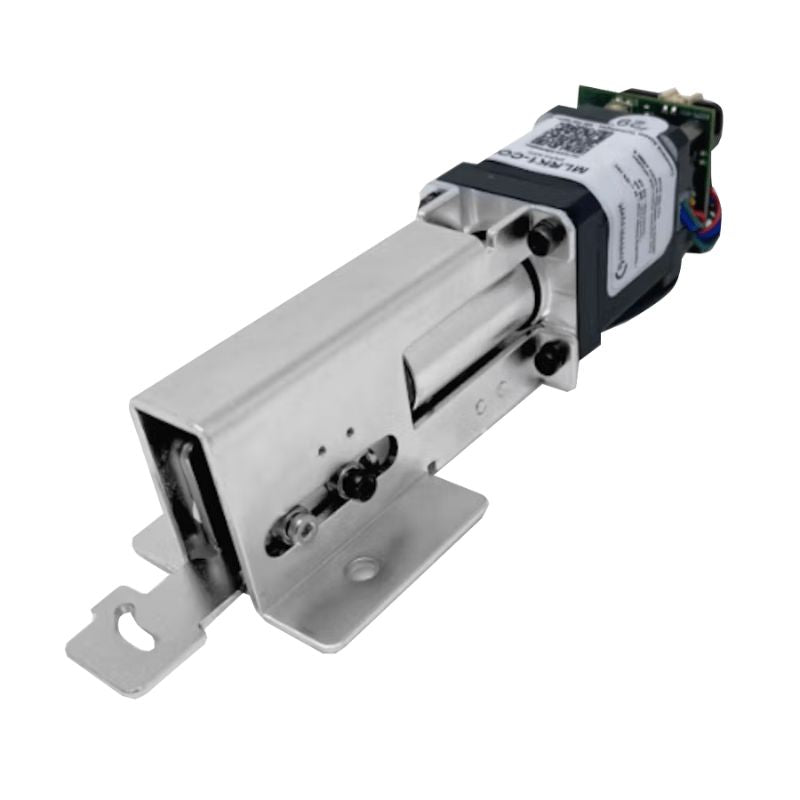

Command Access Technologies MLRK1-COR Motor Latch Retract Kit, For Corbin Russwin 4/5000 Series Exit Device

The MLRK1-COR offers a high-quality, cost-effective solution for converting Corbin Russwin 4/5000 series devices into electrified motor-driven latch retraction exit devices. Our kits not only retract the latch or latches but also the push pad, allowing devices to be electronically dogged and remain in a push/pull state for extended periods. Featuring our patent-pending Push to Set (PTS) Technology, this kit simplifies post-installation adjustments of the latches. Additionally, it includes a motor module that comes with built-in audible diagnostics and offers two different torque settings—from energy-conscious to high torque—ensuring it can handle even the most demanding tasks.

• MM4S Smart Module: Onboard diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide the installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• 3-year “no hassle” warranty

• Work with Corbin Russwin 4/5000 Series Exit Device

MLRK1-VD22 is compatible with:

Corbin Russwin ED5200 Series Exit Devices
