Corbin ML2030-NSVN-630-V20 Privacy Bedroom or Bathroom Mortise Lockset, NS Lever, VN Indicator Escutcheon shows "Vacant/Occupied" Satin Stainless Steel

  • SKU: ML2030NSVN630V20

Corbin ML2030-NSVN-630-V20 Privacy Bedroom or Bathroom Mortise Lockset, NS Lever, VN Indicator Escutcheon shows "Vacant/Occupied" Satin Stainless Steel

  • SKU: ML2030NSVN630V20
Sale price$806.65/ea
Available (1 Week)
1 Week Lead Time
Visa Mastercard American Express Discover Shop Pay Apple Pay

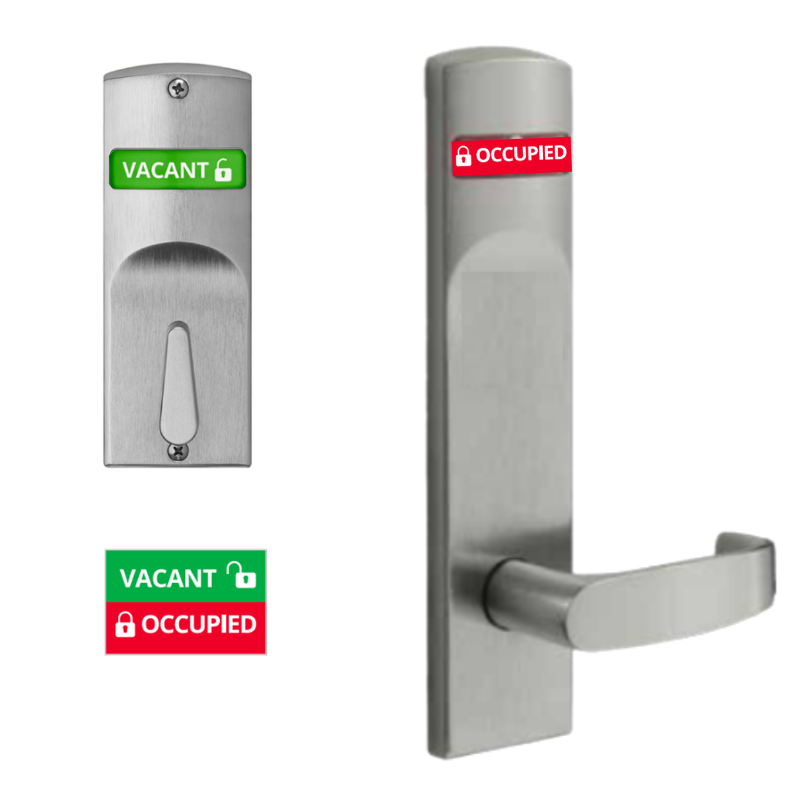

The Corbin ML2030-NSVN-630-V20  is a Privacy Bedroom or Bathroom function Mortise Lockset, that has an NS Lever, a VN Indicator Escutcheon that shows on the exterior "Vacant/Occupied" in Green & Red,  is Field Reversible and comes in Satin Stainless Steel.

The Corbin Russwin Mortise Lock ML2030 is a mortise lever lockset used for private bedroom or bathroom functions. The ML2030 is a grade-one lever mortise lock ideal for use in institutions and commercial buildings.


  • Privacy, bedroom or bathroom function
  • Latch-bolt by grip on either side unless the outside grip is locked by thumb-turn
  • Deadbolt by thumb-turn grip inside or by emergency release tool outside
  • The inside grip simultaneously retracts the latch-bolt and deadbolt and unlocks the outside grip
  • The patented quick reversible feature enables the reversal of hands without disassembling the lock case (Patent #6,349,982)
  • Security trims provide a vandal-resistant barrier
  • Can be used with new or existing Corbin Russwin key systems, including patented high-security Pyramid cylinders. (Patent #6,125,674). Also accepts cylinders from most other manufacturers
  • Provides life safety and security in a single-door prep, saving the additional cost of a deadlock
  • Through-bolted trim designs for proper alignment and increased security


Handed; quick reversible. The lockset can be re-handed without disassembling the lockcase

Door Thickness:

1-3/4" (44mm) standard
Optional door thicknesses available


2-3/4" (70mm)


Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
Optional: non-ferrous lockcase for corrosion resistance


Heavy gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors

Armored Front:

Wrought brass, bronze, or stainless steel attached by machine screws to lockcase front


2-piece mechanical anti-friction insert, 5/8" (16mm) x l" (25mm) x 3/4" (19mm) throw

Auxiliary Latchbolt:

9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking


One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw

Occupancy Indicator:

Occupancy indicators for use with ML2000 x sectional trim. Design features option for dual indicators on double cylinder functions, confirming door is secured from either side. Emergency override standard for all non-keyed functions


Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm)
Lever: steel, 5/16" (8mm). (Including VR)


C. to c. knob/lever to cylinder: 3-5/8" (92mm)
C. to c. knob/lever to thumbturn: 2-7/16" (62mm)


Wrought brass, bronze, or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths, and ANSI wrought strike box available


Brass, 6-pin, L4 keyway, 0-bitted standard (Standard)


Two nickel silver standard

Keying features available:

Master keying | Construction master keying | Visual key control | Concealed key control | Plug only to show (concealed shell) | 7-pin cylinder | Security | Security (IC) | Pyramid (FC) | Pyramid (IC) | Interchangeable core (IC) | Master ring cylinder | Blockout cylinder | Flex head cylinder


One-year limited warranty


Meets A156.13 Series 1000, Operational and Security Grade 1
Meets A117.1 Accessibility Code


Meets FF-H-106C

UL /ULC-UL10C Positive Pressure:

All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letters F and UL symbol on the armored front indicate listing

California State Reference Code:

All levers with returns, return to within l/2" of the door face


Certified (refer to local codes)


Manufacturer Corbin Russwin
SKU ML2030 NSVN 626 M31 V20
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Trim Pack Only
Base Material Brass or Bronze
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver


Function 30-Privacy Bedroom or Bathroom
ANSI Function F19 - Privacy/Bed/Bath
Lever/Knob Design NS - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design VN - Escutcheon
Handing Right Hand
Door Thickness 1 3/4"
Product Type Trim Kits & Packs
