Corbin Russwin CL3810-NZD Passage Cylindrical Lever Lockset, Newport Lever, Non Keyed

  • SKU: CL3810NZD626

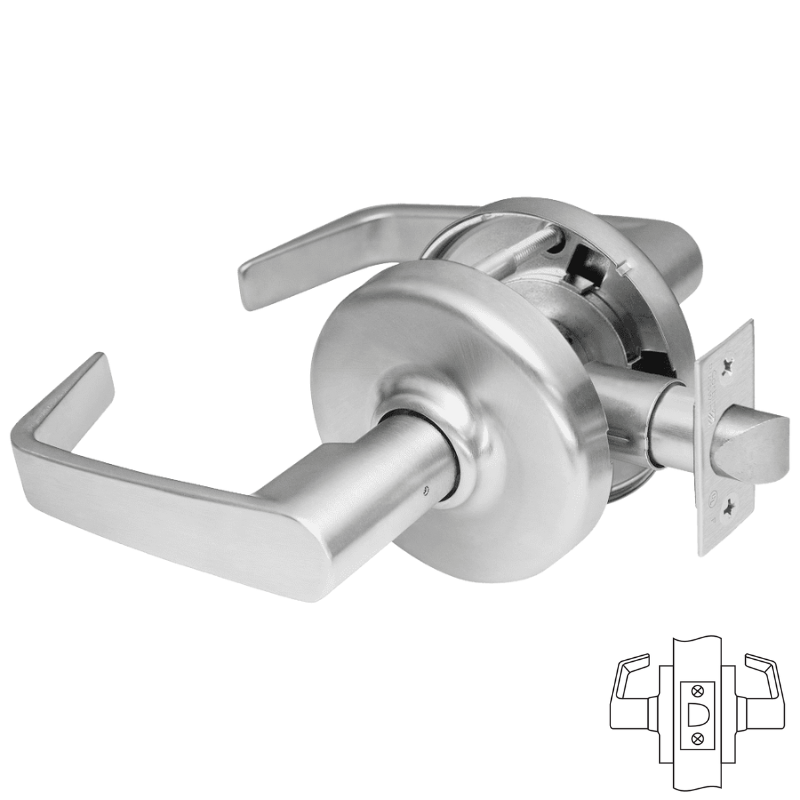

Corbin_Russwin_CL3810-NZD-626
Corbin_Russwin_CL3810-NZD-626
CorbinRusswinCL3810Series
Corbin_Russwin_CL3810-NZD-619

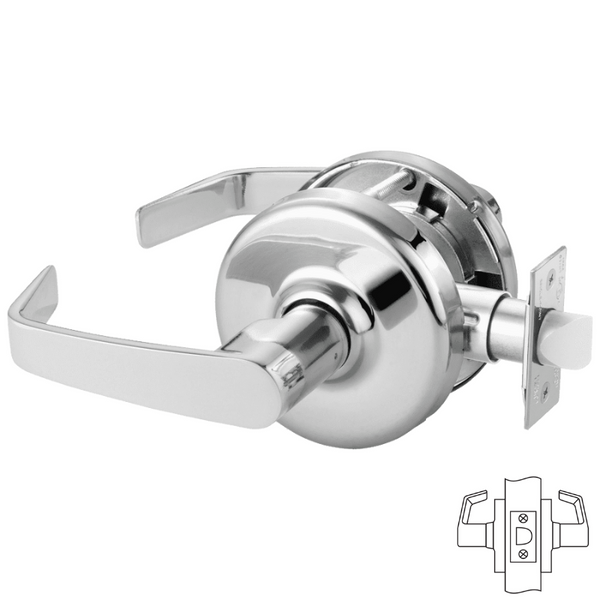

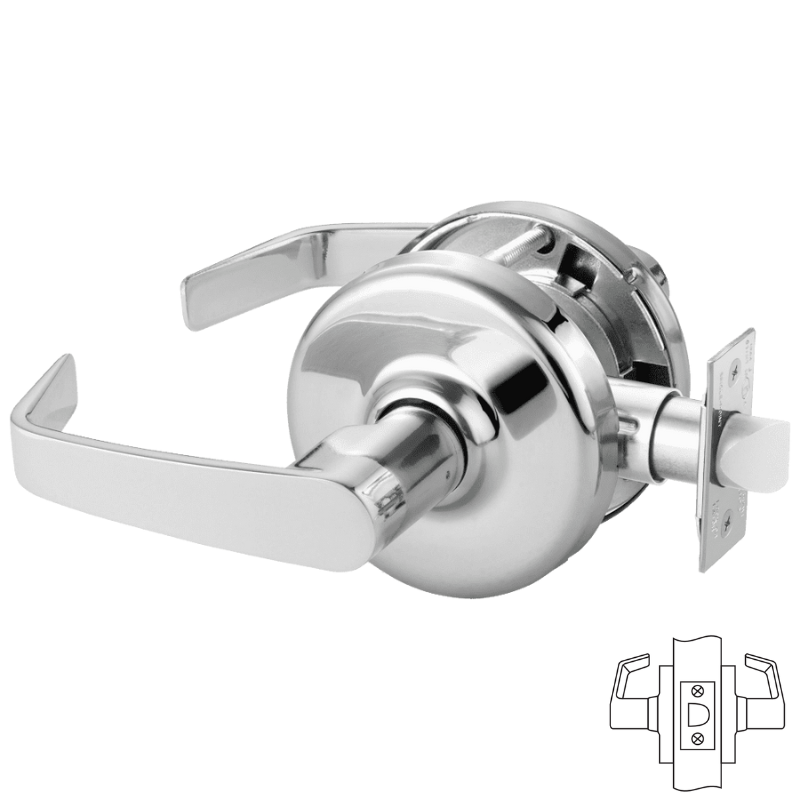

Corbin_Russwin_CL3810-NZD-625

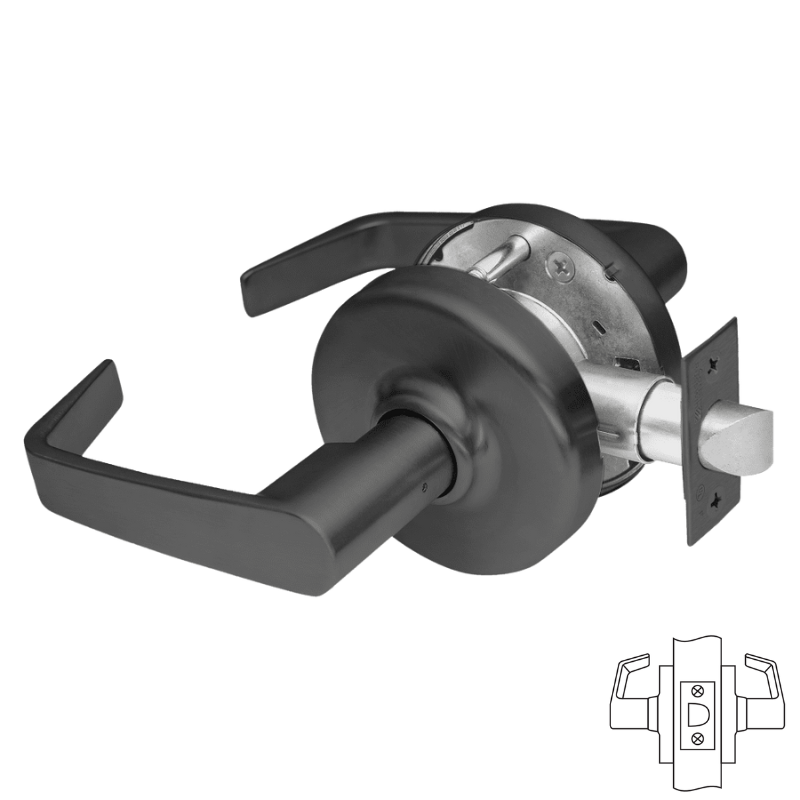

Corbin_Russwin_CL3810-NZD-BSP

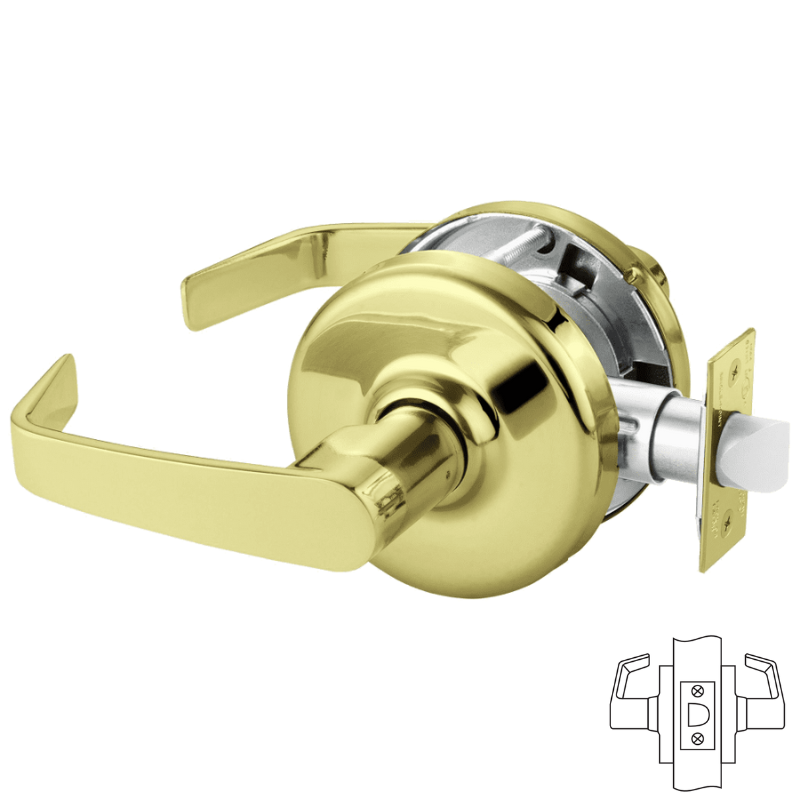

Corbin_Russwin_CL3810-NZD-605

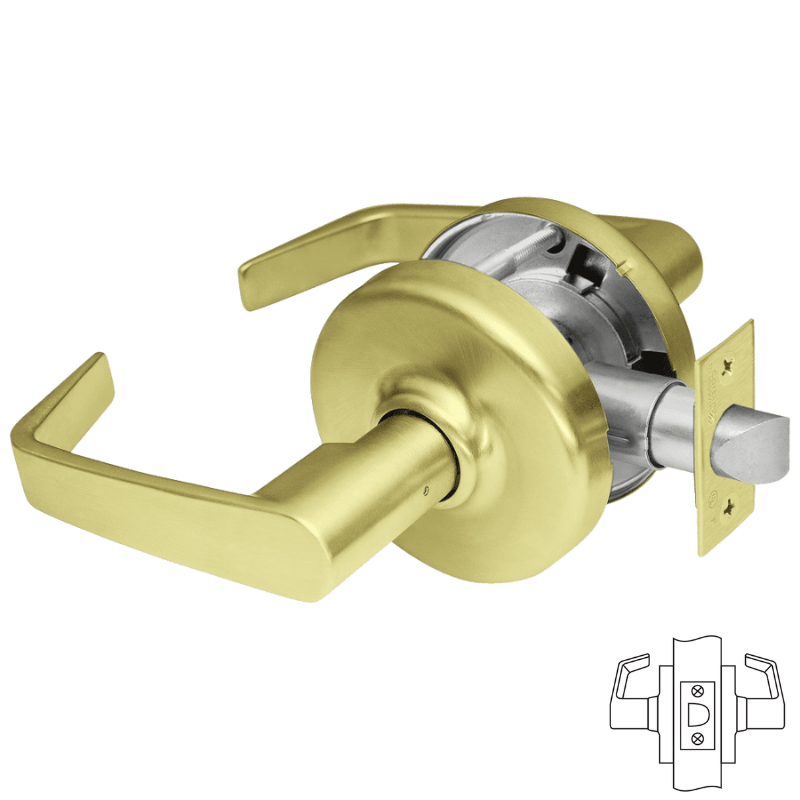

Corbin_Russwin_CL3810-NZD-606

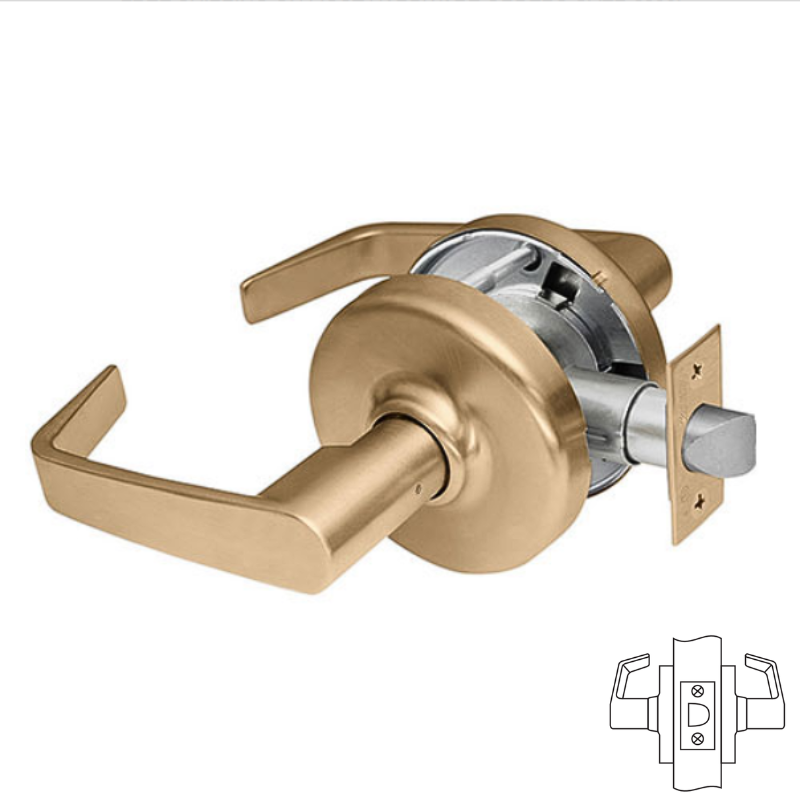

Corbin_Russwin_CL3810-NZD-612

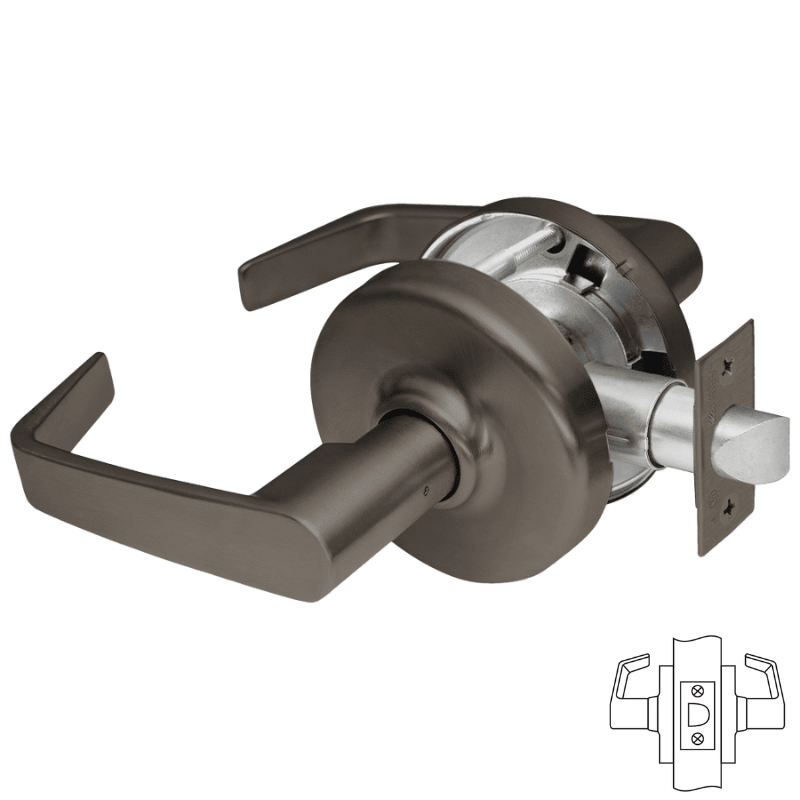

Corbin_Russwin_CL3810-NZD-613
Corbin_Russwin_CL3810-NZD-613E
All CORBIN RUSSWIN Products

Corbin Russwin CL3810-NZD Passage Cylindrical Lever Lockset, Newport Lever, Non Keyed

  • SKU: CL3810NZD626
  • ✓
    Available (2 Weeks)
    2 Weeks Lead Time
Your Price
$197.75/ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Corbin Russwin CL3810-NZD Passage Cyl...
Quantity
–
+
From $197.75
Corbin Russwin DC6210-M54 Surface Doo...
Quantity
–
+
From $319.17
McKinney TA2714-4 1/2 x 4 1/2 Full Mo...
Quantity
–
+
From $14.15
Total

Corbin Russwin CL3810-NZD Passage Cylindrical Lever Lockset, Newport Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 2, Non-Handed

The Corbin Russwin CL3810 Cylindrical Lever Lockset in the Newport Lever style features a 2-3/4" backset and 4-7/8" strike, making it a Grade 2 product that can be installed on either side of a door without a key.

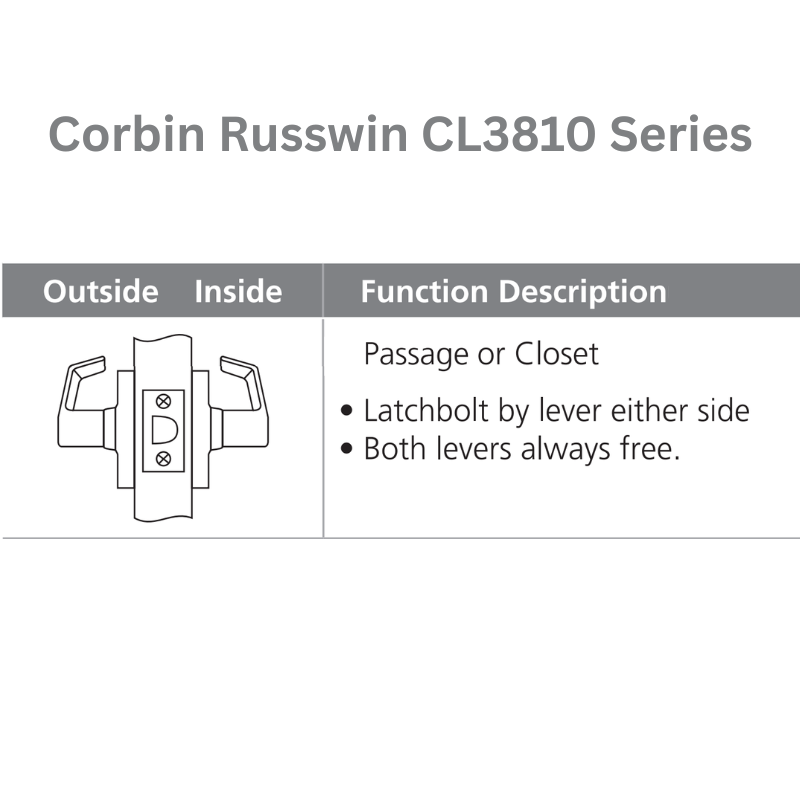

Functions: Passage or Closet-Non Keyed

  • Latchbolt by lever either side
  • Both levers are always free

CL3800 Series Grade 2 Cylindrical Lever Locks

An ideal choice for standard commercial applications, the Corbin Russwin CL3810 Cylindrical Lever Lock provides a cost-effective Grade 2 standard-duty lockset that offers exceptional value and performance. Its compatibility with the CL3300 Series Extra Heavy-Duty Grade 1 and CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets reduces overall project costs without sacrificing functionality or durability.

Typical applications include: Interior offices; Closets; Multi-family housing; Restaurants; Retail complexes

Key Advantages:

  • Lever Release™ for vandal resistance
  • Solid cast levers
  • ANSI/BHMA Grade 2 certification
  • UL-cUL 3-hour fire rating
  • Independent lever return springs
  • Thrubolts on door for solid attachment
  • Covers ANSI/BHMA door prep A156.115
Manufacturer Corbin Russwin
SKU CL3810 NZD
Unit of Measure Each
Origin USA
Installation Commercial
Fire Rating 3 Hours {A}
Limited Warranty 7 Years
Grade  Grade 2
Cylinder Type Non-Keyed
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Lever/Knob Design NZ - Newport Lever
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Bore Hole Diameter 2-1/8"
Rose/Escutcheon Design D Rose
Handing Not Handed
Lock Face Size 2-1/4" x 1-1/8"
Std. Strike Number 217L13
Door Thickness 1-3/8" - 1-3/4"
Bolt Projection 1/2" Latch
Std. Strike Type ANSI Strike
Lever/Knob Design Family Return Lever
Function 10-Passage or Closet Lock
Std. Latch Number 600F09
Std. Latch Type Spring Latch (Unguarded)
Function Family Passage
ANSI Function F75 - Passage
