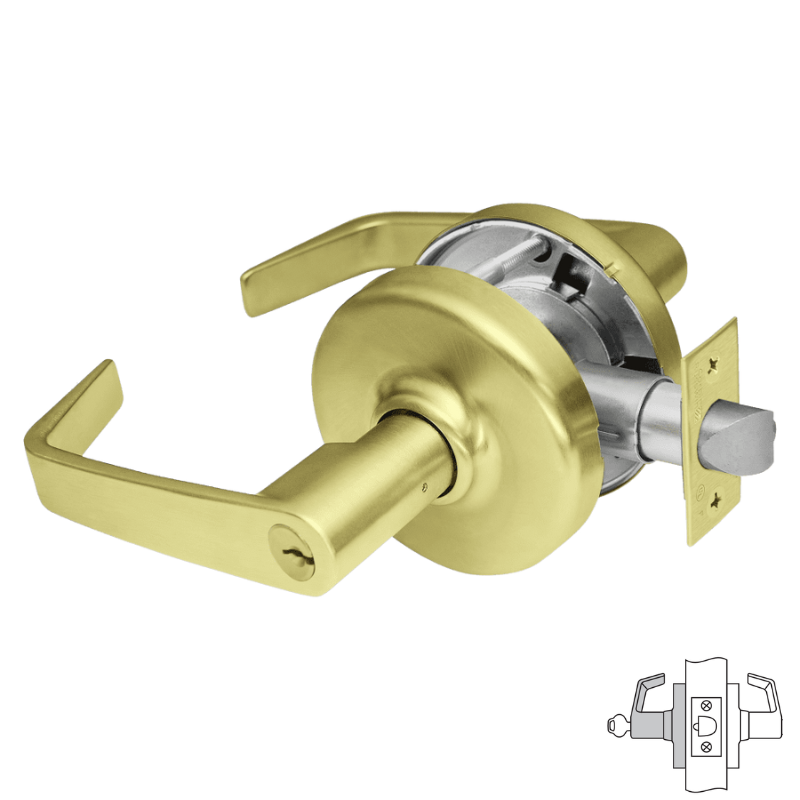

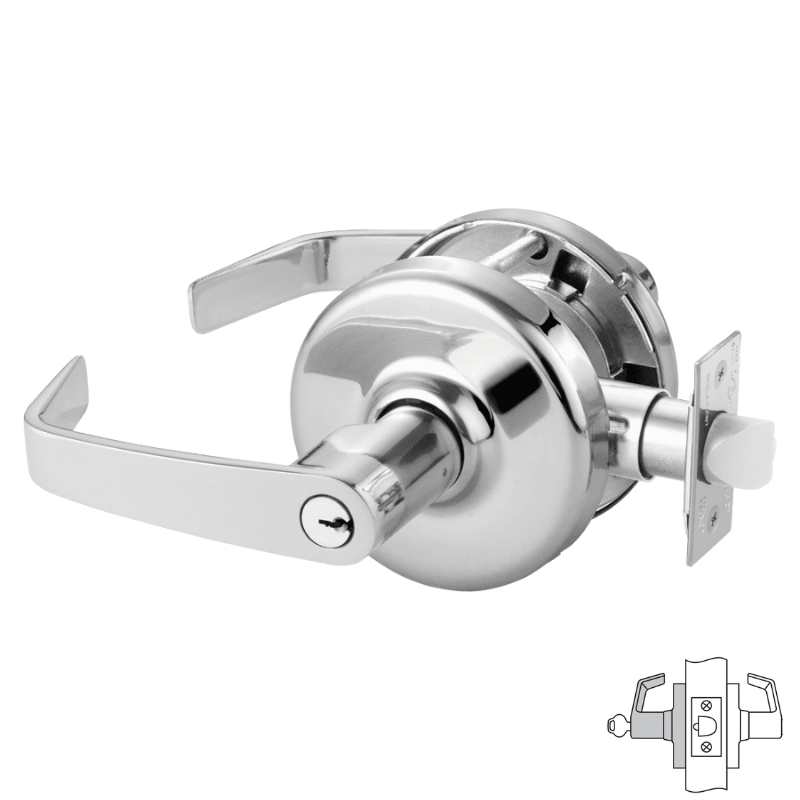

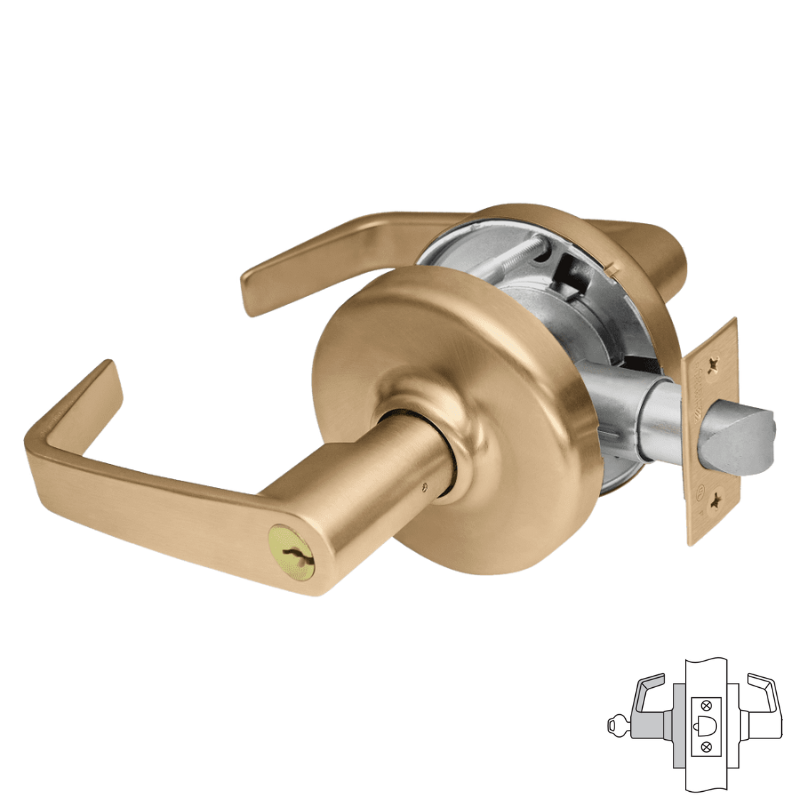

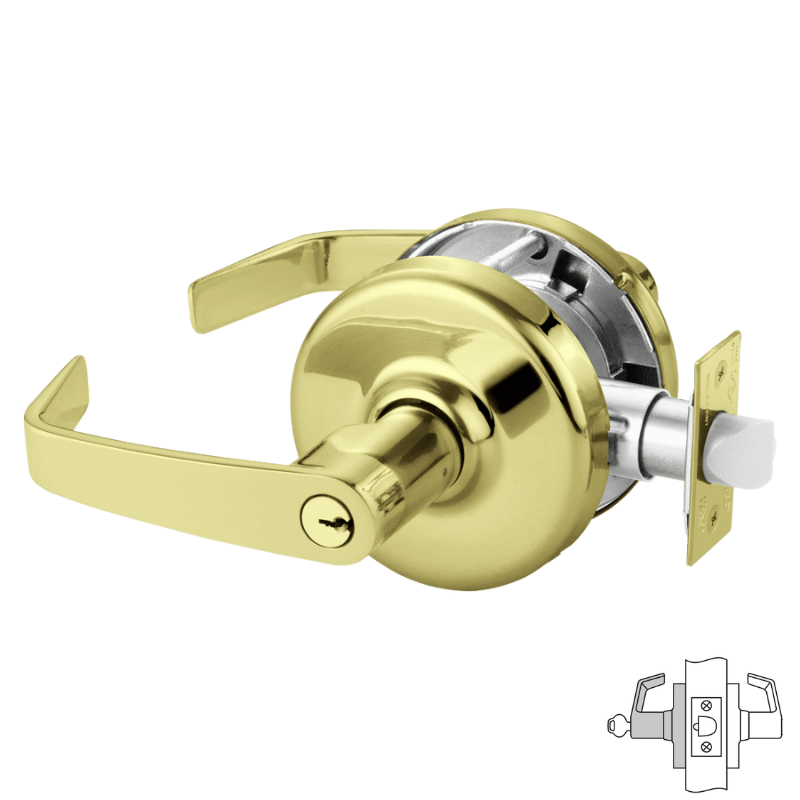

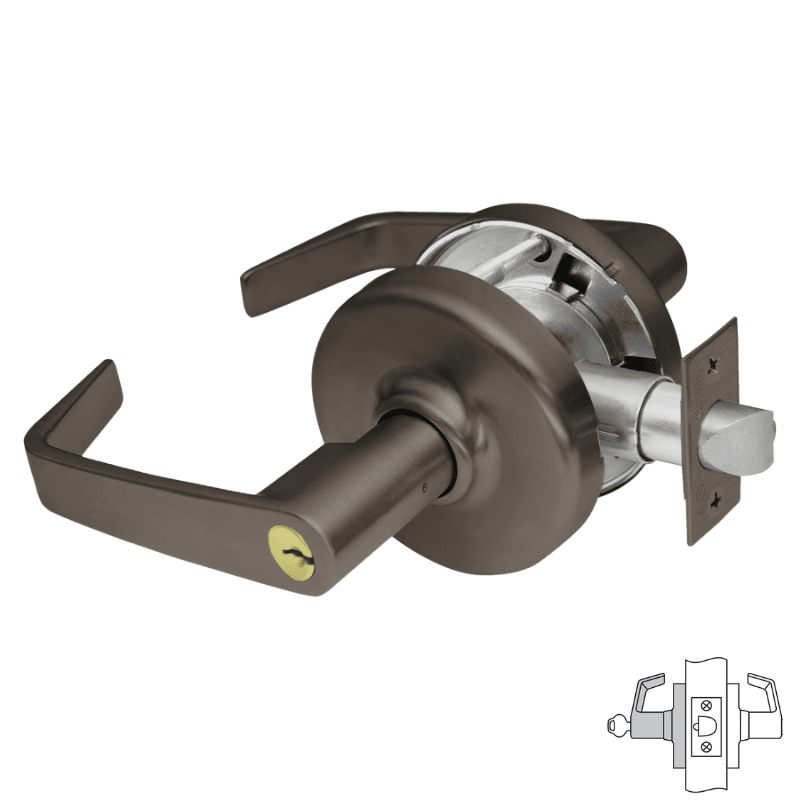

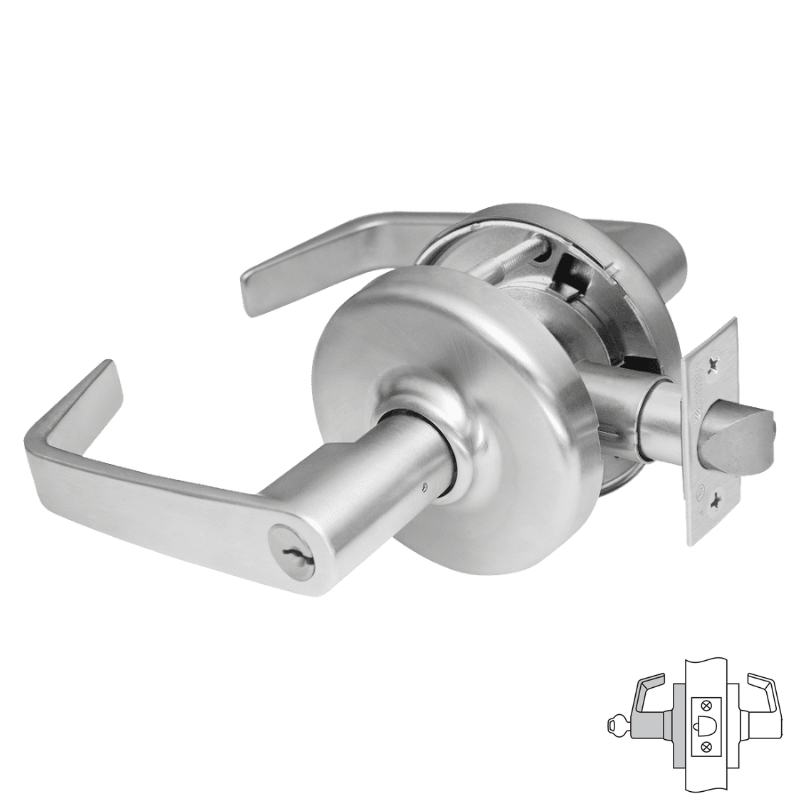

Corbin Russwin CL3855-NZD Classroom Function Cylindrical Lever Lockset, Newport Lever, L4 Keyway, Keyed Random, [2] Keys, 2-3/4" Backset, 4-7/8" Strike, Grade 2, Non-Handed
The Corbin Russwin CL3855-NZD Cylindrical Lever Lockset features Newport Lever and L4 Keyway, and is designed for Classroom Function with Keyed Random access. It includes 2 keys, has a 2-3/4" backset and a 4-7/8" strike, and is Grade 2 and Non-Handed for added versatility.

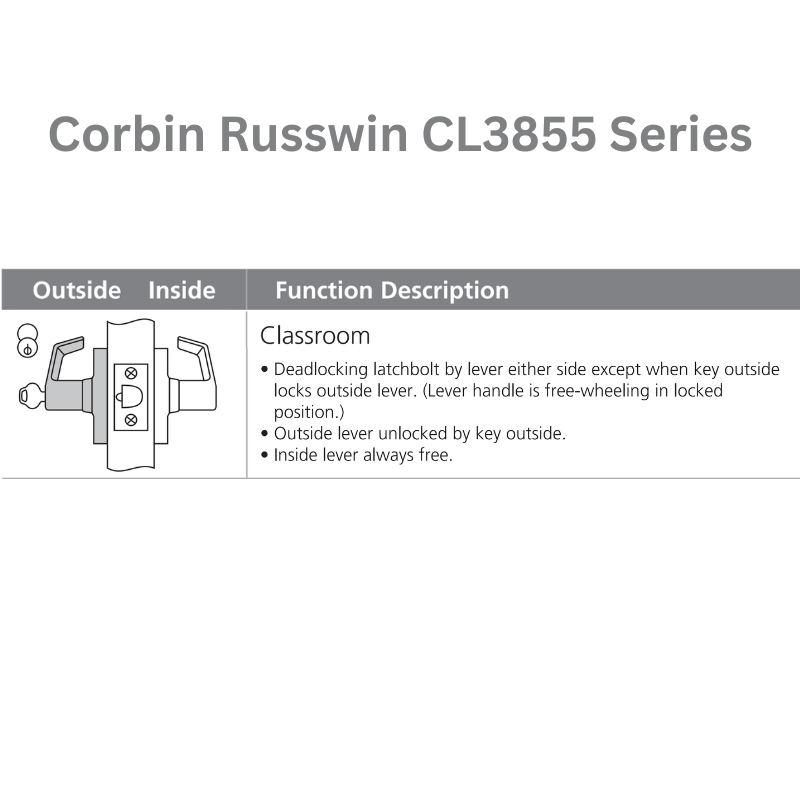

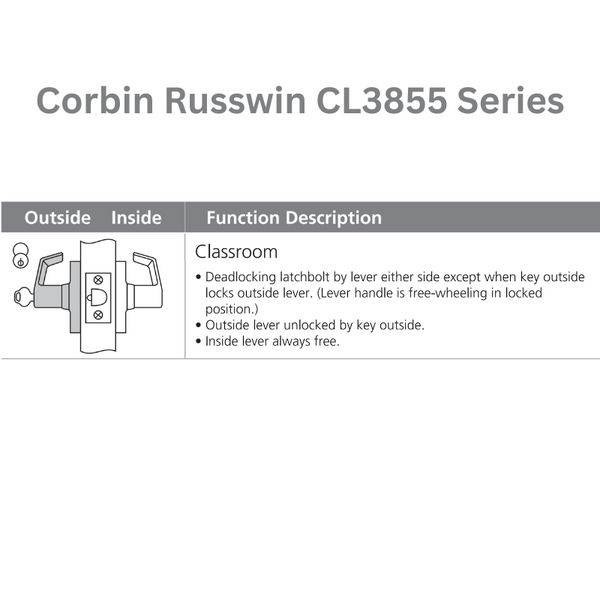

Functions: Classroom, L4 Keyway, Keyed Random, [2] Keys
- Deadlocking latchbolt by lever on either side except when key outside locks outside lever. (Lever handle is free-wheeling in locked position.)
- The outside lever is unlocked by the key outside.
- The inside lever is always free.
CL3800 Series Grade 2 Cylindrical Lever Locks
An ideal choice for standard commercial applications, the Corbin Russwin CL3810 Cylindrical Lever Lock provides a cost-effective Grade 2 standard-duty lockset that offers exceptional value and performance. Its compatibility with the CL3300 Series Extra Heavy-Duty Grade 1 and CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets reduces overall project costs without sacrificing functionality or durability.
Typical applications include: Interior offices; Closets; Multi-family housing; Restaurants; Retail complexes
Key Advantages:
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI/BHMA Grade 2 certification
- UL-cUL 3-hour fire rating
- Independent lever return springs
- Thrubolts on door for solid attachment
- Covers ANSI/BHMA door prep A156.115
| Manufacturer | Corbin Russwin |
| SKU | CL3855 NZD |
| Unit of Measure | Each |
| Origin | USA |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Limited Warranty | 7 Years |
| Grade | Grade 2 |
| Cylinder Type | L4 Keyway, Keyed Random |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Lever/Knob Design | NZ - Newport Lever |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Bore Hole Diameter | 2-1/8" |
| Rose/Escutcheon Design | D Rose |
| Handing | Not Handed |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Std. Strike Number | 217L13 |
| Door Thickness | 1-3/8" - 1-3/4" |
| Bolt Projection | 1/2" Latch |
| Std. Strike Type | ANSI Strike |
| Lever/Knob Design Family | Return Lever |
| Function | 55-Classroom Lock |
| Std. Latch Number | 600F09 |
| Std. Latch Type | Spring Latch (Unguarded) |
| Function Family | Classroom |
| ANSI Function | F84 - Classroom |
