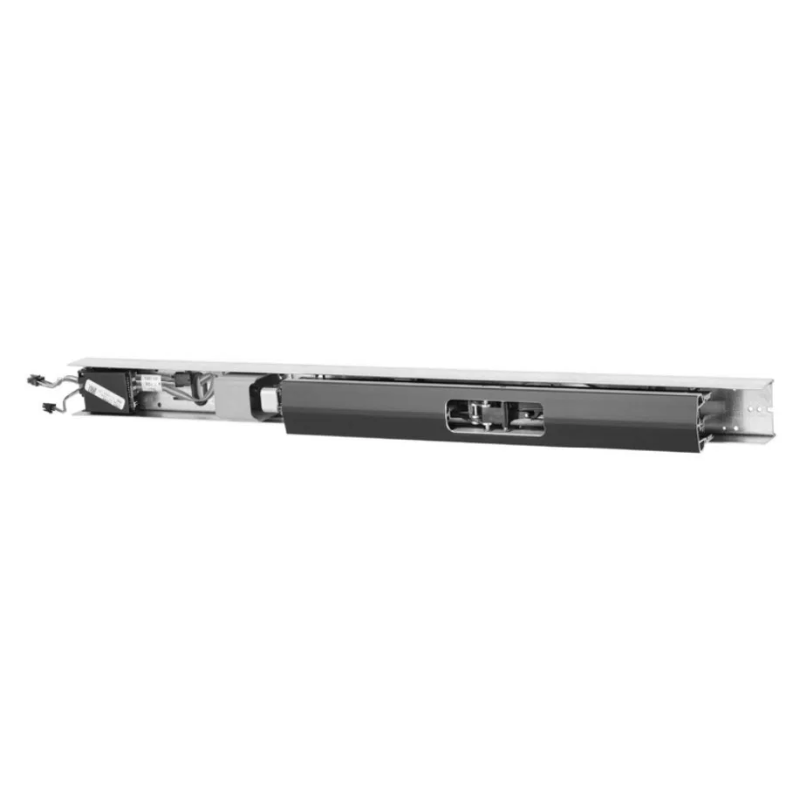

Corbin Russwin CRMELR-36 Retrofit Kit for ED4000, ED5000 Series Exit devices, 36 Inch Devices, Rail Assembly, No Switches, No Latch, with Controller, Touch bar End Cap

The Corbin Russwin CRMELR-36 is a motorized electric latch retraction (MELR) retrofit kit engineered for ED4000 and ED5000 Series exit devices installed on 36-inch openings. This kit converts an existing mechanical exit device into an electrically controlled one, allowing remote latch retraction for access control, automatic operators, and secured entry applications. The assembly ships as a complete rail package with an integrated controller and touch bar end cap, giving installers everything needed to upgrade in the field without replacing the entire device. Built for reliable, high-cycle performance, it delivers quiet, low-current operation that pairs well with modern access control systems in commercial and institutional settings.

Features

• Motorized electric latch retraction retrofit kit for ED4000 and ED5000 Series exit devices.
• Sized specifically for 36-inch wide door openings.
• Includes a complete rail assembly for straightforward field installation.
• Supplied with an integrated controller for reliable electric operation.
• Comes with a touch bar end cap to complete the assembly.
• Configured without switches and without a latch, making it ideal for targeted upgrades.

Functional Details

The MELR system uses a low-current motor to retract the latch electrically, enabling remote unlocking and integration with automatic door operators or access control hardware. When signaled, the controller drives the motor to pull the latch back, allowing free passage until the device is de-energized and the latch returns to its secured position.

Included Components

This kit is supplied as a rail assembly with no switches and no latch, paired with a controller and a touch bar end cap for a complete retrofit package.
