Corbin Russwin DC6210-A1-M54 Surface Door Closer, Friction Hold Open, Push or Pull Side Mount

  • SKU: DC6210A1689M54

Corbin Russwin DC6210-A1-M54 Surface Door Closer, Friction Hold Open, Push or Pull Side Mount

  • SKU: DC6210A1689M54
Sale price$433.09/ea
In Stock
In Stock
Finish: 689 Aluminum

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Corbin Russwin DC6210-A1-M54 Surface ...
Quantity
+
Sale price$433.09
Corbin Russwin ED5200 Rim Exit Device...
Quantity
+
Sale priceFrom $1,105.78
Total

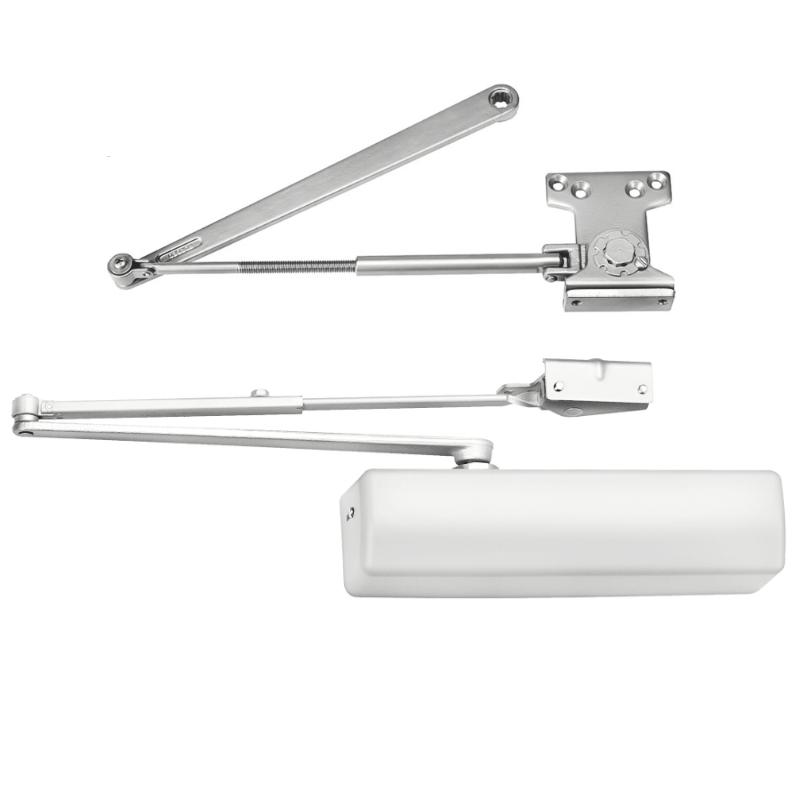

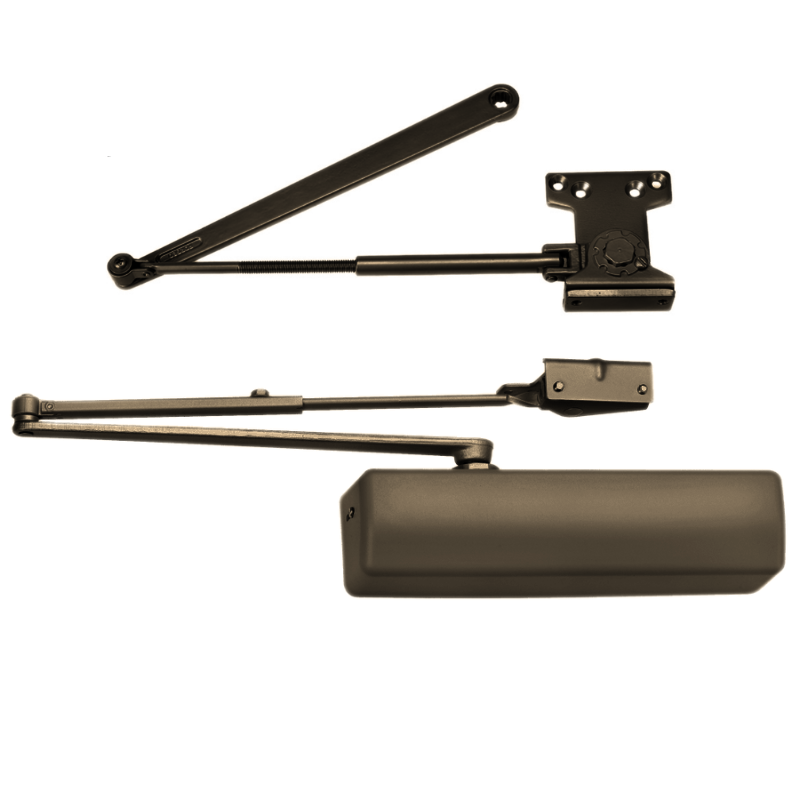

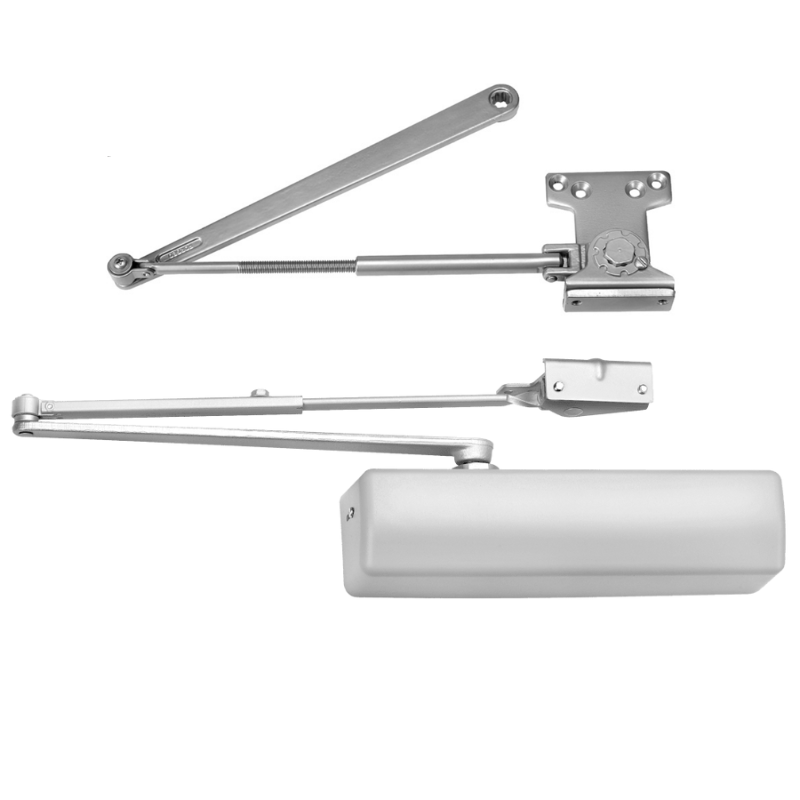

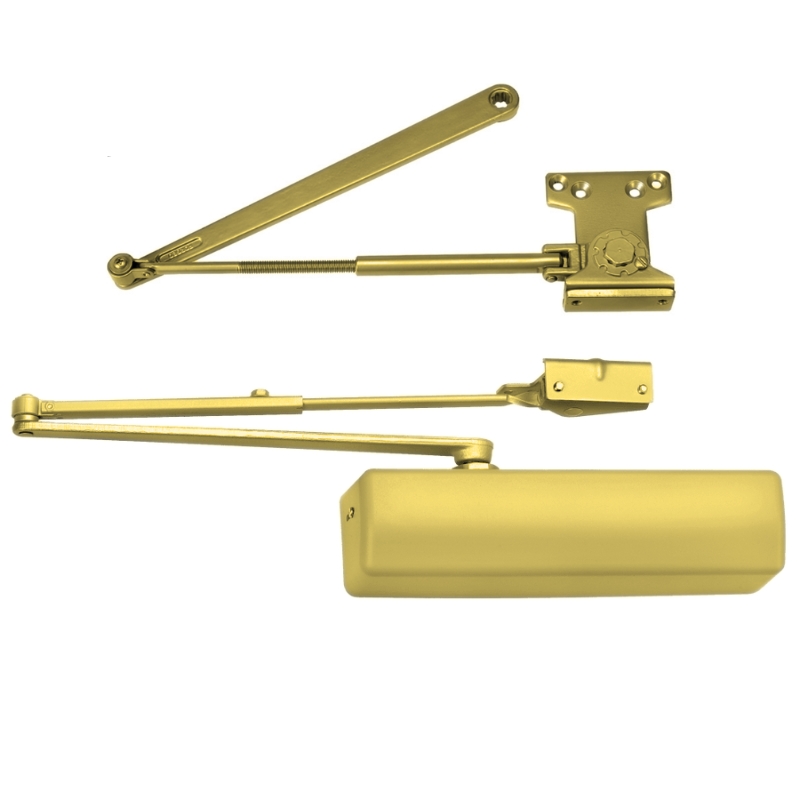

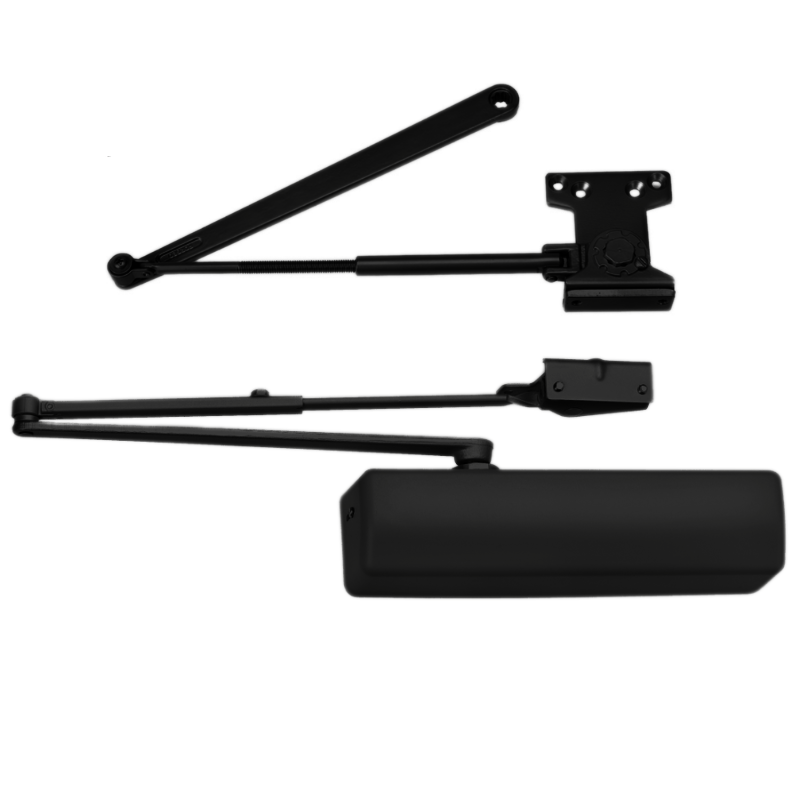

Corbin Russwin DC6210-A1-M54, Surface Door Closer, Double Lever Arm with Parallel Arm Bracket, Friction Hold Open, Push or Pull Side Mount, Size 1 to 6, Full Cover, Grade 1, Non-Handed

Corbin Russwin DC6210-A1-M54 Surface Door Closer features a double lever arm with parallel arm bracket and friction hold open functionality. This Grade 1 closer accommodates push or pull side mounting with adjustable Size 1-6 force. The non-handed design with full cover ensures versatile installation for commercial applications.

Fasteners Option: M54 Sex Nuts and Bolts (SNBs)

Arm Options

  • Regular Arm used with regular arm (pull side) and top jamb (push side) mounting
  • Parallel Arm Bracket mounted on the push side.
  • Non-hold open arm – combines regular arm with parallel arm mounting bracket.
  • Hold open arm optional, specify closer x A1

DC6000 Series Door Closers

A variety of features makes this the choice for retrofitting, quick installation, and longevity.

 Corbin Russwin offers a wide variety of arms, tracks, and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.

  • Spring Power DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.
  • Handing Non-handed (with the exception of some arms and accessories).
  • Body Cast-iron case with seamless cold-headed steel spring tube.
  • Arm Standard: forged steel. Arm options pages 8-10.
  • Spindle Heat-treated steel with a crowned gear set for increased efficiency.
  • Piston 1-3/8" diameter; precision machined, heat-treated steel.
  • Springs Chrome silicon wire.
  • UL / ULC / UL10c Listed for fire and cycle requirements.
  • 15 Million Cycles Witnessed and verified by UL
Manufacturer Corbin Russwin
SKU DC6210 A1 M54
Grade Grade1
Unit of Measure Each
Installation  Commercial
Fire Rating 3 Hours {A}
Limited Warranty 25 Years
Base Material Varies
Handing Non-Handed
Type  Surface
Mounting Group Hydraulic
Mounting Location Push or Pull Side
Mounting Style Tri Mount
Hold Open  Yes
Back Check Adjustable
Cold Weather Fluid Yes
Special Rust Inhibitor No
Delay No
Degree Swing 180 Deg.
Cover Full
Drop Plate Available
Through Bolts Yes
Arm Type Double Lever Arm, with PA Bracket
Cement Case No
Screw Type Self-Tapping
Voltage Mechanical
Spacer Available
Bracket Available
Sealed Closer Yes
Physically Handicap  Yes
