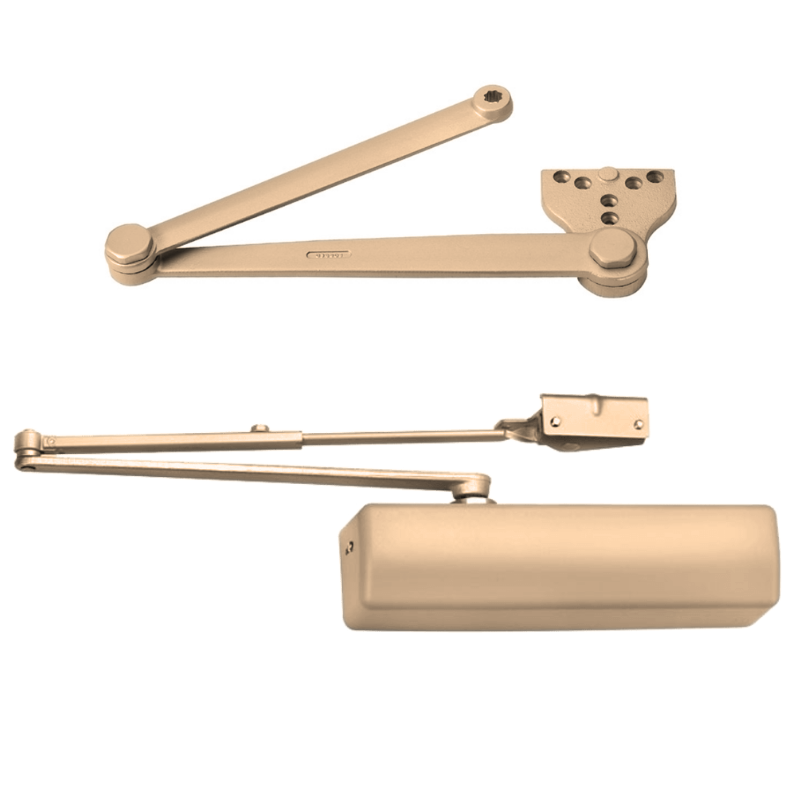

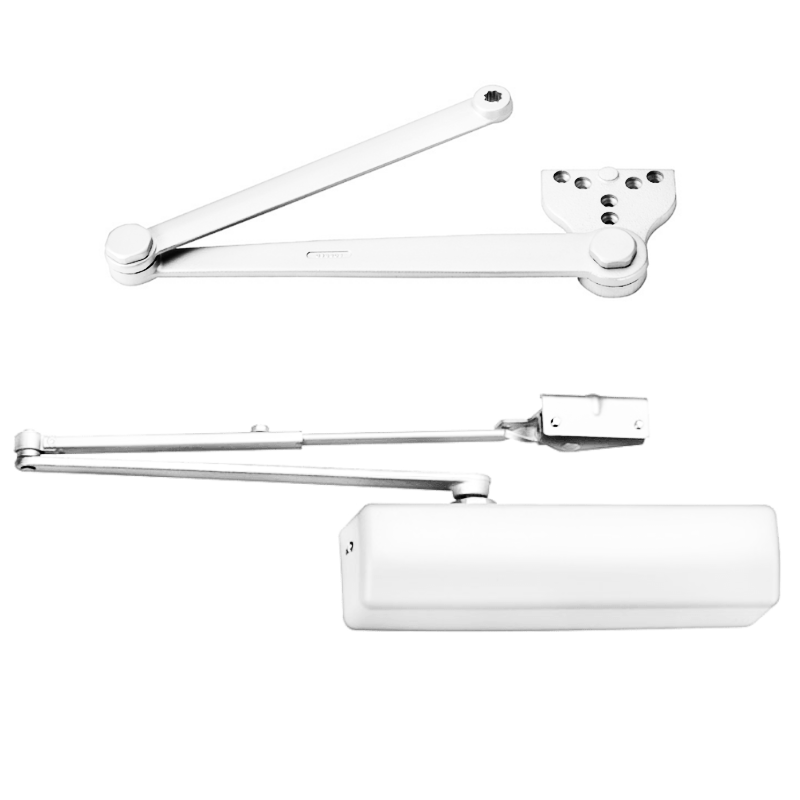

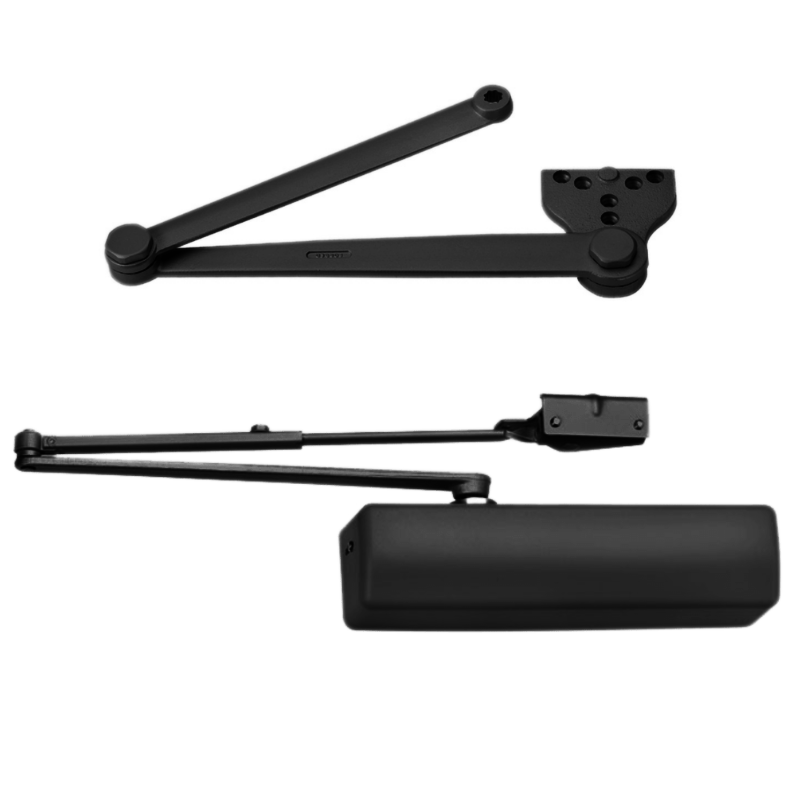

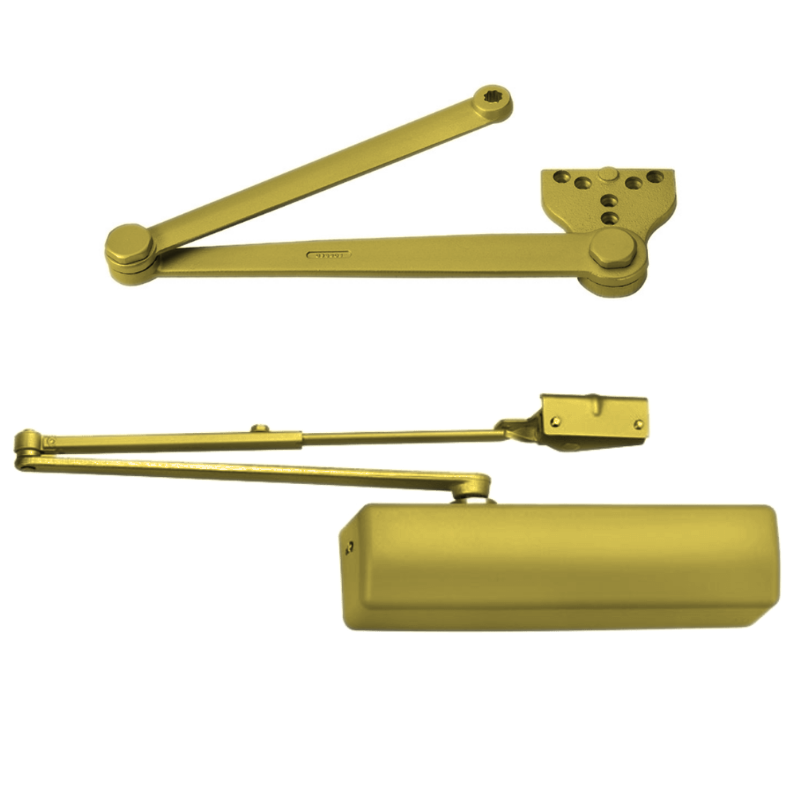

Corbin Russwin DC6210-A3-M71-M54 Surface Door Closer, Delayed Action, Heavy Duty Parallel Arm, Push Side Mount, Size 1 to 6, Full Cover, Grade 1, Non-Handed
Corbin Russwin DC6210-A3-M71-M54 delivers professional-grade door control with delayed action functionality. This Grade 1 surface closer features a heavy duty parallel arm configuration for push side mounting. Its non-handed design accommodates size 1-6 applications and includes a full cover for a refined appearance.
Fasteners Option: M54 Sex Nuts and Bolts (SNBs)
Delayed action valve option: M71 Delayed action preset for 20 seconds. Between 90° and 70° for all mountings.
Arm Options
- Recommended for high-use, high-abuse environments
- Tamper-resistant, solid forged steel riveted arm
-
Mounted on push side
- Non-hold open arm, specify closer x A3 Arm
DC6000 Series Door Closers
A variety of features makes this the choice for retrofitting, quick installation, and longevity.
Corbin Russwin offers a wide variety of arms, tracks, and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.
- Spring Power DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.
- Handing Non-handed (with the exception of some arms and accessories).
- Body Cast-iron case with seamless cold-headed steel spring tube.
- Arm Standard: forged steel. Arm options pages 8-10.
- Spindle Heat-treated steel with a crowned gear set for increased efficiency.
- Piston 1-3/8" diameter; precision machined, heat-treated steel.
- Springs Chrome silicon wire.
- UL / ULC / UL10c Listed for fire and cycle requirements.
- 15 Million Cycles Witnessed and verified by UL
