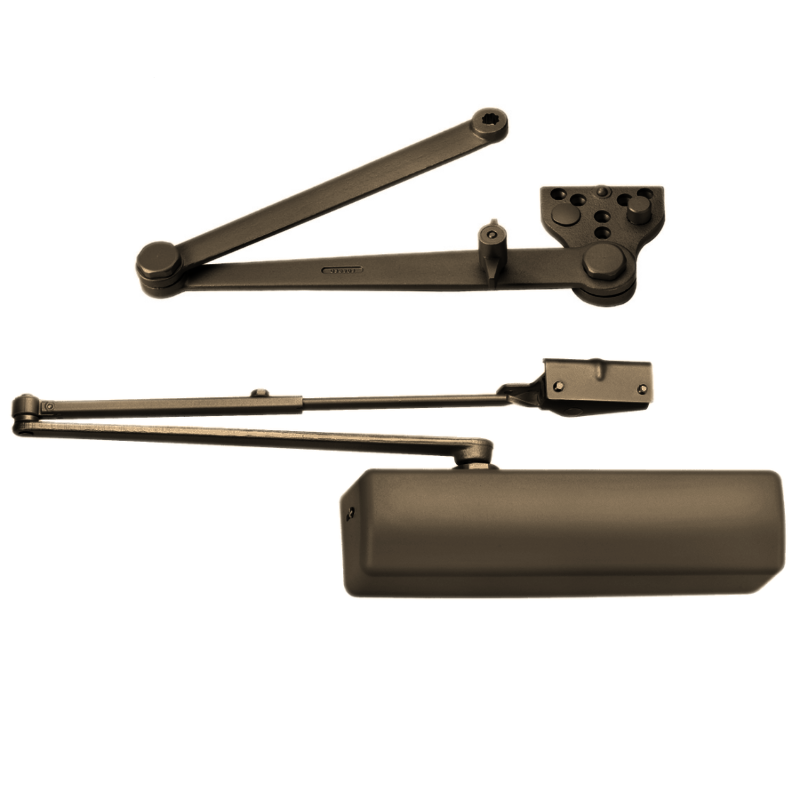

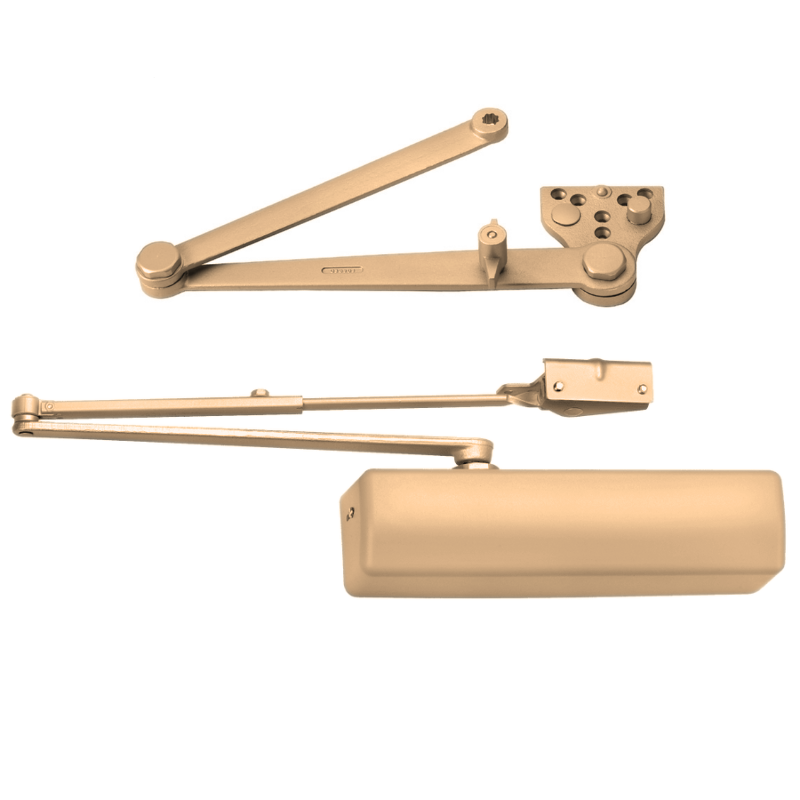

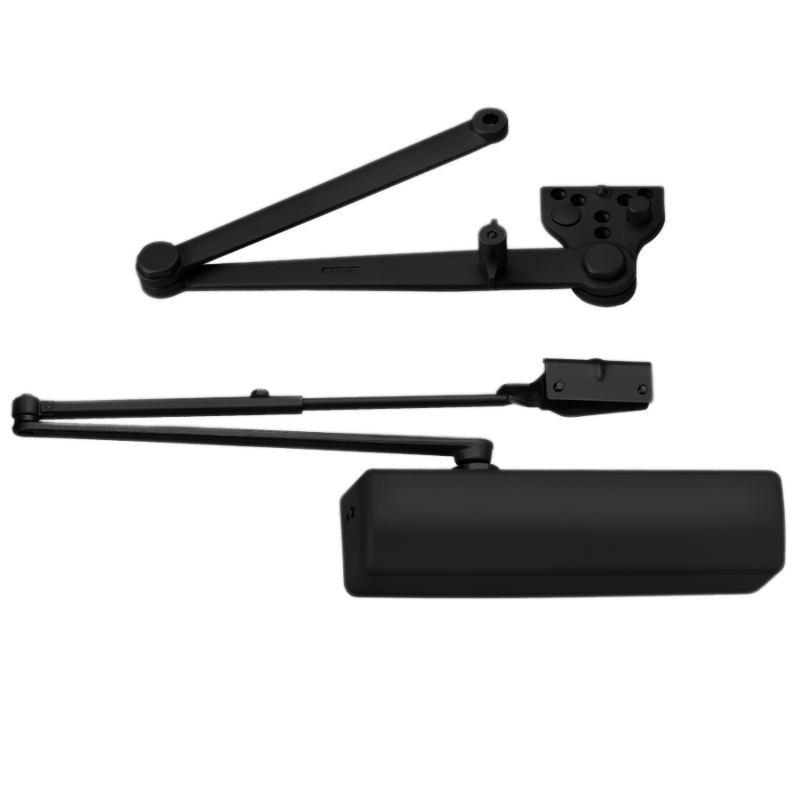

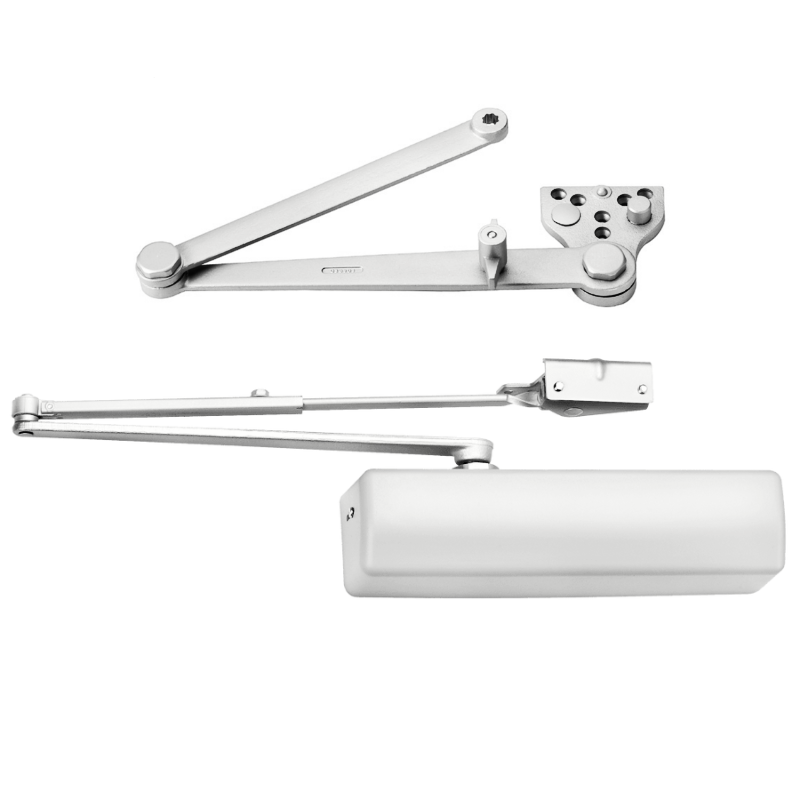

Corbin Russwin DC6210-A5-M71-M54, Surface Door Closer, Delayed Action, Heavy-Duty Backstop With Hold Open, Push Side Mount, Size 1 to 6, Full Cover, Grade 1, Non-Handed
The Corbin Russwin DC6210-A5-M71-M54 is a heavy-duty surface door closer designed with a delayed action feature, push side mount, and full cover for sizes ranging from 1 to 6. It has a Grade 1 rating and is non-handed, making it a reliable and versatile choice for any commercial setting.
Fasteners Option: M54 Sex Nuts and Bolts (SNBs)
Delayed action valve option: M71 Delayed action preset for 20 seconds. Between 90° and 70° for all mountings.
Arm Options
- Recommended for high-use, high-abuse environments
- Tamper-resistant, solid forged steel riveted arm
- Mounted on push side
- Field-reversible steel lug restricts degree of opening to protect door, wall and hardware
- Shipped standard as left hand. Handing can be reversed in the field
- Non-hold open arm, specify closer x A4. Door stop range 85° to 110°
- Hold open arm, specify closer x A5*. Door stop/hold open range 85° to 110°
DC6000 Series Door Closers
A variety of features makes this the choice for retrofitting, quick installation, and longevity.
Corbin Russwin offers a wide variety of arms, tracks, and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.
- Spring Power DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.
- Handing Non-handed (with the exception of some arms and accessories).
- Body Cast-iron case with seamless cold-headed steel spring tube.
- Arm Standard: forged steel. Arm options pages 8-10.
- Spindle Heat-treated steel with a crowned gear set for increased efficiency.
- Piston 1-3/8" diameter; precision machined, heat-treated steel.
- Springs Chrome silicon wire.
- UL / ULC / UL10c Listed for fire and cycle requirements.
- 15 Million Cycles Witnessed and verified by UL
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | DC6210 A5 M71 M54 |
| Grade | Grade1 |
| Unit of Measure | Each |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Limited Warranty | 25 Years |
| Base Material | Varies |
Technical Specs
| Handing | Non-Handed |
| Type | Surface |
| Mounting Group | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Tri Mount |
| Hold Open | Yes |
| Back Check | Adjustable |
| Cold Weather Fluid | Yes |
| Special Rust Inhibitor | No |
| Delay | Yes |
| Degree Swing | 180 Deg. |
| Cover | Full |
| Drop Plate | Available |
| Through Bolts | Yes |
| Arm Type | Heavy Duty Backstop Arm |
| Cement Case | No |
| Screw Type | Self-Tapping |
| Voltage | Mechanical |
| Spacer | Available |
| Bracket | Available |
| Sealed Closer | Yes |
| Physically Handicap | Yes |
