Description
Corbin Russwin Door Closers DC8210
DC 8210 Corbin Russwin Door Closers are surface door closers. They have a double lever arm with a PA bracket. They also have a push or pull side mount.
Choose from size 1 to 6. These Corbin Russwin door closers are non-handed and Grade 1.
The DC 8210 door closer is part of the Corbin Russwin DC8000 Series.
DC8000 Series Door Closers
Grade 1 closer that meets ADA requirements.
The DC8000 offers added muscle for high-use and high-abuse situations. Captured valves and optional Torx® security screws offer added security, making them closer highly vandal- and tamper-resistant.
- Heavy-duty forged arm
- Multi-sized (1 through 6)
- Captured valves
- Self-drilling screws
- Double heat-treated steel pinion
- Universal Quik-Install™ bracket
- Optional Tri-packed arm assembly
- Cast-iron closer body
- Retrofit plates allow direct retrofit of competitor's product

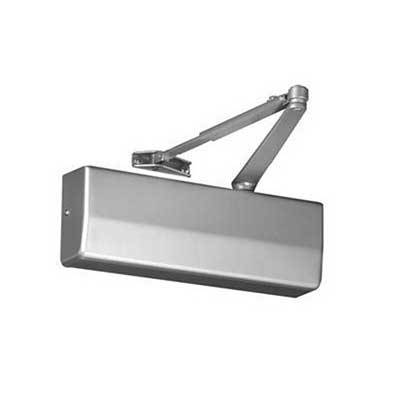

DC 8210 Corbin Russwin Door Closers Image
Product Specs
| Manufacturer | Corbin Russwin |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | VARIES |
| Limited Warranty | 25 Years |
| Fire Rated |
3 Hours {A} |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Arm Type | Double Lever Arm with PA Bracket |
| Hand | Non-Handed |
| Degree Swing | 180 Deg. |
| Back Check | Adjustable |
| Cover | Full |
| Cement Case | No |
| Screw Type | Self Tapping |
| Through Bolts | No |
| Voltage | Mechanical |
| Spacer | Available |
| Bracket | Available |
| Drop Plate | Available |
| Special Rust Inhibitor | No |
| Sealed Closer | Yes |
| Physically Handicapped | Yes |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
