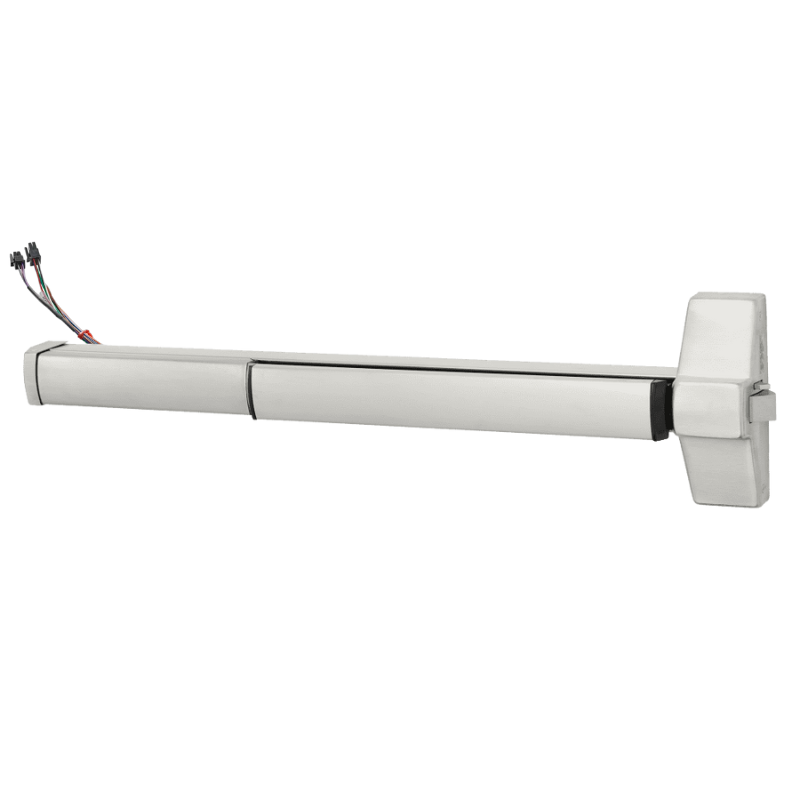

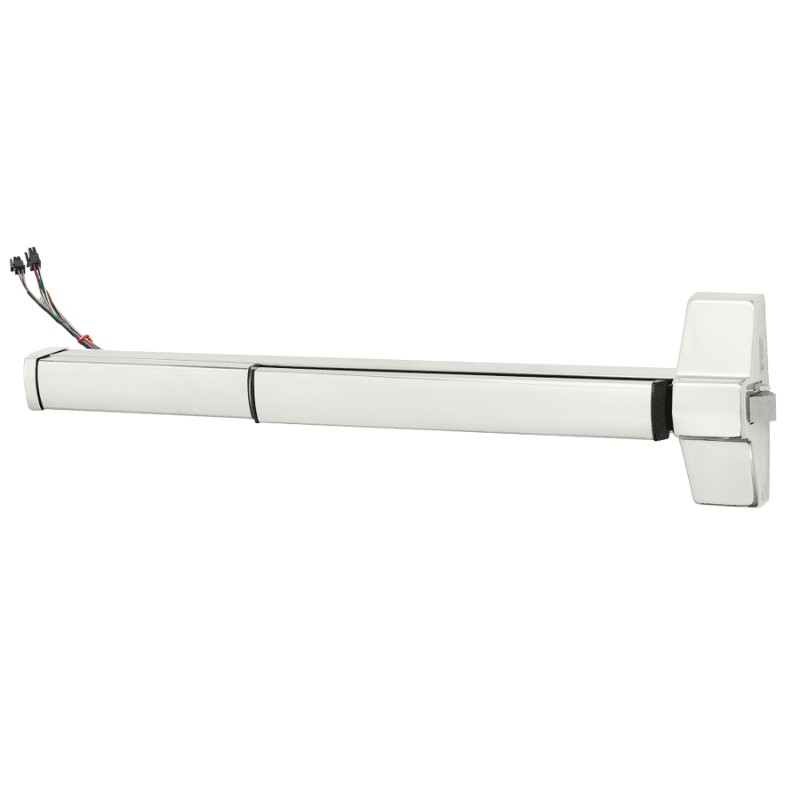

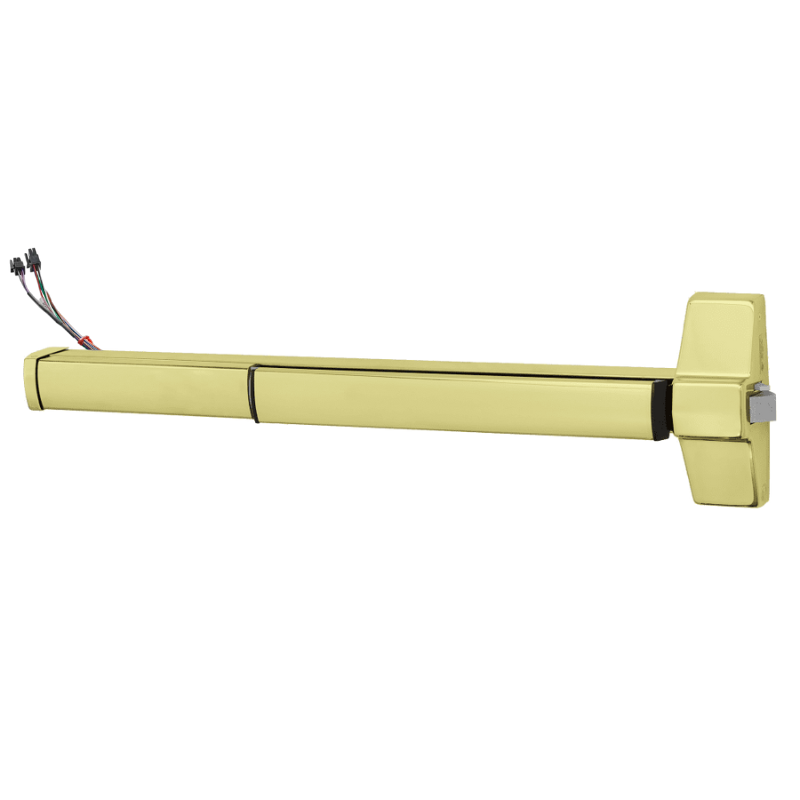

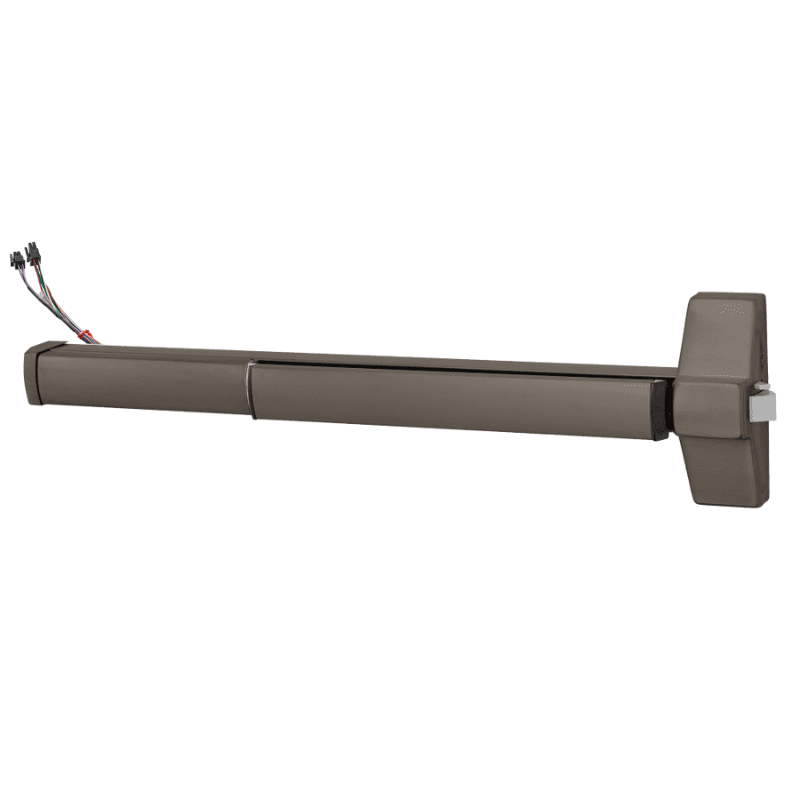

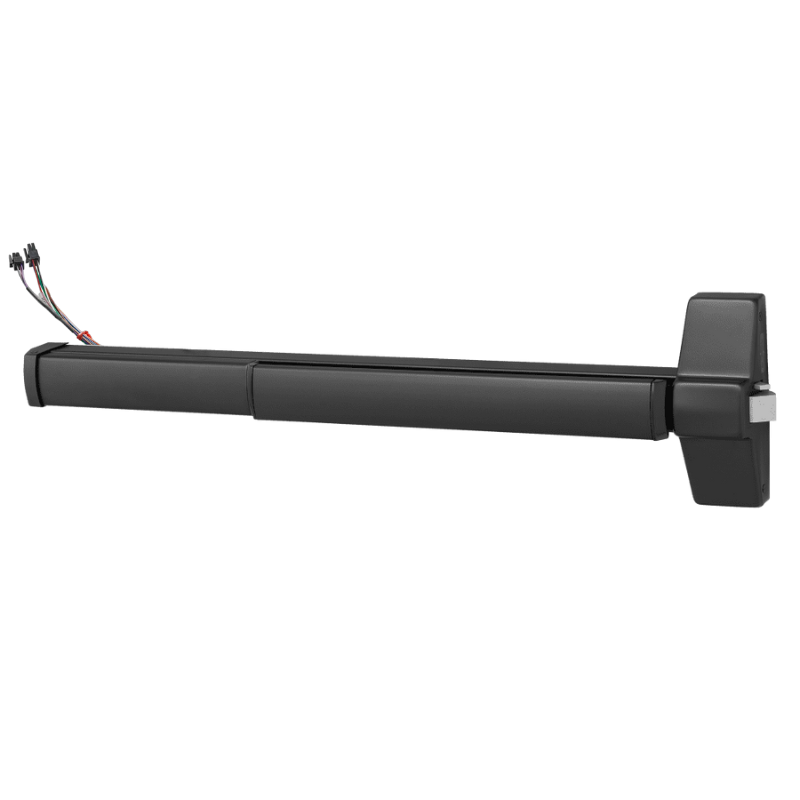

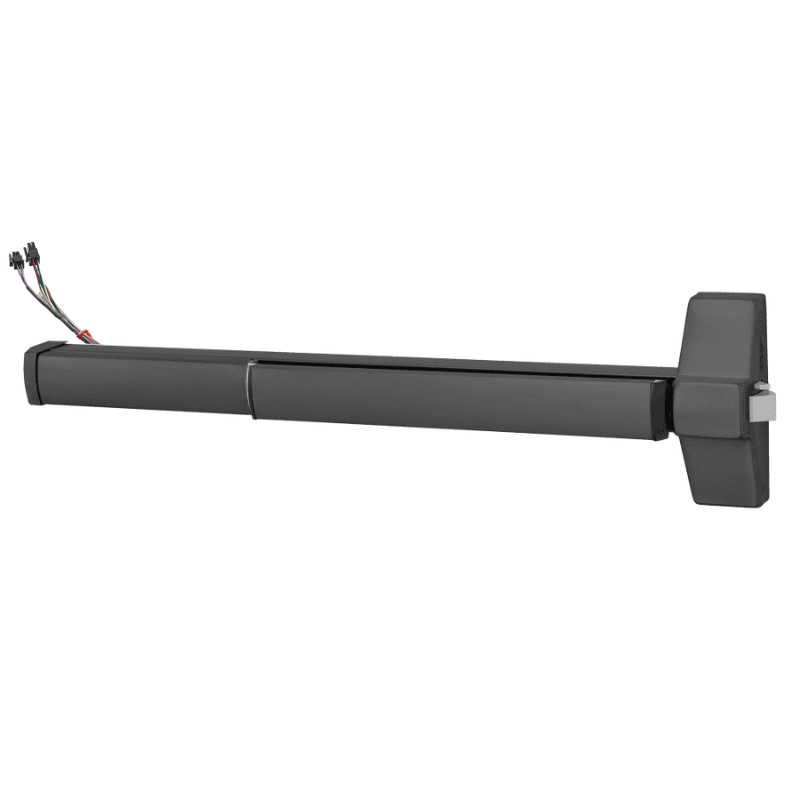

Corbin Russwin ED5200-36-MELR-M51 Rim Exit Device, Motorized Latch Retraction, Exit Only, 30-36" Dr Width, Less Dogging, Grade 1, Non Handed
The Corbin Russwin ED5200-36-MELR-M51 features advanced motorized latch retraction technology in a Grade 1 rim exit device. Designed for 30-36" door widths, this non-handed, exit-only solution operates without dogging capability. Engineered for high-security commercial applications requiring reliable egress control.
- Heavy Duty – ANSI/BHMA Grade-1 Certified
- Exit Only
- Trim Sold Separately. See Frequently Bought Together above
- Rim Exit Device for doors 30" - 36" in width
-
Electric Latch Retraction - MELR
The Motorized Electric Latch Retraction (MELR) exit device provides remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit assemblies for field updates, the MELR features maintenance-free design with few
moving parts using 86% less power consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.
-
M51: Less dogging, specify M51
It is among the most durable exit devices on the market, with additional security options.
The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in the rim, mortise, surface vertical rod, and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5-year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
