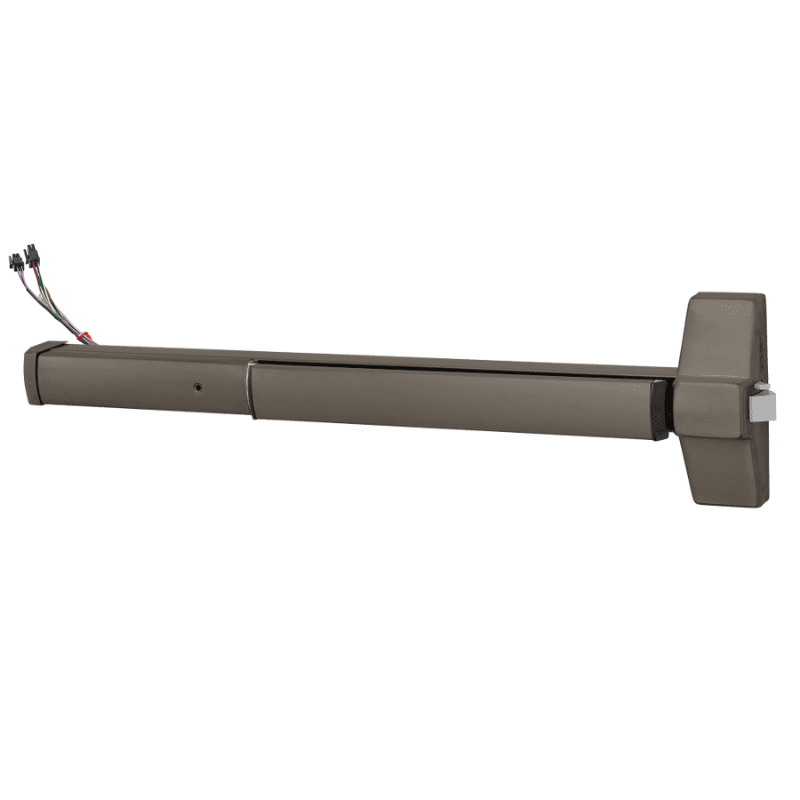

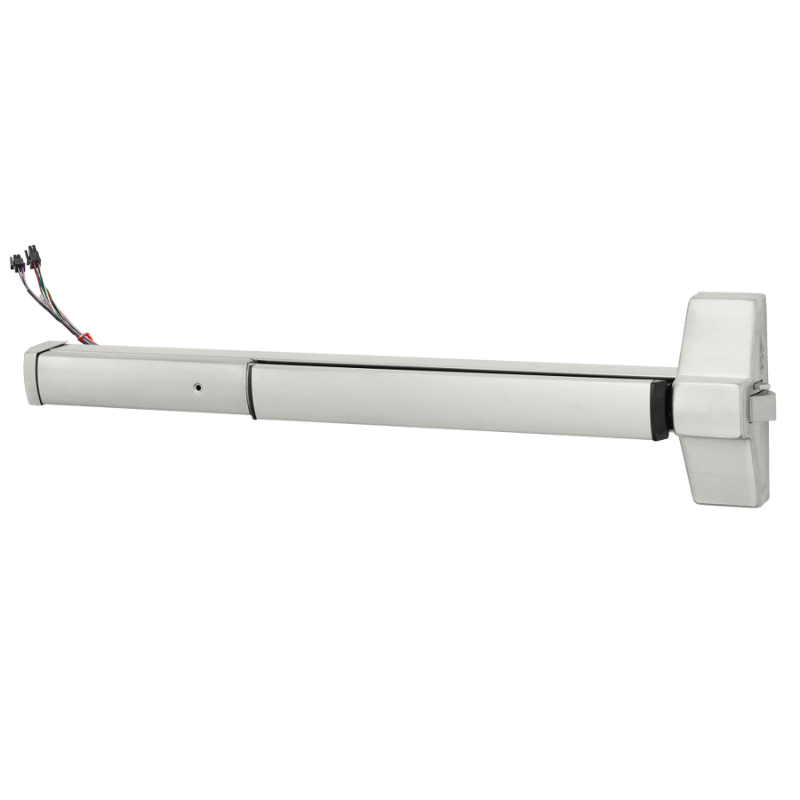

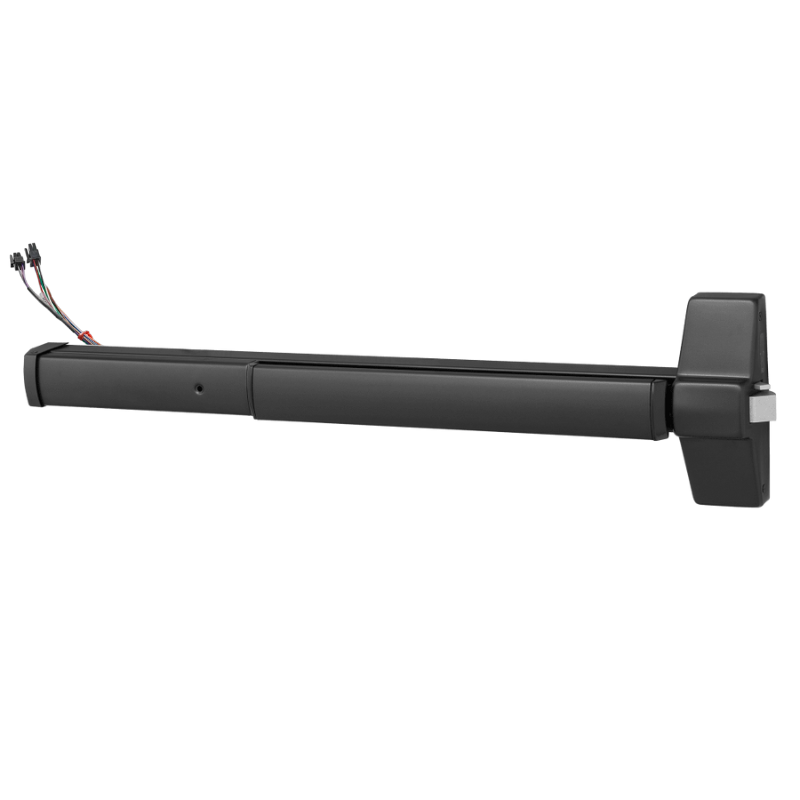

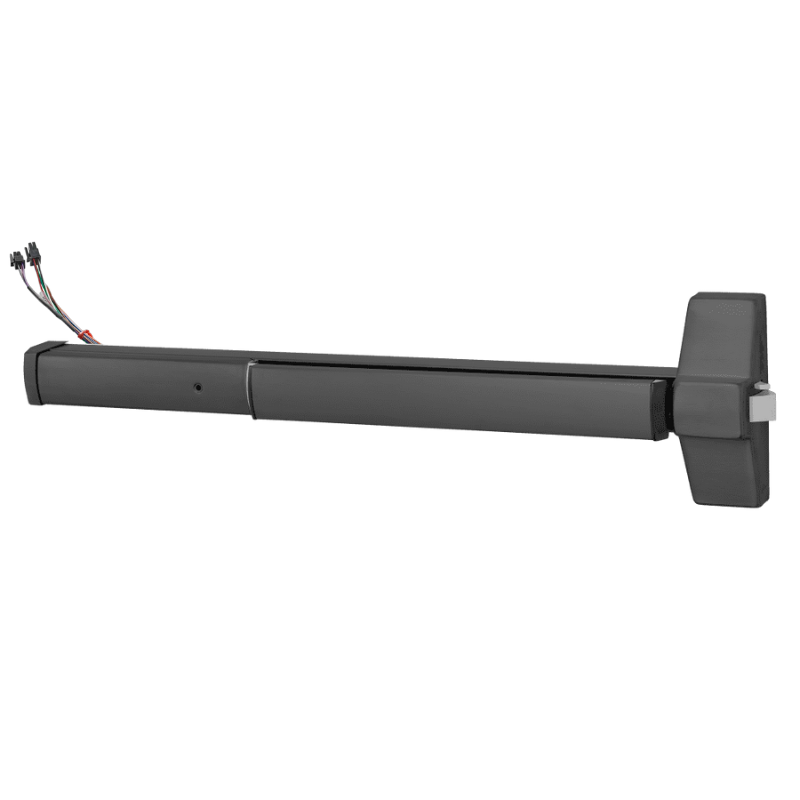

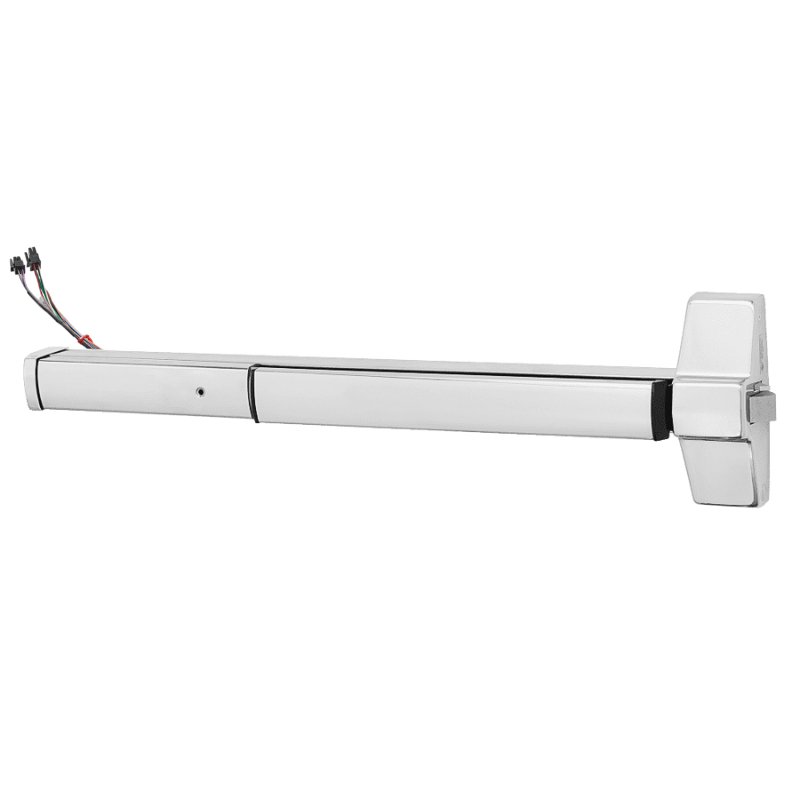

Corbin Russwin ED5200-36-MELR-M91 Rim Exit Device, Motorized Latch Retraction, Bolt Position Monitoring, Exit Only, 30-36" Dr Width, Hex Key Dogging, Grade 1, Non Handed

The Corbin Russwin ED5200-36-MELR-M91 Rim Exit Device features advanced motorized latch retraction technology with integrated bolt position monitoring. Designed for 30-36" door widths in exit-only configurations, this Grade 1 non-handed device includes hex key dogging functionality. Engineered for professional security applications requiring reliable performance and monitoring capabilities.

• Heavy Duty – ANSI/BHMA Grade-1 Certified
• Exit Only
• Trim Sold Separately. See Frequently Bought Together above
• Rim Exit Device for doors 30" - 36" in width
• Electric Latch Retraction - MELR
  The Motorized Electric Latch Retraction (MELR) exit device provides remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit assemblies for field updates, the MELR features maintenance-free design with few
  moving parts using 86% less power consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.

• Bolt Position Monitor M91: SPDT (Single Pole Double Throw) switch that monitors the position of the latchbolt or vertical rods. To order, specify M91.

ED5200 Series Pushpad Exit Devices

It is among the most durable exit devices on the market, with additional security options.

The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.

• Modular construction, maintenance-free design
• Available in the rim, mortise, surface vertical rod, and concealed vertical rod
• Complete offering of electro-mechanical solutions
• Available with Microshield® antimicrobial coating
• Made from 61% post-consumer recycled content as per LEED MR credit 4
• 5-year warranty
• Available with Museo® decorative levers and 13 architectural finishes
• Environmental Product Declaration (EPD) certified
