Corbin Russwin ED5200-48-M91 Rim Exit Device, Bolt Position Monitoring, 36-48" Dr Width, Exit Only

  • SKU: ED520048630M91

Corbin Russwin ED5200-48-M91 Rim Exit Device, Bolt Position Monitoring, 36-48" Dr Width, Exit Only

  • SKU: ED520048630M91
Sale price$1,291.18/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Corbin Russwin ED5200-48-M91 Rim Exit...
Quantity
+
Sale priceFrom $1,291.18
Corbin Russwin N9 Trims for ED5000 Ex...
Quantity
+
Sale priceFrom $520.14
Corbin Russwin Rim Cylinders - Multip...
Quantity
+
Sale price$123.50
Corbin Russwin DC6210-M54 Surface Doo...
Quantity
+
Sale priceFrom $319.17
Total

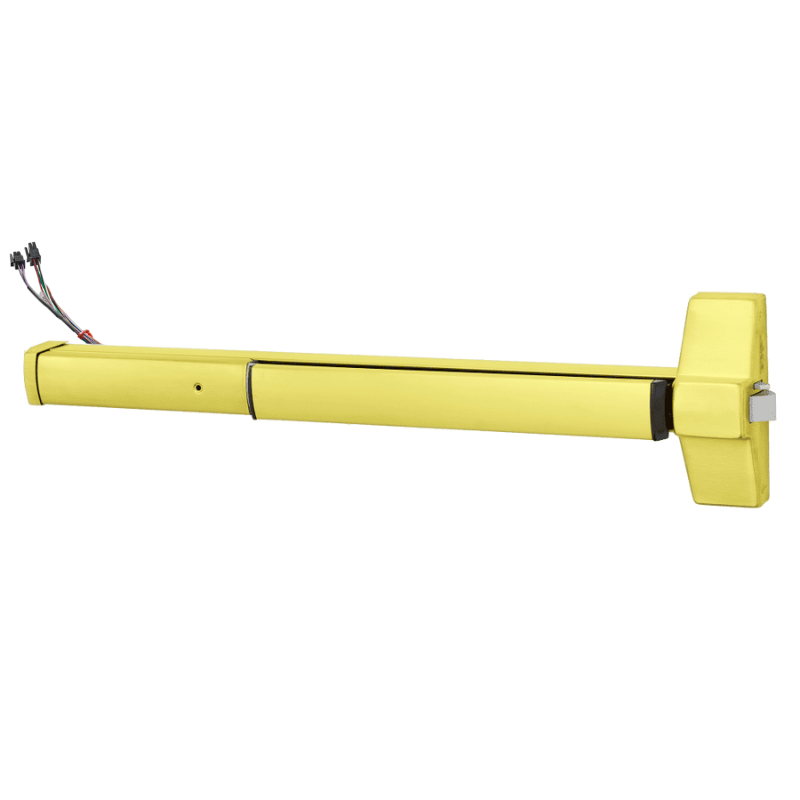

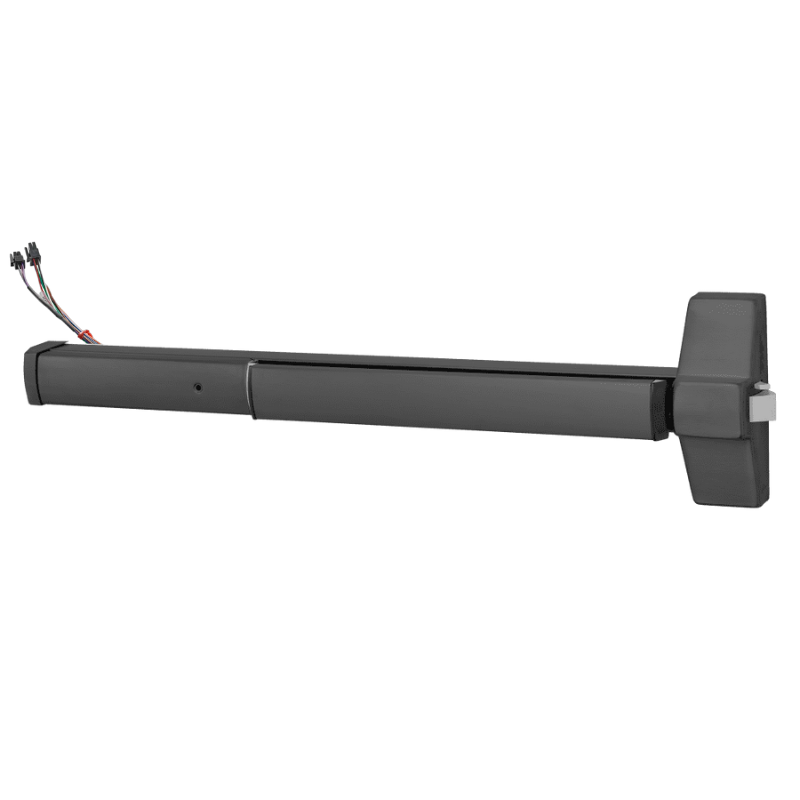

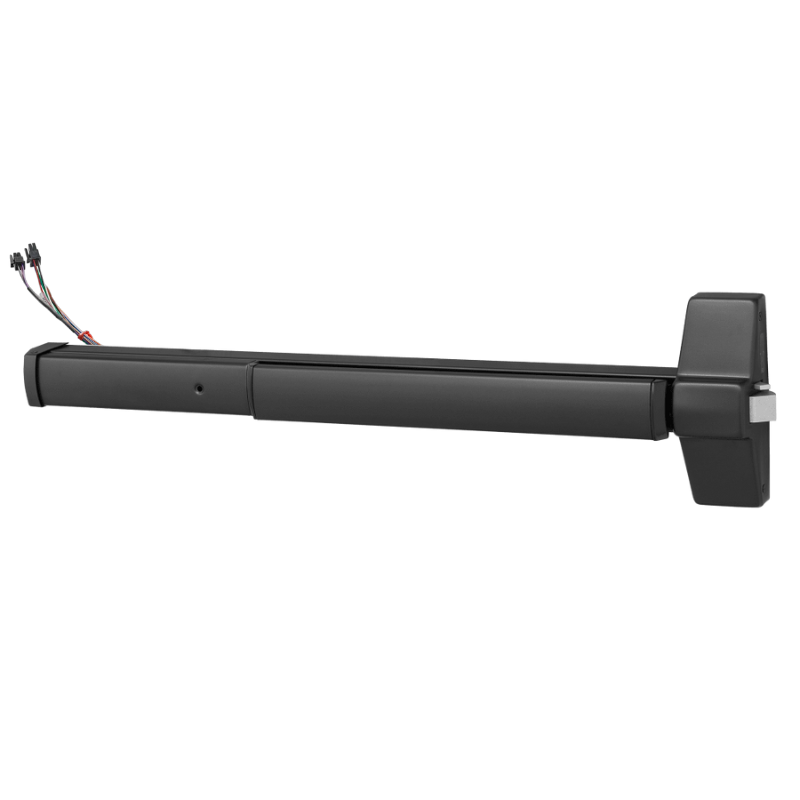

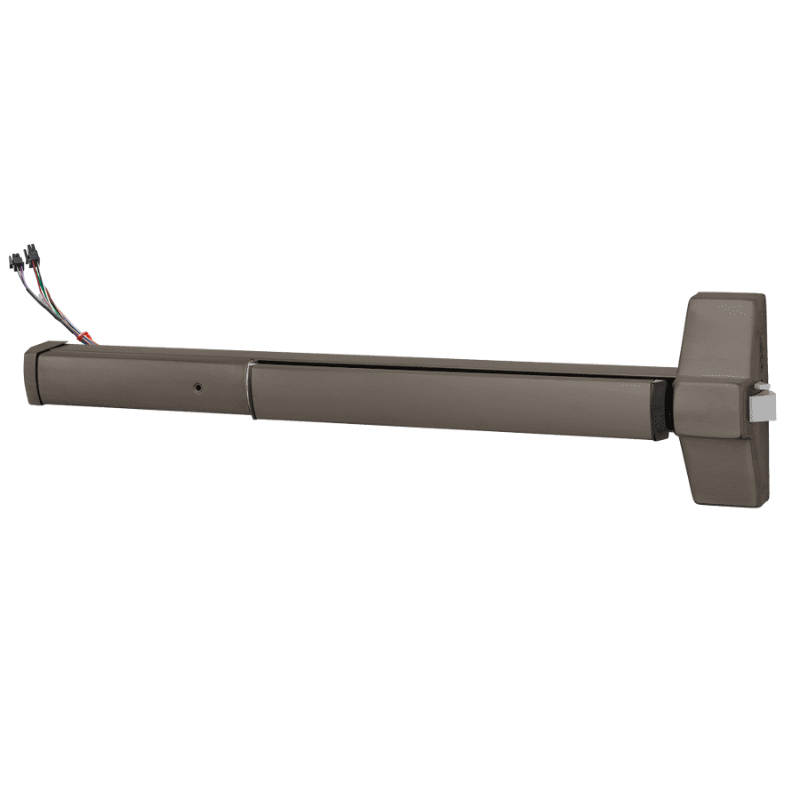

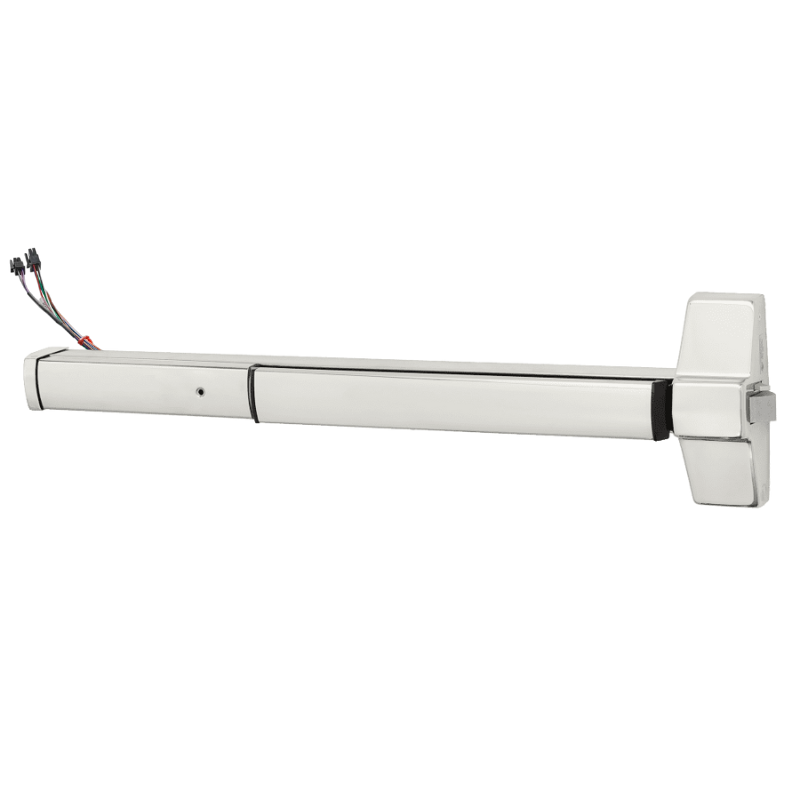

Corbin Russwin ED5200-48-M91 Rim Exit Device, Bolt Position Monitoring, Exit Only, 36-48" Dr Width, Hex Key Dogging, Grade 1, Non Handed

Corbin Russwin ED5200-48-M91 Rim Exit Device features Bolt Position Monitoring functionality for enhanced security monitoring. This Grade 1, non-handed exit-only device accommodates door widths from 36-48 inches and includes hex key dogging. Designed for commercial applications requiring reliable egress control.

  • Heavy Duty – ANSI/BHMA Grade-1 Certified
  • Exit Only
  • Trim Sold Separately. See Frequently Bought Together above
  • Rim Exit Device for doors 36" - 48" in width
  • Bolt Position Monitor M91: SPDT (Single Pole Double Throw) switch that monitors the position of the latchbolt or vertical rods.

ED5200 Series Pushpad Exit Devices

It is among the most durable exit devices on the market, with additional security options.

The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.

  • Modular construction, maintenance-free design
  • Available in the rim, mortise, surface vertical rod, and concealed vertical rod
  • Complete offering of electro-mechanical solutions
  • Available with Microshield® antimicrobial coating
  • Made from 61% post-consumer recycled content as per LEED MR credit 4
  • 5-year warranty
  • Available with Museo® decorative levers and 13 architectural finishes
  • Environmental Product Declaration (EPD) certified
Vendor Assa Abloy
Manufacturer Corbin Russwin
SKU ED5200-48-M91
Grade Grade 1
Installation Commercial
Unit of Measure Each
Base Material Stainless Steel
Limited Warranty 5 Years



Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only, Accepts Trim
Device Length 48"
Hand Non-Handed
Dogging Options Hex Key Dogging
Includes Trim No
Includes Cylinder(s) No
Minimum Stile Size 4-1/2 In.
Door Material Metal or Wood
Door Width 36 In. - 48 In.
Door Thickness 1 3/4 In.
Fire Rated No
Product Type Rim Exit Devices

    Panic Handing Chart
