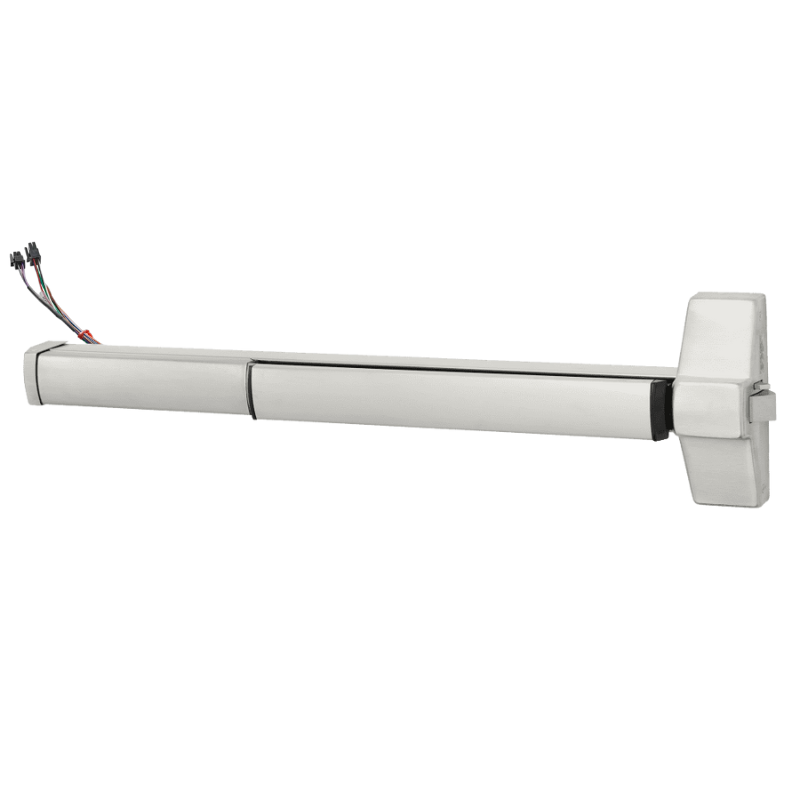

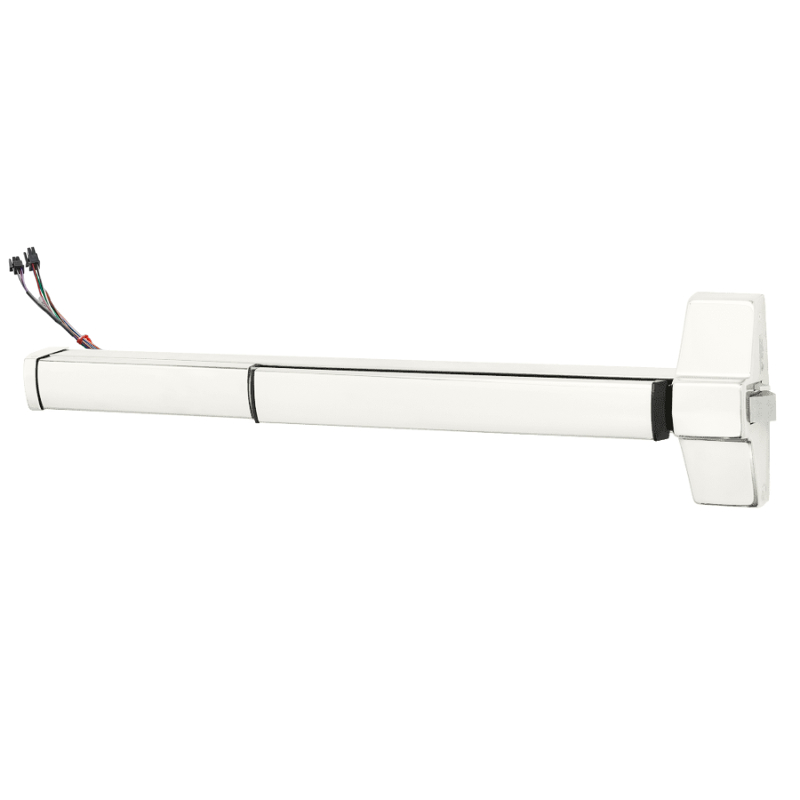

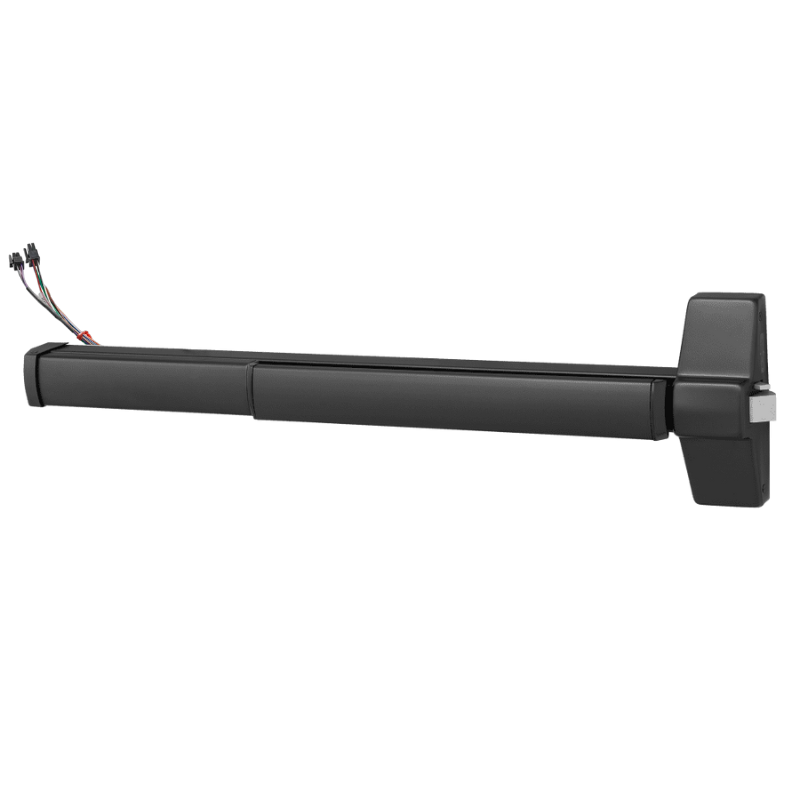

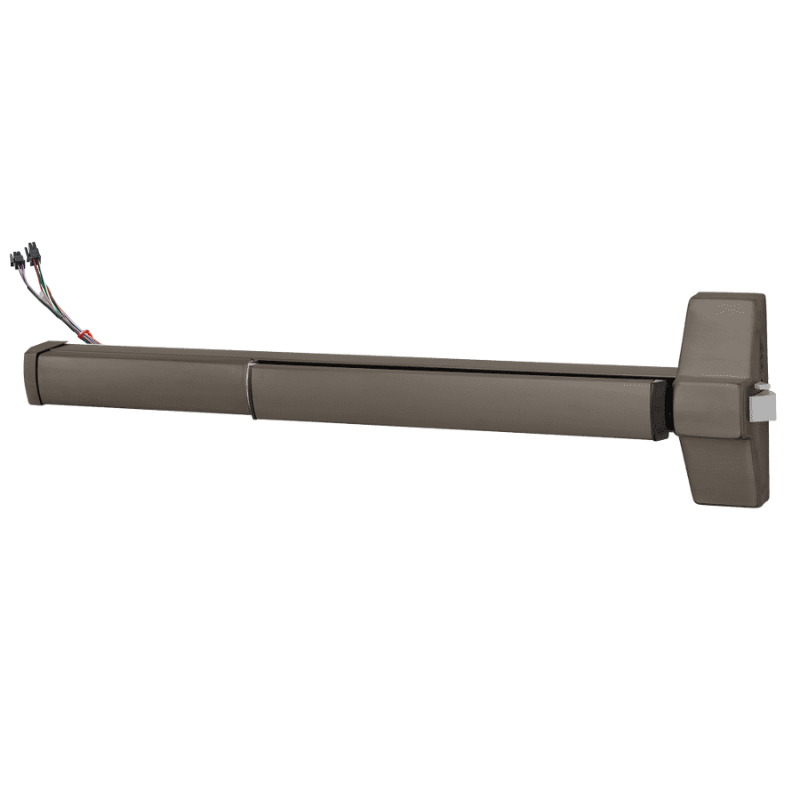

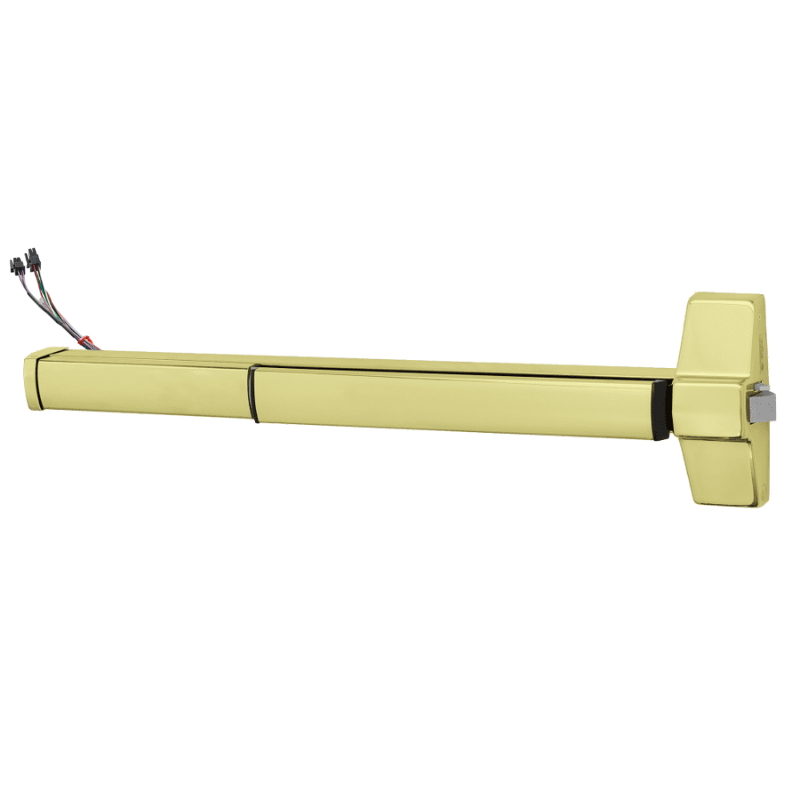

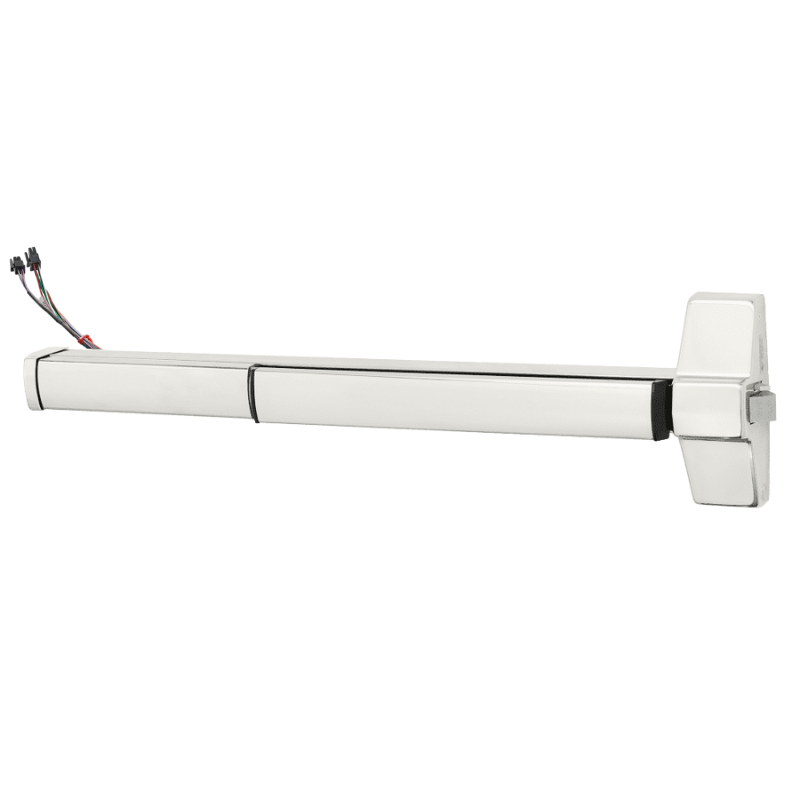

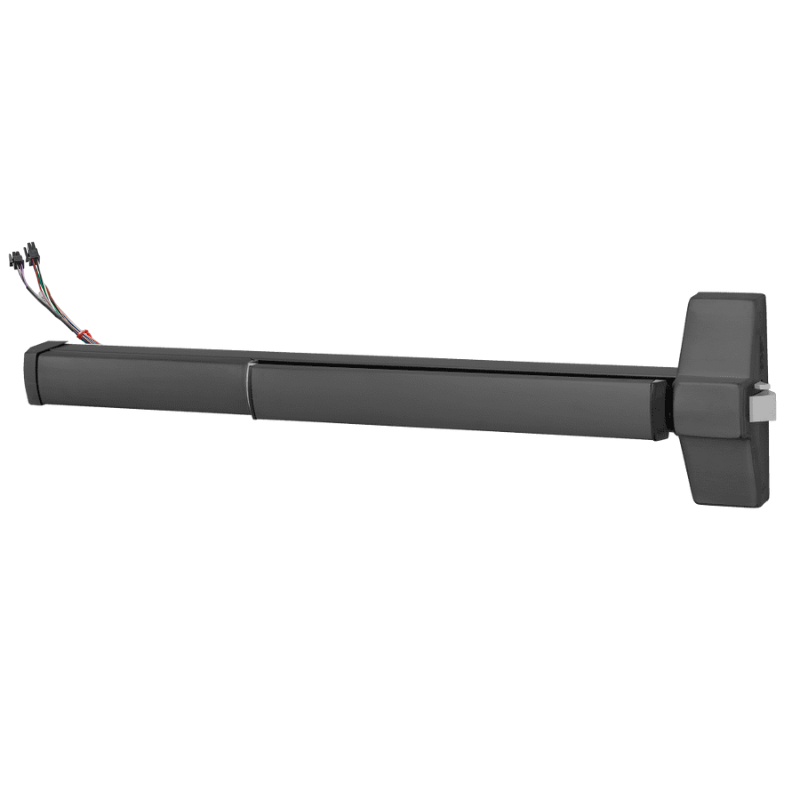

Corbin Russwin ED5200-A-36-MELR-M92 Fire Rated Rim Exit Device, Motorized Latch Retraction, Request To Exit, Exit Only, 30-36" Dr Width, Less Dogging, Grade 1, Non Handed

The Corbin Russwin ED5200A-36-MELR-M92 is a premium Grade 1 fire-rated rim exit device featuring motorized latch retraction with request-to-exit functionality. Designed for 30-36" door widths, this non-handed, exit-only device operates without dogging capability. Engineered for critical applications requiring superior security and fire safety compliance.

• Heavy Duty – ANSI/BHMA Grade-1 Certified
• Exit Only
• Trim Sold Separately. See Frequently Bought Together above
• Rim Exit Device for doors 30" - 36" in width
• Electric Latch Retraction - MELR
  The Motorized Electric Latch Retraction (MELR) exit device provides remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit assemblies for field updates, the MELR features maintenance-free design with few
  moving parts using 86% less power consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.

• Touchbar Monitoring - M92
  Request to Exit - REX
  This indicator indicates that the push pad is being depressed. It is used to request exit to shunt alarm systems, release electromagnetic locks, or monitor egress.
• Fire Rated

ED5200 Series Pushpad Exit Devices

It is among the most durable exit devices on the market, with additional security options.

The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.

• Modular construction, maintenance-free design
• Available in the rim, mortise, surface vertical rod, and concealed vertical rod
• Complete offering of electro-mechanical solutions
• Available with Microshield® antimicrobial coating
• Made from 61% post-consumer recycled content as per LEED MR credit 4
• 5-year warranty
• Available with Museo® decorative levers and 13 architectural finishes
• Environmental Product Declaration (EPD) certified
