Detex ECL-230X-TB Two Point Deadbolt Exit Control Lock

  • SKU: ECL230XTB

Detex ECL-230X-TB Two Point Deadbolt Exit Control Lock

  • SKU: ECL230XTB
Sale price$1,312.00/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

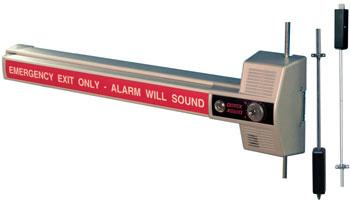

DETEX ECL-230X-TB Two Point Deadbolt Exit Control Lock
The ECL-230X-TB is a code compliant, battery alarmed, rugged 2-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits.


  • Attack resistant design for maximum holding force
  • Proven durability and reliability at a reasonable price
  • Reduces employee and customer theft
  • 2-point, 3/4" throw top and bottom locks with just over 5/8" engagement with the strike
  • Saw resistant dead bolts
  • Corrosion resistant alloy lock body
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Surface/flush reversible strike
  • Easy to install
  • Time tested construction resists attack from the inside
  • Easy to see if the lights go out
  • Straight forward operation that everyone understands
  • Dead bolt lock -1" throw with just over 3/4" engagement with the frame
  • Saw resistant dead bolt
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
  • Durable steel plate with photo luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
  • Locking and unlocking the dead bolt always arms and disarms the alarm
  • Resetting the alarm can only be accomplished with a control key
  • Gray Finish (Std.)
  • English Push Plate Sign (Std.)


Door Types: Wood, Hollow Metal or Aluminum
Door Thickness: Fits standard 1-3/4" - 2-1/4"
Dimensions: One size fits 36"- 48" doors for code compliant acceptance
Trim Function: Exit Control Hardware
Handing: Non-Handed
Power: 9-volt battery (included)
Push Bar: 24" ECL-230X
Sound Pressure: 100 decibel alarm
Compliances: Meets ADA requirements
Warrenty: 10 Year Limited Manufacturers Warranty


Fire Rated:

UL Listed

CA State Fire Marshal:



Requirements for all Building Codes

Panic Handing Chart
