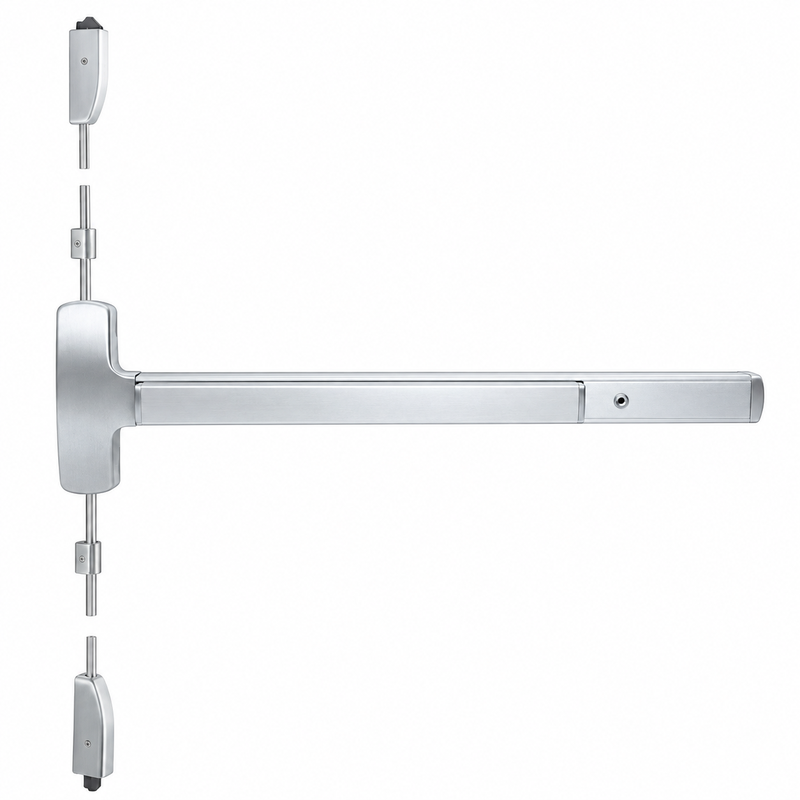

Falcon 25-V-EO-3, Wide Stile Pushpad, Exit Only, Less Trim, 36" Device, Hex Key Dogging, Grade 1, Right Hand Reverse

The Falcon 25-V-EO-3 is a Grade 1 wide stile surface vertical rod exit device built for reliable, high-traffic commercial openings. Configured as exit only with no outside trim, this 36" device suits doors up to 36 inches wide and ships in a right hand reverse orientation while remaining fully reversible in the field. It features hex key dogging, which lets you hold the pushpad in a depressed position for push-pull operation during business hours. With its durable construction and clean wide stile pushpad design, this device delivers dependable life-safety egress for storefronts, institutional entrances, and other demanding applications.

Features

• Wide stile pushpad design suited for aluminum, hollow metal, and wood doors.
• Surface vertical rod configuration for secure top and bottom latching.
• Exit only (no outside trim) for simple, dedicated egress.
• Fits doors up to 36 inches wide.
• Hex key dogging holds the latch retracted for free push-pull use.
• Field-reversible handing to adapt to either door orientation.
• Grade 1 rated for heavy-duty commercial service.

Functional Details

As an exit only device, the 25-V-EO-3 provides free egress from the inside with no outside operating trim. Depressing the pushpad retracts the vertical rod latches to release the door, while hex key dogging allows the pad to be held down for continuous push-pull operation.

• Exit Only (no outside trim)
• Hex key dogging retains the latch in the retracted position for push-pull function
• Surface mounted vertical rod with top and bottom latching
