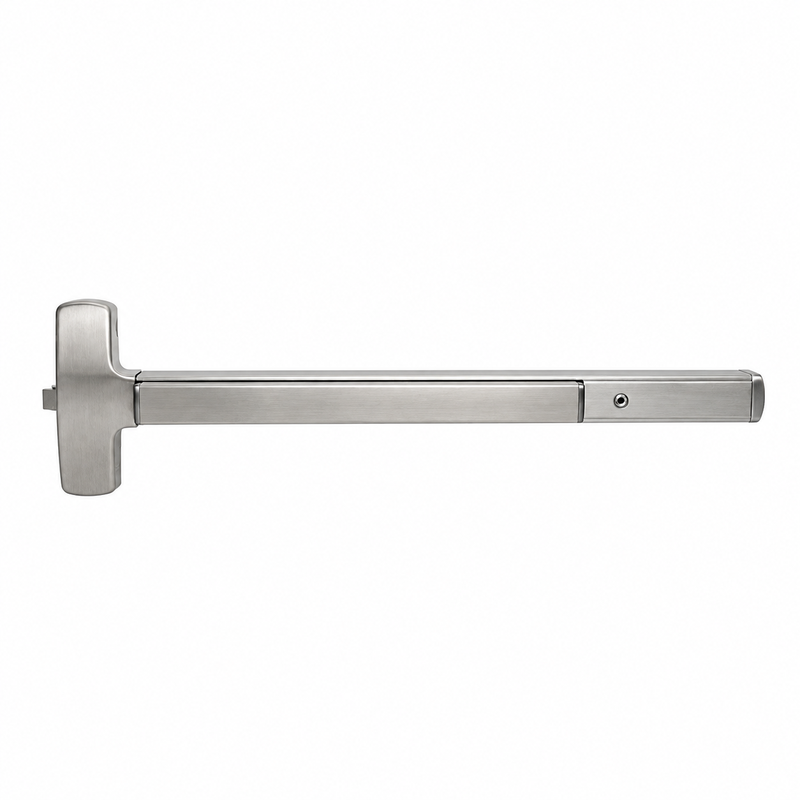

Falcon 25R-EO-4-630 Rim Exit Device, Wide Stile Pushpad, Exit Only, Less Trim, 48" Device, Hex Key Dogging, Non Handed, Grade 1, US32D Satin Stainless Steel Finish

The Falcon 25R-EO-4-630 is a Grade 1 rim exit device built for high-traffic commercial openings where dependable, code-compliant egress is a priority. Designed as an exit-only unit with no outside trim, it features a wide stile pushpad and covers door widths up to 48 inches. The non-handed design simplifies installation and stocking, while built-in hex key dogging lets you hold the latch retracted for push-pull operation during business hours. Finished in durable Satin Stainless Steel (US32D/630), this device offers a clean, corrosion-resistant appearance that holds up well in demanding environments such as schools, offices, and retail buildings.

Features

• Grade 1 rim exit device rated for heavy-duty commercial use.
• Exit-only (less trim) configuration for secure, egress-focused openings.
• Wide stile pushpad design suits a broad range of door styles.
• Fits doors up to 48 inches wide.
• Hex key dogging allows the latch to be held retracted for free push-pull operation.
• Non-handed for flexible installation and simplified inventory.
• Satin Stainless Steel (US32D/630) finish resists wear and corrosion.

Functional Details

As an exit-only device, the 25R-EO provides free egress from the inside with no outside operating trim. The hex key dogging feature lets authorized personnel mechanically hold the pushpad depressed and the latch retracted, converting the opening to push-pull operation during periods of high traffic.

• Rim exit device for single or double doors with mullion.
• Exit only, no outside trim.
• Hex key dogging holds the latchbolt retracted.
• Non-handed device.
