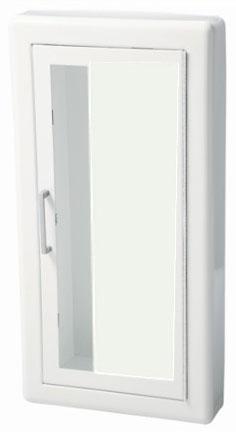

JL Industries 1017-V-17 Ambassador Series - Steel Fire Extinguisher Cabinet - Vertical Duo Panel Clear Tempered Glass with Pull Handle

Features

  • Vertical duo panel clear tempered glass with pull handle
  • Cold rolled steel with white powder-coat finish standard
  • Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with a zinc-plated handle and roller catch.

Specifications

Door and Trim Construction: Cold rolled steel with white powder-coat finish standard. Flush cabinet
doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and
roller catch.
Trim Style and Depth: Recessed - 3/8" flat trim or trimless. Semi-Recessed - 1 1/4", 1 1/2" Square
Edge or 2 1/2", 3", 4" (recessed pull), 4 1/2" Rolled Edge. Surface-mount has a square edge or
optional rolled edge upon request. 1 3/4" face trim on frame and door.
Tub: Constructed of cold rolled steel with white powder-coat finish standard.
Tub I.D. : Width:10 1/2'' Height: 24'' Depth: 6''
Wall Opening Non-Rated:
 Width:11 1/2'' Height: 25'' Depth: 3 1/8''
Wall Opening FX Option:
 Width:12 1/2''' Height: 26 1/8'' Depth: 4''
Frame O.D.:
 13 7/8'' x 27 3/8''
Accommodated Extinguishers: Cosmic & Galaxy 2.5 - 10, Mercury 2.5. - 5, Sentinel 5
