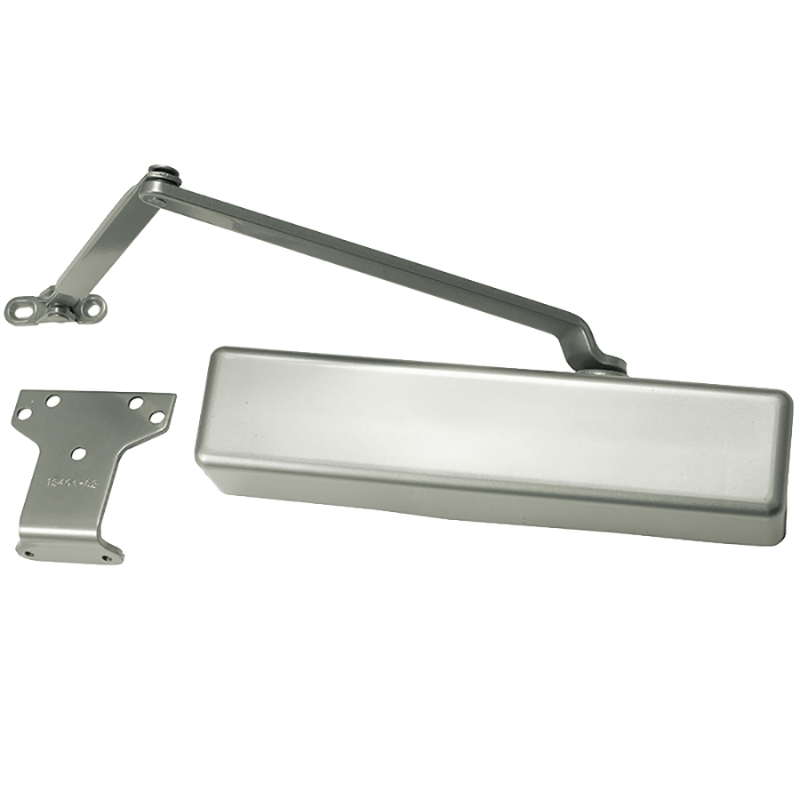

LCN 1461 Rw/PA Door Closer Regular Arm with Parallel Arm Shoe
Designed for maximum versatility, the 1460 Door Closers, available with multiple cover options, can be used for both commercial and institutional applications. This fully universal Door closer offers a wide variety of options and new fast and accurate installation. The spring power of an LCN 1461 Door Closer cylinder is field adjustable from size 1 through size 6 and is shipped adjusted to size 3. Brass 696, Aluminum 689, Dark Bronze 695, Light Bronze 691, and Statuary Bronze 690 finishes are available.
Features
- Standard 1460 series closer shipped with regular arm, a slimline plastic cover, and self-reaming and tapping screws
- Multiple cover options include; Standard (Slimline), Smooth Slimline (EC), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
-
Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
Specifications
| Materials: |
High-strength cast iron cylinder
One-piece forged steel piston
Heat-treated pinion
All-weather fluid eliminates seasonal adjustments
High efficiency, full complement, low friction bearings
Tamper-resistant regulating screws
Full rack and pinion hydraulic action
Quiet, low friction track and roller combination for all single lever arm closers |
| Mounting types: |
Hinge (Pull) Side
Top Jamb (Push)
Parallel Arm
|
| Cover: |
Plastic
Designer Series |
| Cylinder: |
Non-Handed
Accessibility
Non-Sized
Delayed Action
|
| Arm Functions: |
Regular Arm and Parallel Shoe |
| Finishes: |
Powder Coat
Plated |
| Warranty: |
10 year limited warranty |
| Manufacturer: |
LCN |
Certifications
| ADA: |
ADA Compliant |
| ANSI: |
A156.4 Grade 1 |
| UL: |
UBC 7.2 (1997) and UL 10 C Compliant |
