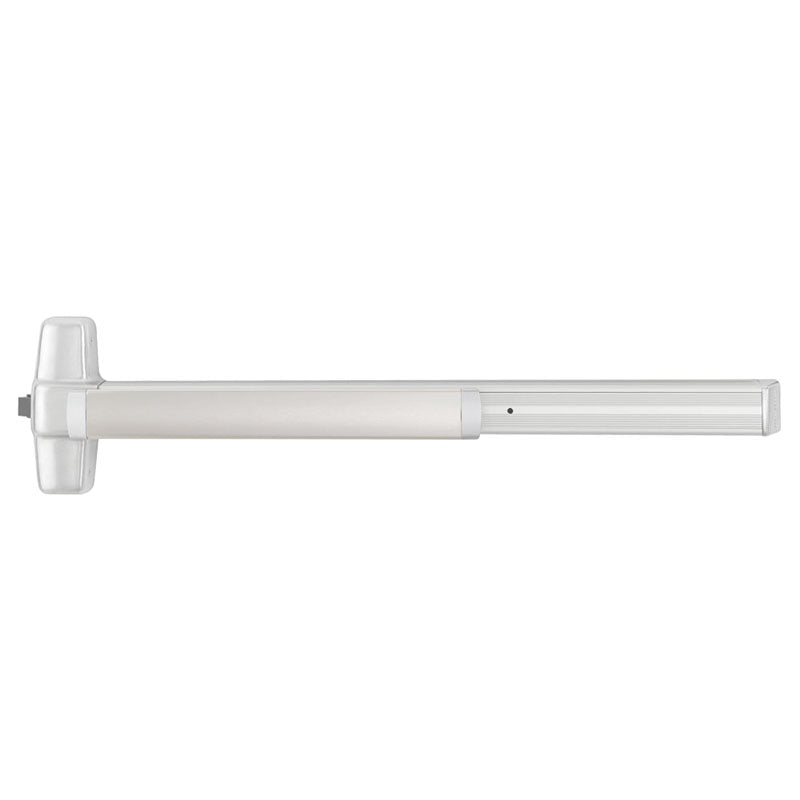

Von Duprin 99EO Rim Panic Exit Device, Exit Only

  • SKU: 99EO3628

Von Duprin 99EO Rim Panic Exit Device, Exit Only

  • SKU: 99EO3628
Sale price$1,180.74/ea
In Stock
In Stock
Finish: US28-628 Satin Aluminum
Length: 3' - (28" - 36" Doors)

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin 99EO Rim Panic Exit Device...
Quantity
+
Sale priceFrom $1,180.74
Von Duprin Exit Device Trims for 98/9...
Quantity
+
Sale priceFrom $205.92
Schlage Rim Cylinders - Multiple Keyw...
Quantity
+
Sale priceFrom $92.61
Total

The Von Duprin 99EO Rim Panic Exit Device, Wide Stile Pushpad, Exit Only, Hex Key Dogging, Non-Handed

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Multi-Function Device: Trims below decide the function of the device;
990EO Exit Only Plate
990NL Night Latch Trim
 - Key retracts latch bolt
990DT Dummy Pull Trim - Pull when dogged
990TP Thumbpiece Trim - Key locks and unlocks
990TP-BE Thumbpiece, Blank Escutcheon - Always operable, no cylinder
996EO Exit Only Plate
996L Lever Trim - Key locks and unlocks
996L-NL Night Latch Trim - Key retracts latch bolt
996L-DT Lever Dummy Trim - Pull when dogged
996L-BE Lever, Blank Escutcheon - Always operable, no cylinder

Manufacturer Von Duprin
SKU 99EO
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated No
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only, Accepts Various Trim
Device Length 36" or 48"
Hand Non-handed
Dogging Options Hex Key Dogging
Includes Trim No
Trim Type Less Trim
Trim Design Less Trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3-5/8"
Door Material Metal or Wood
Door Width 36" Bar - 28" - 36" Wide Doors
48" Bar - 34" - 48" Wide Doors
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible No
Product Type Rim Exit Devices
