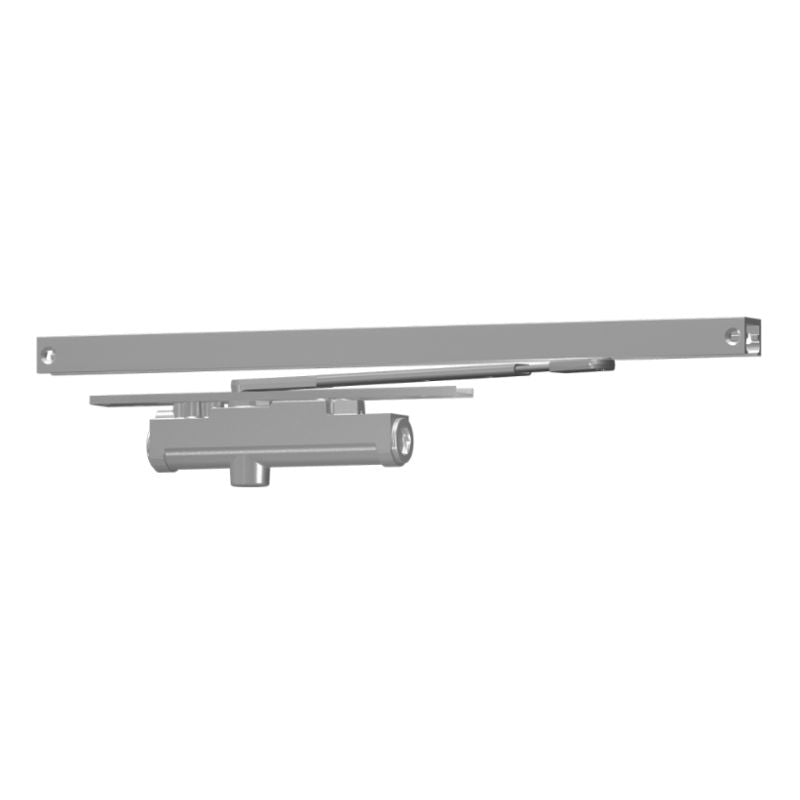

LCN 3133-STD Overhead Concealed Door Closer With Standard Track, Grade 1 Standard Single Lever Concealed in Door Closer, Hydraulic Track Arm Mount In Door Mounting, Slide Track Arm Standard with 140 Deg. Swing, Adjustable Backcheck, Size 3 For 34"-38" Wide Doors
LCN 3133-STD Overhead Concealed Door Closer is a Grade 1 product with a Standard Single Lever Concealed design that mounts in the door's hydraulic track arm. Its Slide Track Arm allows for a 140-degree swing and features an Adjustable Backcheck. This model has a Size 3 standard track to ensure smooth and reliable door closure.
Table of sizes
- Select closer based on width of door
- 3130Series cylinders available in size 1, 2, or 3
- Closing power of 3130 Series closers is not adjustable
3130 Series Concealed Closers
The 3130 Series is a concealed closer designed to mount in a 1 3/4" interior door.
The single lever arm and roller assembly of the LCN 3130 Series provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 3130 series closer shipped with standard arm, standard track, and wood and machine screw pack
- Sized cylinders for interior doors to 3’2”
- Handed for right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder-coated finish
- Optional plated finish on arm and fasteners
- Optional SRI primer for installations in corrosive conditions
- Consult factory for installation with pivots
