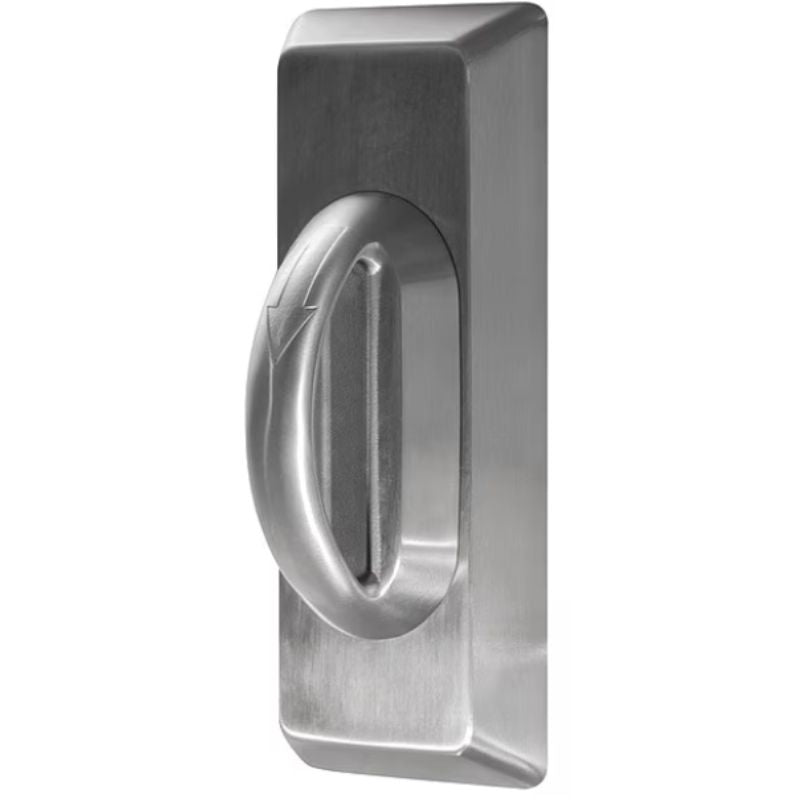

MarksUSA 195BH-N-US32D Passage Cylindrical Lock, Non-Keyed, D-Lig Slide, 2 3/4 Backset, Grade 1, Non-Handed, Satin Stainless Steel Finish
MarksUSA 195BH-US32D Cylindrical Lock features D-Lig Slide and a satin stainless steel finish. It is a grade 1 lock with a non-handed design and a 2 3/4 backset, perfect for any commercial setting.
STANDARD FEATURES:
- Rating: ANSI A156.2 Grade 1, UL Listed 3Hr Fire Rating
- 5- Point Ligature Resistant Slide Trim
- Backset: 2 3/4” Standard, 2 3/8”, 3 3/4” and 5” available
- Latch: #1834, stainless Steel Nose
-
Ergonomic solid cast Stainless Steel Slide Slides down freely in the locked or unlocked position
- Escutcheon Plate solid cast Stainless Steel thru bolted for strength and easy installation
- Meets BHMA 156.34 Anti Ligature Trim Standard
- Tamper Resistant mounting screws
- Strike: #1135, 4 7/8” ASA curved lip Strike
- Door Thickness: 1 3/4”, consult factory for thicker doors
-
Cylinder: Conventional Key n Knob Cylinder, Marks “C” Keyway, 6 pin w/2 keys –
Available in IC and all OEM cylinder preps
- Marks Hi-Security Cylinder available
- Marks Stainless Steel Retractor - Long life 3X the BHMA Grade 1 cycle Standard
- Antimicrobial Finish available – Code AM
- Marks Lifetime Mechanical Warranty
- Available in Most BHMA ANSI Functions
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.
Product Specs
Manufacturer | Marks |
SKU | 195BHN/32D |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL 10C |
ANSI Number | A156.2 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | Lifetime |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | No |
Finish | |
Finish | 630/US32D |
Finish Description | Satin Stainless Steel |
Finish Family | Matte Silver |
Technical Specs
Function | N-Passage |
ANSI Function | F75 |
Lever/Knob Design | BH-D-Lig Slide |
Lever/Knob Design Family | Anti-Ligature Pull |
Cylinder Type | Non-Keyed |
Handing | Non-Handed |
Door Thickness | 1-3/4" |
Std. Latch Number | 1834N |
Std. Latch Type | Spring Latch (Unguarded) |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 1" |
Lock Face Size | 2-1/4" x 1-1/8" |
Bolt Projection | 9/16" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 1135 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Cylindrical Lock |
