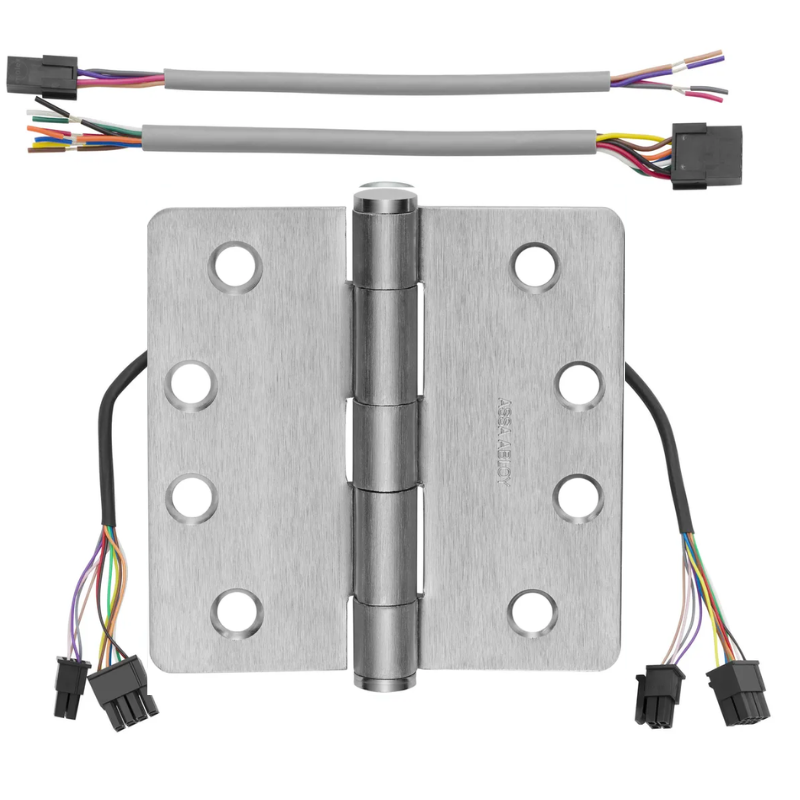

McKinney RC-TA2314-4-1/2x4-1/2-US32D-QC12 Full Mortise Bearing Hinge, ElectroLynx Electric Quick Connect 12 Wire, 5-Knuckle, Standard Weight, 4 1/2" x 4 1/2", Radius Corner, 630 Satin Stainless Steel Finish

The McKinney RC-TA2314-4-1/2x4-1/2-US32D-QC12 is a full mortise bearing hinge built for reliable performance on medium-frequency, medium-weight commercial doors. It features a five-knuckle design with concealed bearings, standard weight construction, and a 4 1/2" x 4 1/2" size with radius corners for easy fit into existing prep. The integrated ElectroLynx 12-wire electric quick connect option simplifies the transfer of power and signals to electrified door hardware such as electric locks and monitoring devices. Finished in 630 satin stainless steel, this hinge offers durability, corrosion resistance, and a clean appearance suited to a wide range of institutional and commercial openings.

Features

• Full mortise five-knuckle design with concealed bearings for smooth, quiet operation.
• Standard weight construction suited for medium-frequency, medium-weight doors.
• ElectroLynx quick connect with 12 wires for fast, plug-and-play electrified hardware installation.
• 4 1/2" x 4 1/2" size with radius corners for straightforward retrofit and new applications.
• 630 satin stainless steel finish for corrosion resistance and long-term durability.

Functional Details

The ElectroLynx electric quick connect option routes wiring through the hinge to power and monitor electrified door hardware, eliminating exposed wiring across the opening. The 12-wire configuration supports the transfer of power and low-voltage signals between the frame and the door.

• Five knuckle, standard weight, full mortise bearing hinge.
• Concealed bearing for smooth operation.
• ElectroLynx quick connect wiring option available.
