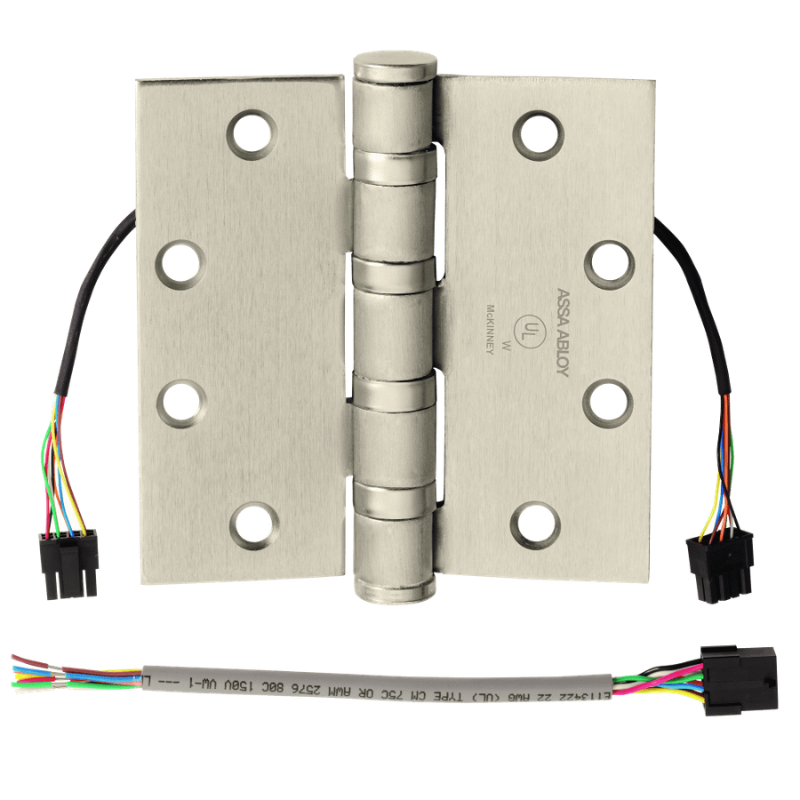

McKinney T4A3386-5x4-1/2-US32D-CC8 Electrified Full Mortise Heavy Weight Bearing Hinge, Five Knuckle, 5" x 4-1/2", [8] Wires With Concealed Circuit, Square Corner, 630 Satin Stainless Steel Finish

The McKinney T4A3386-5x4-1/2-US32D-CC8 is an electrified full mortise heavy weight bearing hinge engineered for high-traffic openings that require power transfer through the door. Built with a five knuckle design and a durable 630 Satin Stainless Steel finish, this 5" x 4-1/2" hinge features 8 wires with the ElectroLynx concealed circuit (CC8) for reliable, hidden electrical connections between the frame and door. Its heavy weight bearing construction supports demanding applications where electrified locks, monitoring, or access control hardware must be powered. Designed with square corners for standard commercial frame preparation, this McKinney hinge delivers dependable performance and a clean, professional appearance in institutional and commercial settings.

Features

• Electrified full mortise hinge that carries power from the frame to the door.
• Heavy weight bearing design suited for high-frequency, high-load openings.
• Five knuckle construction for smooth, stable operation.
• Eight wires with concealed circuit (CC8) for hidden electrical routing.
• Measures 5" x 4-1/2" with square corners for standard mortise applications.
• Finished in 630 (US32D) Satin Stainless Steel for corrosion resistance and a refined look.

Functional Details

The electrified concealed circuit transfers low-voltage power and signal wiring through the hinge, allowing electrified locking, monitoring, or access control devices to be powered without exposed cabling. The CC8 configuration provides eight wires with McKinney's ElectroLynx quick-connect concealed circuit for simplified installation.

• Concealed wires transfer power from frame to door.
• ElectroLynx connectors provide plug-and-play installation.
• Eight wire configuration supports multiple electrified functions.
