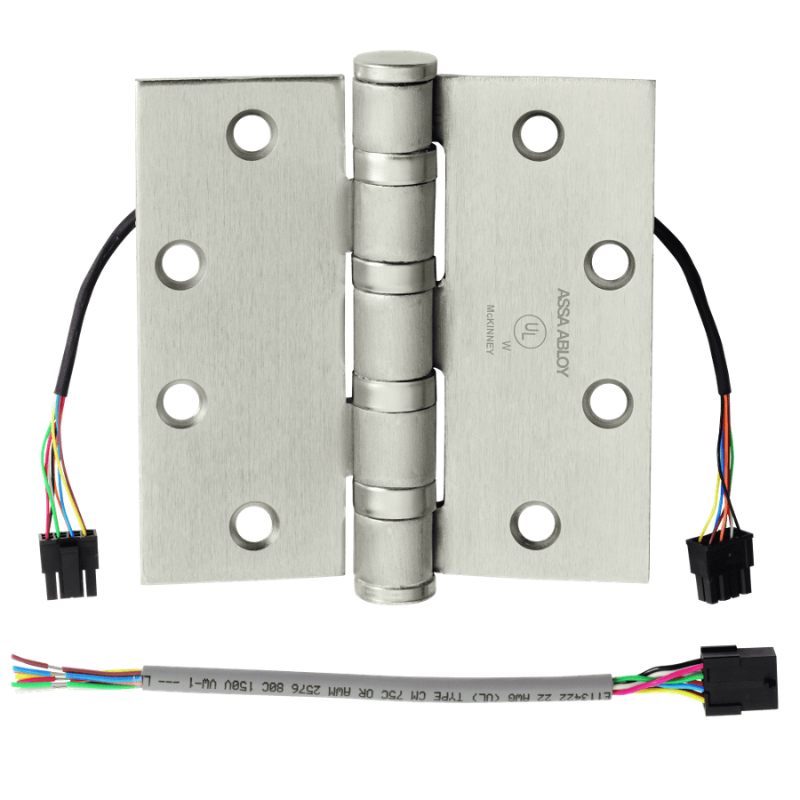

McKinney T4A3786-4-1/2x4-US26D-QC12 Electrified Full Mortise Heavy Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4", [12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney T4A3786-4-1/2x4-US26D-QC12 is an electrified full mortise heavy weight bearing hinge built for high-traffic openings that require power transfer through the door. Measuring 4-1/2" x 4" with a five knuckle design and square corners, this hinge carries twelve concealed wires terminated with a Quick Connect (QC12) plug for fast, tool-free electrical connections during installation. Finished in 626 Satin Chrome, it delivers reliable performance for access control, monitoring, and electrified locking applications. The heavy weight bearing construction supports demanding doors, making it a dependable choice for commercial and institutional entrances where durability and electrical continuity matter.

Features

• Electrified full mortise hinge that transfers power from frame to door for locks, sensors, and access control devices.
• Twelve concealed conductors with Quick Connect (QC12) plug for simplified, tool-free wiring.
• Heavy weight bearing construction handles high-frequency and heavy door applications.
• Five knuckle design provides smooth, stable operation and long service life.
• 4-1/2" x 4" size with square corner template for standard mortise preparations.
• 626 Satin Chrome finish offers a clean, corrosion-resistant appearance.

Functional Details

The electrified hinge routes concealed wires through the barrel to provide a continuous electrical path between the door and frame, allowing power and signal to reach devices mounted on the door. The Quick Connect system uses a factory-installed plug that mates with the corresponding connector, reducing installation time and eliminating field splicing.

• Electrified hinge with concealed wires for power transfer.
• Quick Connect (QC) provides plug-in electrical connection.
