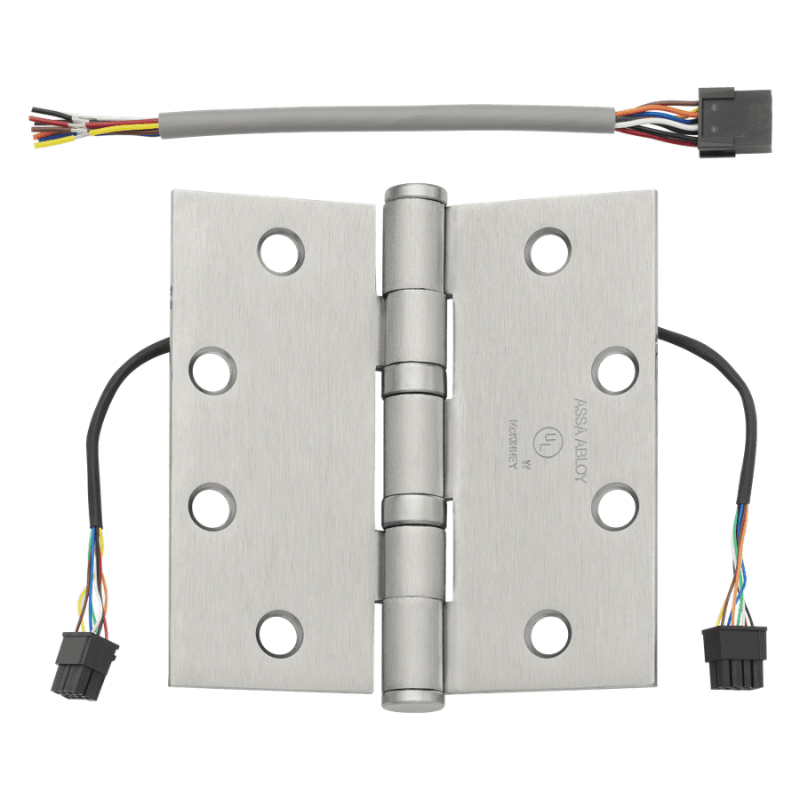

McKinney TA2314-4-1/2x4-1/2-CC8 Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4-1/2", [8] Wires With Concealed Circuit, Square Corner

The McKinney TA2314-4-1/2x4-1/2-CC8 is an electrified full mortise hinge engineered to transfer power discreetly from the frame to a door leaf. Built on McKinney's proven TA2314 standard weight, five knuckle ball bearing platform, this 4-1/2" x 4-1/2" hinge integrates the ElectroLynx concealed circuit (CC) with eight wires, allowing controlled electrical current to reach locks, monitors, and other door-mounted devices without exposed cabling. The concealed conductors run through the barrel for a clean appearance and added protection against tampering. With its square corner design and durable bearing construction, it's a reliable choice for access control and electrified openings on commercial doors.

Features

• Electrified full mortise hinge for concealed power transfer between frame and door.
• Standard weight, five knuckle construction with ball bearings for smooth, long-lasting operation.
• 4-1/2" x 4-1/2" size suited for a wide range of commercial door applications.
• Eight wires accommodate multiple electrified door devices at once.
• Concealed circuit (CC) design routes conductors through the barrel for a clean look.
• Square corner template for standard door and frame preparation.

Functional Details

The concealed circuit configuration carries eight wires through the hinge barrel, creating a protected pathway for electrical current between the door frame and the door. This enables power and signal transfer to electrified locking hardware, monitoring devices, and similar components while keeping wiring hidden from view.

• Transfers electrical current from door frame to door leaf.
• ElectroLynx quick connect option available for simplified installation.
• Available with 2, 4, 6, 8, 10, or 12 wire configurations.
