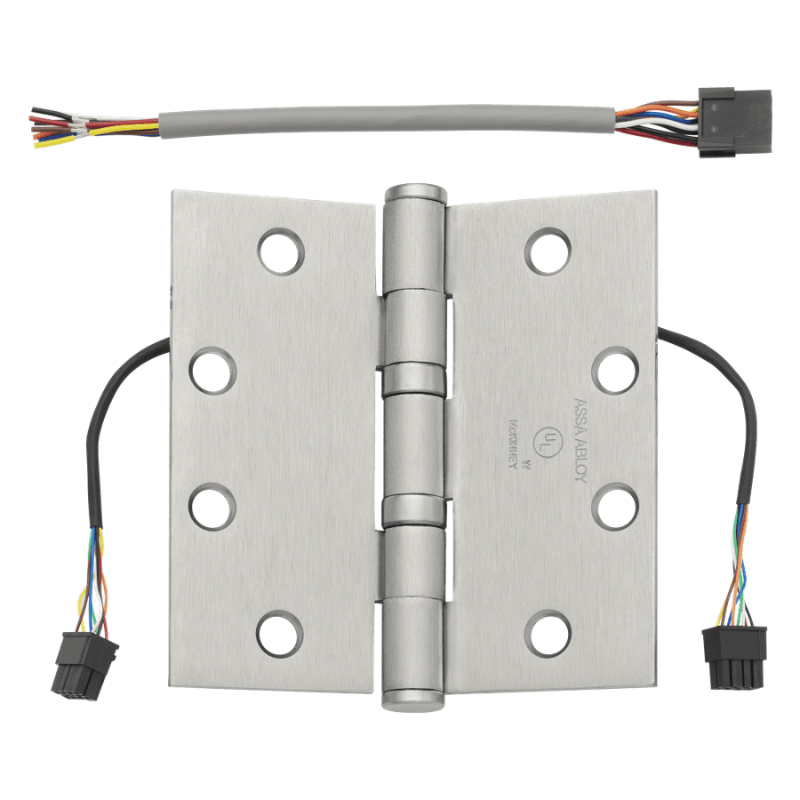

McKinney TA2314-4-1/2x4-1/2-US26D-QC12 Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4-1/2", [12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney TA2314-4-1/2x4-1/2-US26D-QC12 is an electrified full mortise hinge built for openings that require power transfer to door-mounted electrified hardware. Featuring a five-knuckle, ball bearing design, this standard weight hinge routes twelve concealed wires through the barrel with a Quick Connect (QC12) connector for faster, cleaner installations. Measuring 4-1/2" x 4-1/2" with square corners and finished in durable 626 Satin Chrome, it delivers smooth, reliable operation on medium-frequency commercial doors. It's a dependable choice for access control, electric locks, and monitoring applications where a discreet wired connection through the hinge is preferred over a surface-mounted power transfer.

Features

• Electrified full mortise construction transfers power directly through the hinge for a concealed wiring path.
• Twelve-wire configuration supports electric locks, access control, and door monitoring functions.
• Quick Connect (QC12) connector simplifies and speeds up field wiring.
• Five knuckle, ball bearing design ensures smooth, long-lasting operation.
• Standard weight rating suits medium-frequency commercial openings.
• 4-1/2" x 4-1/2" size with square corners for common door and frame prep.
• Attractive and durable 626 Satin Chrome finish.

Functional Details

The electrified hinge conceals wiring within the barrel and knuckle, carrying low-voltage power and signal from the frame to electrified door hardware while maintaining a clean, tamper-resistant appearance. The Quick Connect system allows the hinge to be joined to matching connectors without hardwiring at the opening.

• Provides electrical continuity between the door and frame for electrified locking and monitoring devices.
• Concealed wire path protects conductors from tampering and wear.
• Quick Connect connector reduces installation time and simplifies service.
