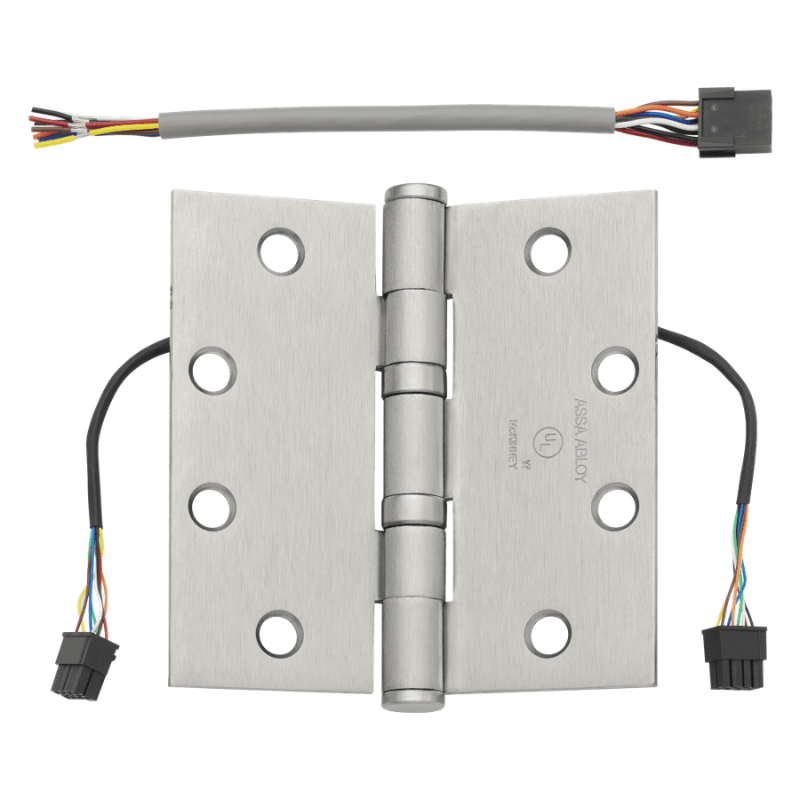

McKinney TA2714-4-1/2x4-1/2-CC8 Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4-1/2", [8] Wires With Concealed Circuit, Square Corner

The McKinney TA2714-4-1/2x4-1/2-CC8 is an electrified full mortise hinge designed to transfer power discreetly from the frame to the door edge, making it ideal for openings with electric locks, exit devices, or monitoring hardware. Built on McKinney's proven TA2714 standard weight, five-knuckle ball bearing platform, this 4-1/2" x 4-1/2" hinge carries eight concealed wires through its Concealed Circuit (CC8) construction, keeping conductors protected and out of view. The square corner design suits standard commercial frame preparation, while the ball bearing configuration ensures smooth, dependable operation on medium-frequency doors. It's a clean, reliable choice for access control installations.

Features

• Electrified full mortise hinge that transfers power through eight concealed wires.
• Concealed Circuit (CC8) design routes conductors internally for a protected, tamper-resistant connection.
• Five knuckle construction with ball bearings for smooth, long-lasting operation.
• Standard weight bearing hinge suited for medium-frequency commercial openings.
• 4-1/2" x 4-1/2" size with square corners for standard frame and door preparation.

Functional Details

The Concealed Circuit system embeds the wire transfer within the hinge itself, allowing power and signal to pass from the frame to the door without an exposed transfer loop. The eight wires support powered locking and monitoring hardware while remaining hidden when the door is closed.

• Eight (8) wire configuration for electrified access control applications.
• Concealed Circuit (CC8) wire transfer between frame and door leaf.
