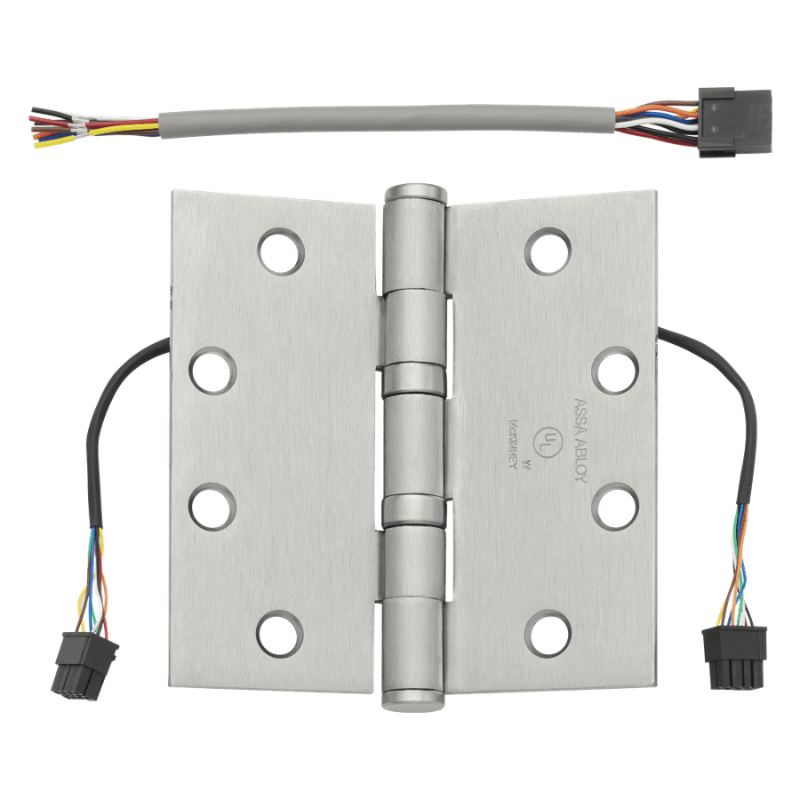

McKinney TA2714-4-1/2x4-US26D-POE Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4", Power Over Ethernet, Square Corner, 626 Satin Chrome Finish

The McKinney TA2714-4-1/2x4-US26D-POE is an electrified full mortise hinge engineered to deliver Power Over Ethernet (PoE) directly through the door, eliminating the need for separate power and data wiring runs. Built on McKinney's proven TA2714 five-knuckle, standard weight ball bearing platform, it measures 4-1/2" x 4" and features square corners for a clean fit in commercial openings. The concealed electrical transfer keeps wiring protected within the hinge, supporting access control, electric locks, and monitored security devices. Finished in 626 Satin Chrome (US26D), it combines durable performance with a professional appearance suited to schools, offices, and healthcare facilities.

Features

• Delivers Power Over Ethernet through the hinge to power and network connected door hardware.
• Standard weight ball bearing construction for smooth, reliable operation on medium frequency doors.
• Five knuckle design measuring 4-1/2" x 4" for standard commercial door and frame applications.
• Concealed electrical transfer protects wiring from tampering and wear.
• Square corner template for straightforward installation in mortised openings.
• Finished in 626 Satin Chrome (US26D) for a durable, professional appearance.

Functional Details

This electrified hinge routes low-voltage power and data through concealed conductors between the frame and door leaves, allowing PoE-enabled hardware to operate without exposed wiring or external transfer devices.
