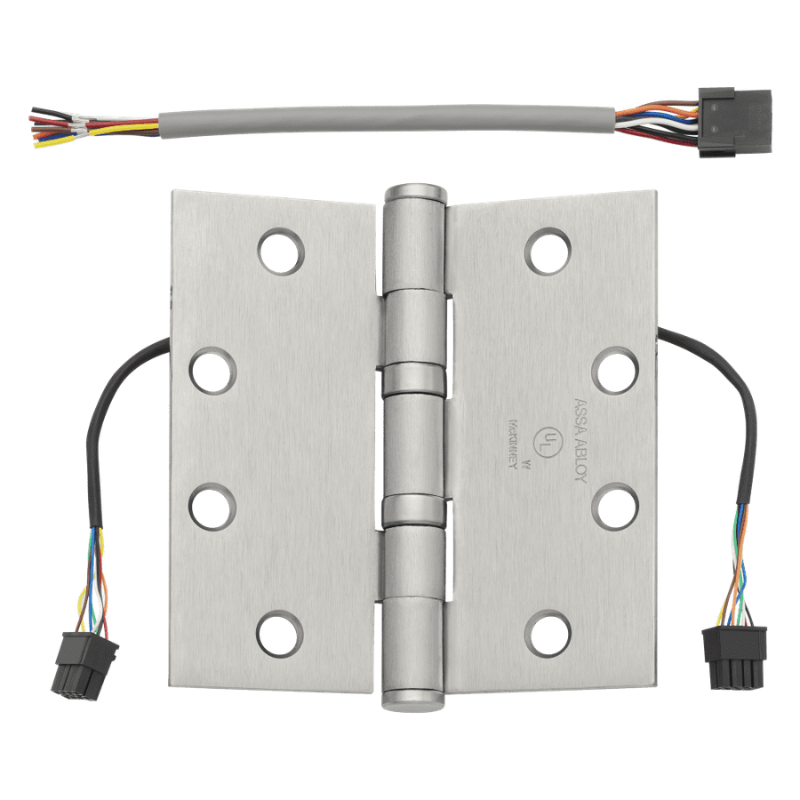

McKinney TA2714-4-1/2x4-US26D-QC12 Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4", [12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney TA2714-4-1/2x4-US26D-QC12 is an electrified full mortise hinge built to carry power across the door opening for electrified locks, exit devices, and monitoring hardware. Part of McKinney's ElectroLynx series, it features a five knuckle standard weight design with concealed ball bearings for smooth, dependable operation on medium-frequency doors. Measuring 4-1/2" x 4" with square corners, the hinge routes twelve wires through the barrel and terminates in a Quick Connect (QC12) connector for fast, tool-free electrical hookup. Finished in durable 626 Satin Chrome, it offers a clean, corrosion-resistant appearance suited to commercial installations where reliability and simple wiring are priorities.

Features

• Electrified full mortise hinge transfers power from frame to door for electrified door hardware.
• Five knuckle standard weight design with concealed ball bearings for smooth operation.
• Twelve wire conductors provide capacity for multiple electrified functions.
• ElectroLynx Quick Connect (QC12) connector enables plug-and-play wiring without hard splicing.
• 4-1/2" x 4" size with square corners fits standard commercial door prep.
• Applied in 626 Satin Chrome finish for a durable, corrosion-resistant appearance.

Functional Details

The concealed wiring runs internally through the hinge barrel, keeping conductors protected as the door swings. The Quick Connect system allows the door and frame wiring to be joined with a simple push connector, reducing installation time and eliminating the need for field splicing.

• Transfers electrical current from the door frame to electrified hardware on the door.
• ElectroLynx Quick Connect provides plug-in electrical connections.
• Concealed wire routing through the hinge barrel.
