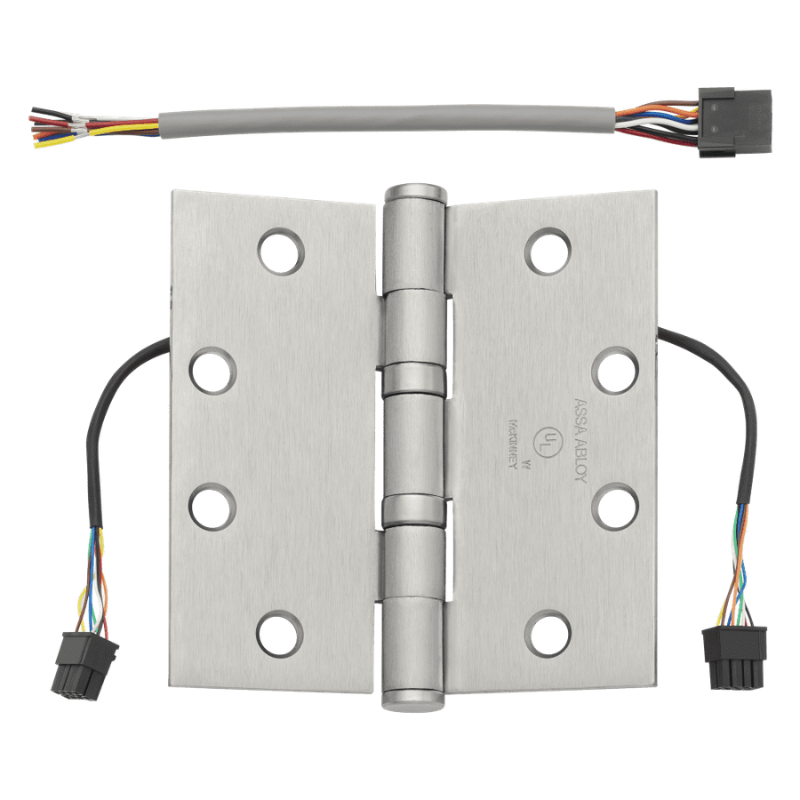

McKinney TA2714-4-1/2x4-US26D-QC8 Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4", [8] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney TA2714-4-1/2x4 is an electrified full mortise hinge built for openings that require power transfer to the door for electric locks, exit devices, or monitoring hardware. This standard weight, five knuckle bearing hinge measures 4-1/2" x 4" and features eight concealed wires with a factory-installed Quick Connect (QC8) plug, allowing fast, tool-free electrical connections during installation. Finished in 626 Satin Chrome (US26D), it delivers a clean, durable appearance well suited to commercial and institutional environments. The TA2714 combines dependable swinging performance with a discreet, integrated wiring solution that keeps electrical runs hidden within the hinge.

Features

• Electrified full mortise design routes power discreetly through the hinge for door-mounted electrified hardware.
• Eight wires with Quick Connect (QC8) simplify and speed up field wiring.
• Five knuckle construction with concealed bearings for smooth, long-lasting operation.
• Standard weight bearing build handles typical commercial door applications.
• 4-1/2" x 4" size with square corners fits standard mortise preparations.
• 626 Satin Chrome finish provides a corrosion-resistant, professional look.

Functional Details

The electrified hinge transfers low-voltage power from the frame side to the door through internal concealed wires, eliminating exposed power transfer devices. The Quick Connect plug lets installers join the hinge wiring to building wiring quickly and reliably.

• Concealed wiring transfers power from frame to door for electrified locking and monitoring hardware.
• Quick Connect (QC8) provides eight wires with a plug-in connector for fast installation.
