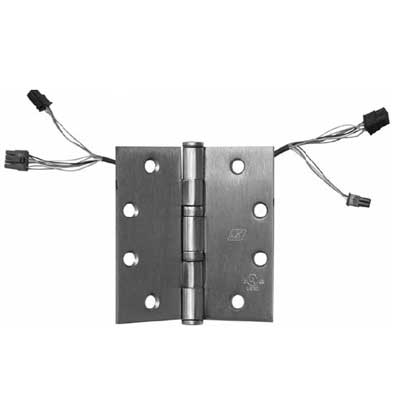

McKinney Electric Hinge TA2714, 4-1/2 x 4-1/2 - ElectroLynx US26D/626

The McKinney Electric Hinge TA2714 with ElectroLynx Quick Connect offers the perfect solution for door openings that use electrified hardware. It comes in a satin chrome finish.

Installer-friendly, ElectroLynx ® connectors take the guesswork out of wiring and offer a quick method for connecting power from the source through the hinge to the electrified hardware.

Each hinge features concealed plug connectors that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.

An 8 position connector is used for QC4 and QC8 wire hinges.
An 8 position and a 4 position connector are used for QC12 wire hinges.

Features: McKinney Electric Hinge TA2714 with ElectroLynx QC

• Full Mortise
• 5 Knuckle
• Recommended for standard weight, medium frequency doors, or doors with closing devices.
• Steel base
• 4 amp continuous @ 24 volts AC or DC per circuit
• 28 gauge multi-strand wires are used.
• A pigtail is provided for connection to the source wiring
• Finishes available: US26D
• The gauge of metal: .134

Certifications: McKinney Electric Hinge TA2714 with ElectroLynx QC
