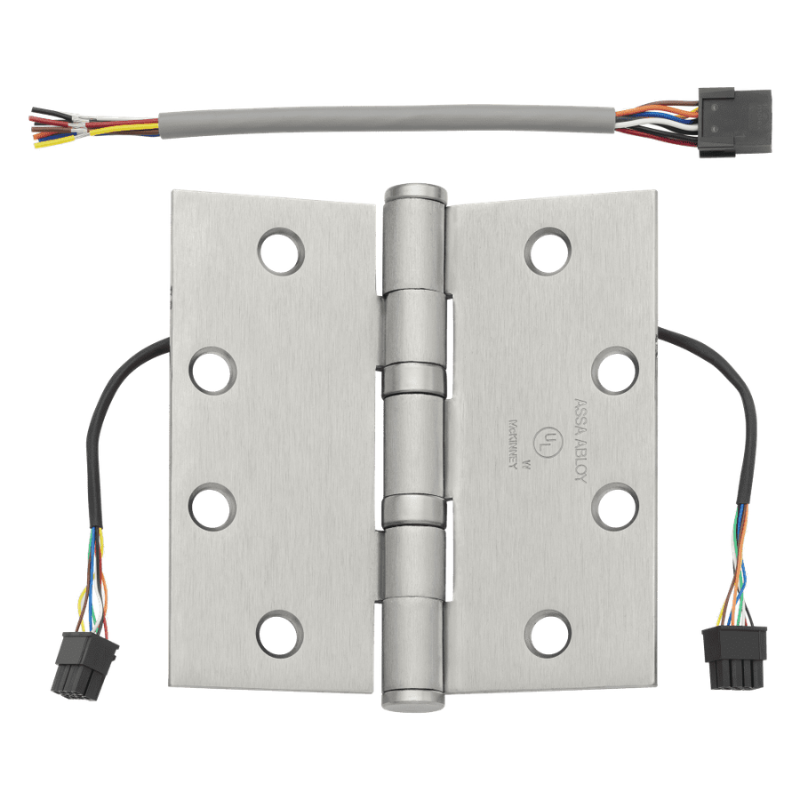

McKinney TA714-4-1/2x4-US26D-QC12 Electrified Full Mortise Standard Weight Concealed Bearing Hinge, Three Knuckle, 4-1/2" x 4", [12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney TA714-4-1/2x4-US26D-QC12 is an electrified full mortise hinge built to carry power through the door for electronic locks, exit devices, and monitoring hardware. Featuring a three knuckle, concealed bearing design in a standard weight construction, it measures 4-1/2" by 4" and comes prepped with 12 wires and a QuickConnect connector for fast, reliable installation. The 626 Satin Chrome finish delivers a clean, corrosion-resistant appearance suited to commercial openings. With its square corner template and durable bearing system, this hinge provides smooth operation and dependable electrical continuity in high-traffic access control applications.

Features

• Electrified full mortise hinge for transferring low-voltage power through the door.
• Standard weight construction suited for medium to high frequency openings.
• Three knuckle design with concealed bearings for smooth, quiet operation.
• 4-1/2" x 4" size with a square corner template.
• Includes 12 wires with QuickConnect for simplified wiring.
• Finished in 626 Satin Chrome for a corrosion-resistant, professional look.

Functional Details

The TA714 routes electrical wiring through the hinge barrel, providing a concealed pathway between the frame and door for access control and monitoring devices. The QuickConnect connector allows the door and frame wiring to be joined without hard-wired splicing, reducing installation time and simplifying service.

• Electrified through-wire hinge with concealed wiring.
• QuickConnect connector for plug-and-play electrical connection.
• 12 wires for powering and monitoring electrified door hardware.
