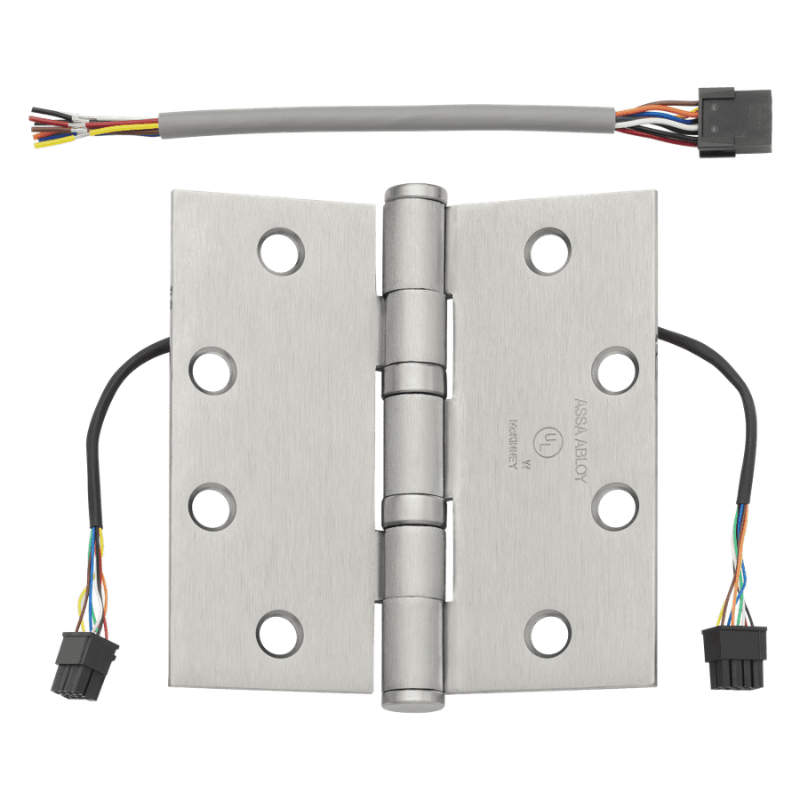

McKinney TA714-5x4-1/2-US26D-CC8 Electrified Full Mortise Standard Weight Concealed Bearing Hinge, Three Knuckle, 5" x 4-1/2", [8] Wires With Concealed Circuit, Square Corner, 626 Satin Chrome Finish

The McKinney TA714-5x4-1/2-US26D-CC8 is an electrified full mortise hinge engineered for openings that require power transfer to electrified locking or monitoring hardware. Built with a three-knuckle, concealed bearing design, it measures 5" x 4-1/2" and carries eight wires through a concealed circuit, keeping the electrical connection hidden and protected within the hinge barrel. Finished in 626 Satin Chrome (US26D), it delivers a clean, professional appearance suited to commercial installations. Its standard weight construction makes it well matched for medium-frequency doors, offering reliable performance and a smooth, quiet swing throughout the life of the opening.

Features

• Electrified full mortise hinge designed to transfer power from frame to door.
• Three-knuckle, concealed bearing construction for smooth, dependable operation.
• Includes eight wires with a concealed circuit for hidden electrical routing.
• Standard weight build suited to medium-frequency commercial doors.
• 5" x 4-1/2" size with a square corner profile.
• Attractive 626 Satin Chrome (US26D) finish.

Functional Details

The concealed circuit routes electrical wiring through the hinge barrel, allowing continuous power or signal transfer between the door frame and an electrified device such as an electric lock or exit device without exposing the wires.

• Transfers power from the frame to the door.
• Concealed wiring within the hinge for a clean, protected connection.
• Eight wires available for powering electrified hardware.
