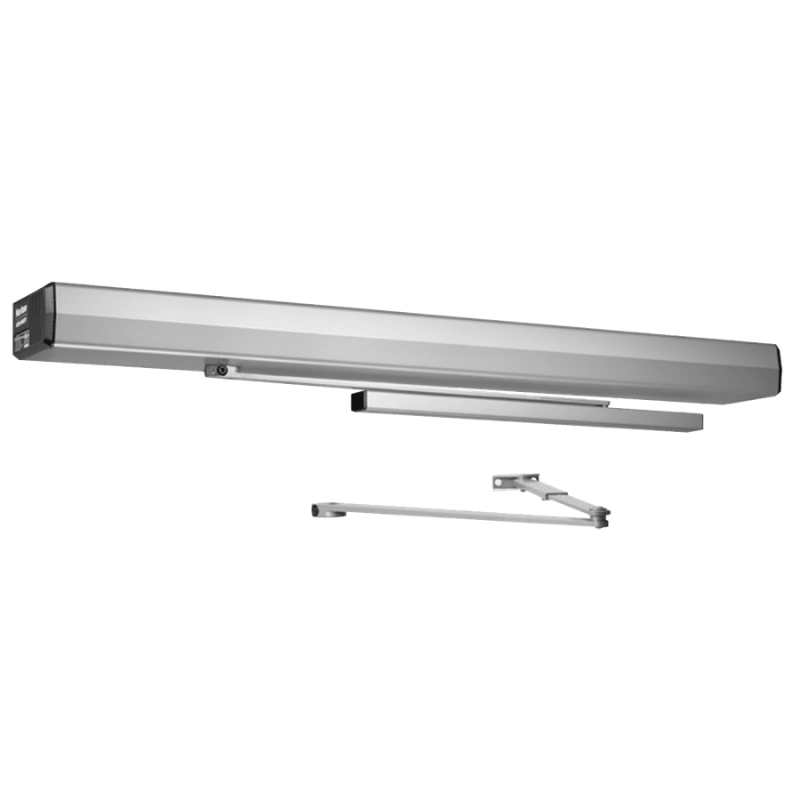

Norton 6342 Low Energy Electromechanical Door Operator, Slide Track or Low Ceiling Push or Pull Side Surface Mounting, Double Lever Arm and Slide Track with Standard Arm, 39-5/8" Overall Length

The Norton 6342 Low Energy Electromechanical Door Operator delivers reliable, automated door control for commercial entrances where accessibility and hands-free operation matter. Designed for slide track or low ceiling push or pull side surface mounting, this operator combines a rugged electromechanical drive with a compact 39-5/8" overall length housing that fits a wide range of openings. It powers the door open on demand and uses spring energy to close, making it well suited for barrier-free access applications. Whether configured with a double lever arm or a slide track with standard arm, the 6342 offers dependable performance and versatile installation options for interior and exterior doors alike.

Features

• Low energy electromechanical operation ideal for accessible, hands-free door control.
• Flexible mounting for slide track or low ceiling push and pull side surface applications.
• Available with a double lever arm or slide track with standard arm configuration.
• Compact 39-5/8" overall length housing for adaptable installation.
• Spring-powered closing for consistent, controlled door return.
• Built for durable, long-term performance in commercial settings.

Functional Details

As a low energy operator, the 6342 drives the door open when activated by a switch or actuator and closes it under stored spring energy, meeting low energy accessibility requirements for slow, controlled motion suited to pedestrian traffic.

Arm Type Details

The 6342 can be fitted with a double lever arm for push side installations or a slide track with standard arm for pull side and low ceiling mounting. The slide track configuration provides a low-profile appearance, while the double lever arm offers additional control on push side openings.
