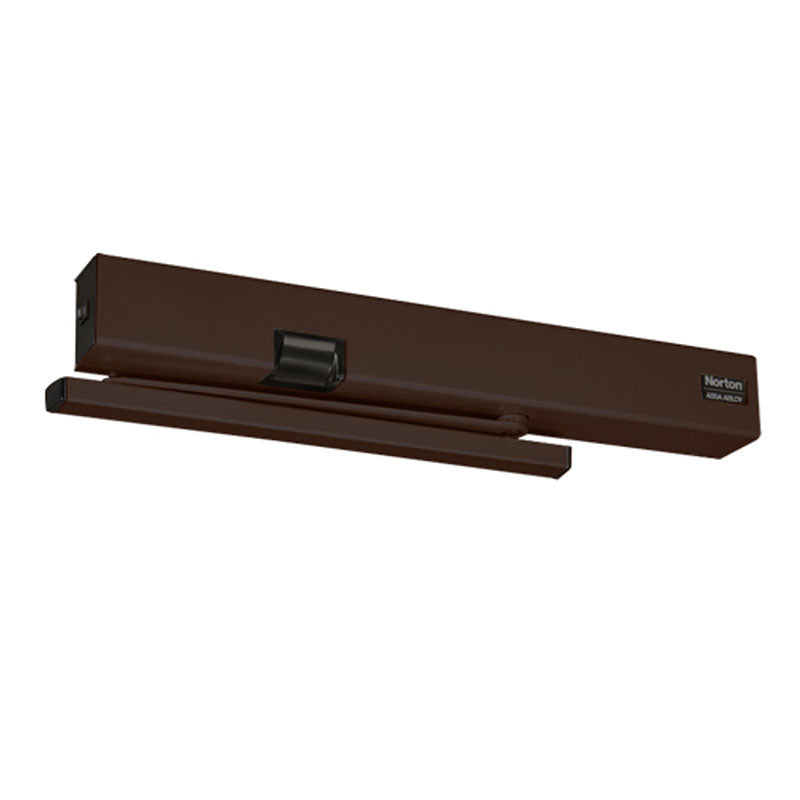

Norton 7154SZ-690 SafeZone Electromechanical Closer/Holder with Motion Sensor, Pull Side, Double Egress Slide Arm, Dark Bronze

  • SKU: 7154SZLH24V690

Norton 7154SZ-690 SafeZone Electromechanical Closer/Holder with Motion Sensor, Pull Side, Double Egress Slide Arm, Dark Bronze

  • SKU: 7154SZLH24V690
Sale price$2,486.00/ea
In Stock
In Stock
Handing: LH Left Hand
Voltage: 24VDC
Visa Mastercard American Express Discover Shop Pay Apple Pay

The Norton 7154SZ-690 is an Electromechanical Closer/Holder with a Motion Sensor, is Pull Side mounted, has a Double Egress Slide Arm & Track (Reveals 1/8"- 3" (3-76mm) to 110 °) for up to 44-inch doors, and comes in Dark Bronze 690 Finish. Norton 71534SZ-690 is available in both 120 VAC or 24 VDC voltage

7100SZ Series Safe Zone

Designed with safety in mind, SafeZone® takes door closers to the next level.

SafeZone uses a multi-point, electromechanical closer and a programmable motion sensor. When the door is opened manually, SafeZone senses movement in the door opening and stops the door from closing. When movement is no longer detected, the adjustable setting times out and the door closes.

  • Electromechanical closer units to be a multi-point, closer/holder type with selective hold open positioning achieved by electronic solenoid locking of closer arm slide into the track assembly. Closer/holder units to have a maximum opening of 180° (hold open to 175°) and are fail safe to close the door in the event of electrical power interruption.
  • SafeZone Detection: Closer/holders units to have an integral sensor device monitoring a "zone of safety" at the door opening. SafeZone detection prevents the door from closing in the event of movement within the adjustable sensing field. Movement is detectable in both directions with selectable closer hold open time and sensor sensitivity. Mechanical closer to be hydraulic type with full rack and pinion construction enclosed in a cast aluminum alloy shell. Internal hydraulic fluid is to be non-gumming and non-freezing. Include two non-critical valves to independently regulate sweep and latching speeds and an adjustable backcheck cushioning valve. All valves are adjustable by hex key. Provide spring power adjustment permitting a 50% increase in closing power over the minimum closing force for any closer size.
  • Mounting: Closer units can be surface mounted to the frame face for application on the pull (hinge side) side of door, or soffit mounted on the push side of the door frame with projection of no more than 2-5/8" (67mm) from the frame face. Frame face must be a minimum 2" and ceiling clearance a minimum of 4". Door must be hung on either butt hinges or 3/4" offset pivot hinges, minimum 1-3/4" to 2-1/4" thickness.
  • Installation: Provide optional handheld remote device for programming SafeZone sensor settings. Auxiliary door stops are recommended at closer/holder openings and required at doors opening beyond 110°. Interior installation only.
  • Power: Closer units operate on (120VAC, 60Hz) or (24VDC) with an amperage draw not exceeding (.086 Amps for 24VAC/DC) (.051 Amps for 120VAC). Supplier to coordinate electrical requirements with electrical and alarm system engineers. Field wiring (and conduit) by others.


Manufacturer Norton
SKU 7154Z 690
Installation Commercial
Origin USA
Unit of Measure Each
Base Material Varies
BAA Qualified Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}
Finish 690/US20
Finish Description Dark Bronze Painted
Finish Family Dark Bronze


Type Surface
Technology Special Application
Mounting Location Pull Side
Mounting Style Slide Track
Hold Open Yes
Hold Open Type Electric
Degree Hold Open 110º Maximum
Arm Type Double Egress Slide Track Arm
Hand LH or RH
Degree Swing 110 Deg.
Back Check Adjustable
Door Size 28" to 44"
Reveal Size 1/8" - 3" Maximum
Product Type Surface Closers
