Description

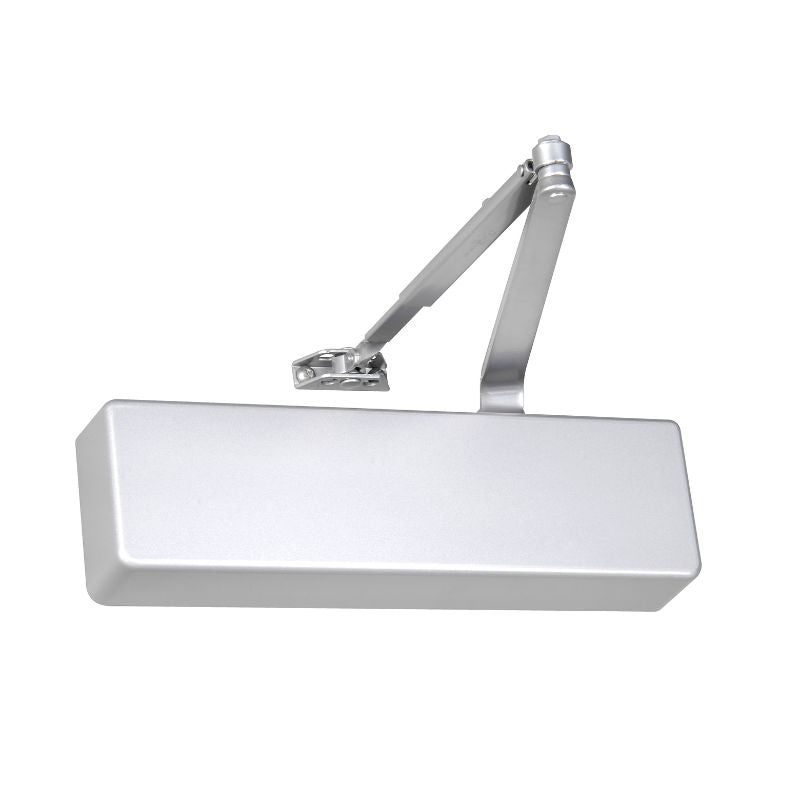

Norton 7500-DA Delayed Action Institutional Door Closer, Regular Arm, Top Jamb, and Parallel Arm - Multi-Size 1 thru 6
The Norton 7500-DA Door Closer is an institutional-grade product designed for delayed action and is available in three different arm types: Regular, Top Jamb, and Parallel, making it suitable for a wide range of door sizes, from 1 to 6.
Norton 7500 Series Closers
Institutional heavy-duty door closer.
The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities
that demand reliability, such as government, healthcare and educational institutions.
- Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
- Non-handed
- Rack-and-pinion design
- Cast aluminum body
- Adjustable spring sizes 1-6
- 2-1/8" (54mm) projection
- 1-1/2" (38mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Backcheck positioning
- Staked valves
- Retrofit plates
- NorGlide® fluid
- Molded plastic cover
- All standard arm applications allow doors to swing 180°, conditions permitting
- Self-drilling screws
- Full-size template
- Application specific mounting: Regular (S), Top Jamb (JS) or Parallel (P) mount
- Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
- Slide Tracks: push or pull side mounting
- Exceeds 25 million cycles
Product Specs
| Manufacturer | Norton |
| SKU | 7500-DA |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | ANSI A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 25 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Closer Size | 1 to 6 |
| Arm Type | Regular Arm |
| Hand | Non-Handed |
| Back Check | Adjustable |
| Cover | Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
