Description

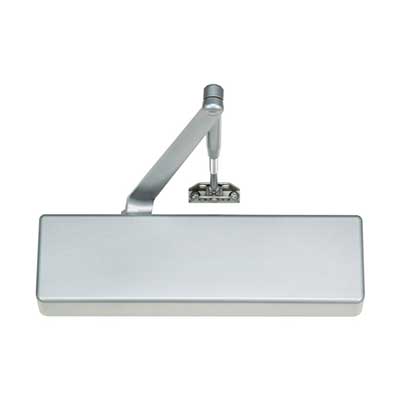

Norton 7500SS-689 Stainless Steel Tri Mount Door Closer, Push or Pull Side, Regular Arm, Size 1 to 6, Plastic Cover, Grade 1, Aluminum Painted Finish, Non-Handed
The Norton 7500SS-689 Is a Stainless Steel Surface Mounted, Institutional Door Closer, Regular Arm, Top Jamb, and Parallel Arm, Multi-Size 1 thru 6 In an Aluminum Finish. The 7500SS Door Closer Is Non-Handed, With a Full Cover Ideal For Use in High Traffic Areas.
Corrosion-Resistant Door Closer
The series 7500SS door closers with molded plastic covers are available for use where corrosive conditions exist. This series is provided with brass adjustment valves, a 440-grade stainless steel pinion shaft, an all-aluminum body, and bronze closer arm bushings; all other components are of 302/303-grade stainless steel. Fasteners are 8-18 stainless steel. This product is available for standard regular arm, top jamb and parallel arm, non-hold open, applications only.
Norton 7500SS-689 Institutional Door Closer Features
- Adjustable spring sizes 1 through 6
- Tri-Style ® packaging; tri-packed for regular, top jamb or parallel arm mounting
- Spring Force Indicator
- Staked valves
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Backcheck positioning valve
- All standard arm applications allow doors to swing 180 °, conditions permitting
- Self-drilling screws
- Full-size template
- Slide Tracks: push or pull side mounting
Product Specs
| Vendor | Assa Abloy |
| Manufacturer | Norton |
| SKU | 7500SS 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Stainless Steel |
| UL Listing Type | UL 10C |
| ANSI Number | ANSI A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 25 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Closer Size | 1 to 6 |
| Arm Type | Regular Arm |
| Hand | Non-Handed |
| Back Check | Adjustable |
| Cover | Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
Certifications
| ANSI/BHMA: | A156.4, Grade 1 certified |
| UL: | UL10C compliant for positive pressure |
| ADA: | ADA Compliant |
| New York City: | MEA 41-60-SM |
