Description

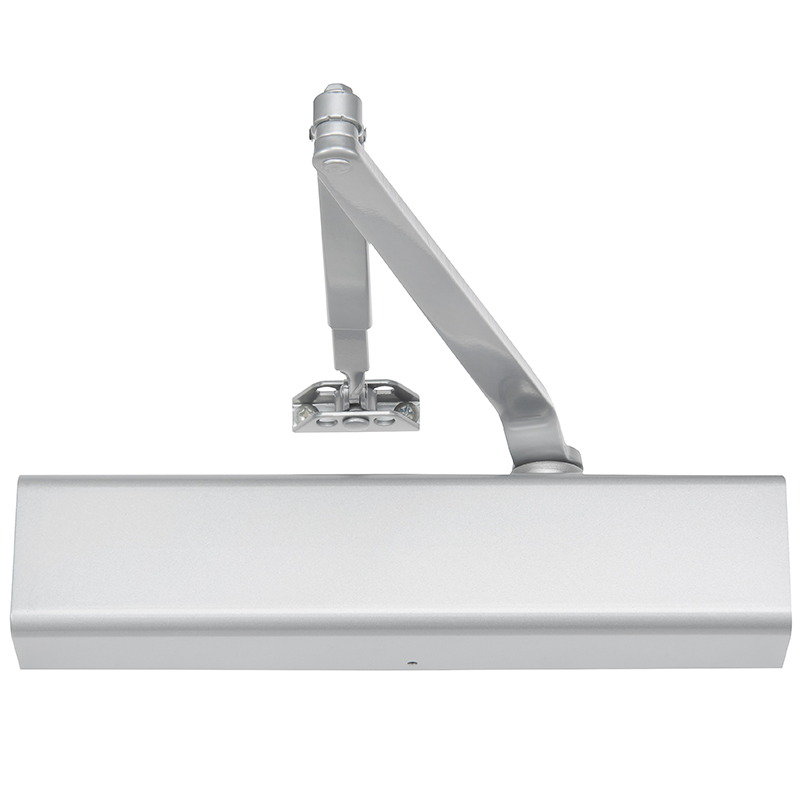

Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular, Grade 1, Tri-Packed, Adjustable Size 1 to 6, Plastic Cover, Non-Handed
The Norton 8501 Surface Mounted Door Closer is a Grade 1, Tri-Packed product that is adjustable from size 1 to 6. It has a Double Lever Arm Regular design and is suitable for both push or pull side installation. Additionally, it features a Plastic Cover and is Non-Handed.
Norton 8501 Series Closers
Architectural Tri-Style® door closer.
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.
- Exceeds 15 million cycles (witnessed and verified by UL)
- Adjustable spring sizes 1 through 6
- Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Cast aluminum body
- Rack and pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- 2-1/8" (54mm) projection (standard covers)
- All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
- Full size template
- Metal, architectural plastic or architectural metal covers (8501 only)
- Lead lined metal cover - suffix MLL
- Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
- Slide Tracks: push or pull side mounting
- 25-year limited warranty
Product Specs
| Manufacturer | Norton |
| SKU | 8501 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | ANSI A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 25 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Closer Size | 1 to 6 |
| Arm Type | Double Lever Arm, Regular |
| Hand | Non-Handed |
| Back Check | Adjustable |
| Cover | Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
