Description

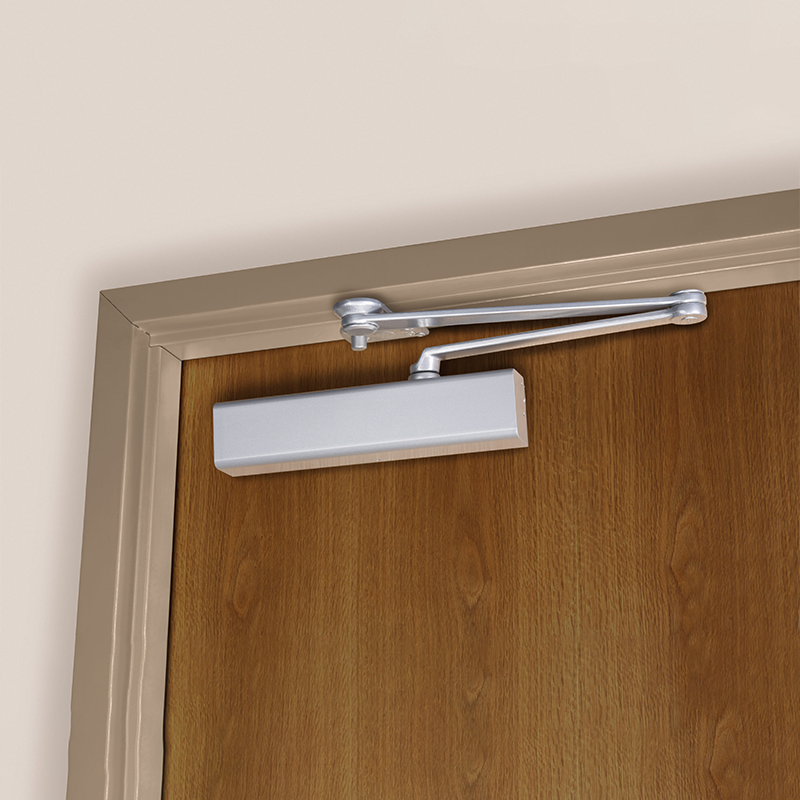

Norton CLP8501 Architectural Door Closer with a CloserPlus dead stop arm, Multi-Size 1 thru 6
The Norton CLP8501 Architectural Door Closer with CloserPlus arm, Is field reversible With A Dead Stop Arm, Multi-Size 1 thru 6 Norton CLP8501 Is Non-Hold Open Grade One Commercial Surface Mounted Commercial Door Closer That Is Used In High Traffic Areas In All Types Of Institutions, Ideal For High Traffic Areas Interior And Or Exterior Doors, CLP8501 Door Closers Are Used in interior and exterior doors Have full rack-and-pinion type with cast aluminum alloy shell. project no more than 2-1/8" from the surface of the door with a standard cover. Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents. See Spec Sheet
Specifications
| Dimensions: | 1-1/4" (32mm) diameter piston 5/8" (16mm) diameter pinion journals 2-1/8" (54mm) projection (standard covers) |
| Handing: | Non-Handed |
| Material: | Cast aluminum body |
| Power Spring Size: | Adjustable spring sizes 1 through 6 |
| Optional Features: | - Metal, architectural plastic, or architectural metal covers - Lead-lined metal cover - suffix MLL - Delayed action - Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus ®, CloserPlus Spring, Unitrol ® - Slide Tracks: push or pull side mounting |
| Warranty: | 10-year limited |
| Manufacturer: | Norton |
