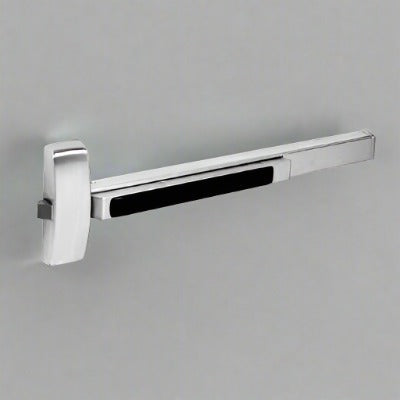

Sargent 8888-F-US26D
Sargent 8888-F-US26D
How it Works - The Sargent 8888 Reversible Multi-Function Rim Exit Device►
Sargent8888-F-BSP
Sargent8888-F-10B
Sargent_8888-F-3
Sargent_8888-F-4
Sargent_8888-F-10
Sargent_8888-F-10BE
Sargent_8888-F-32
Sargent_8888-F-WSP
All SARGENT Products

Sargent 8888-F Rim Exit Device, Multi-Function, Exit Only, For 33"-36" Dr Width

  • SKU: 8888FUS32D
  • ✓
    In Stock
    In Stock
Your Price
$1,093.45/ea
Finish: US32D-630 Satin Stainless Steel

Volume Discounts Discount
3 + 5% off
6 + 7% off
12 + 10% off

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 8888-F Rim Exit Device, Multi...
Quantity
–
+
From $1,093.45
Sargent ETL Trims For Sargent 8500, 8...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $111.80
Total

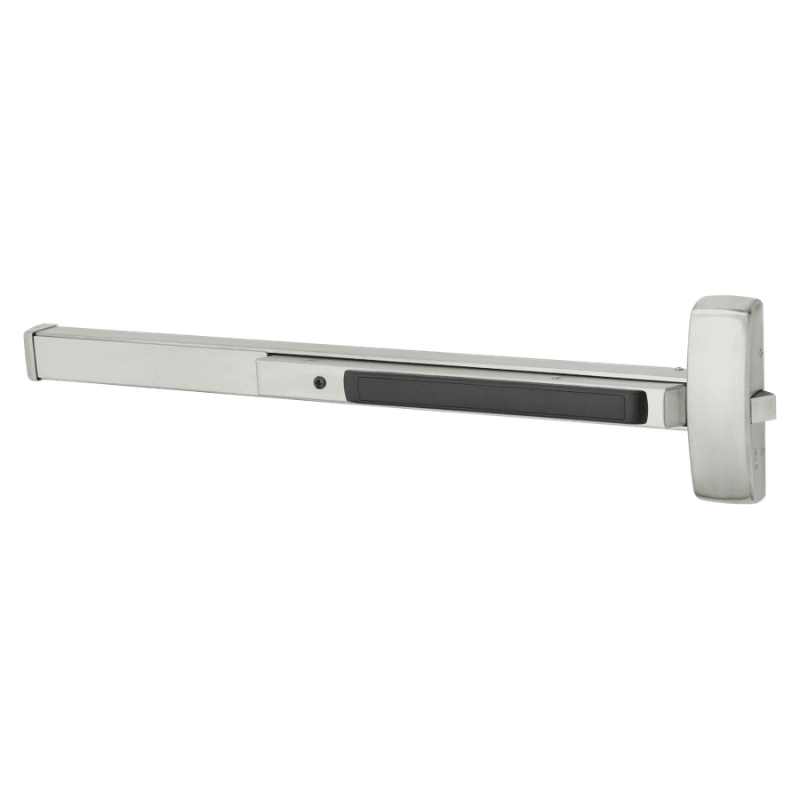

Sargent 8888-F- Rim Exit Device, Multi-Function, 33"-36" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1, Trim Sold Seperatly

The Sargent 8888-F is a 33"-36" Reversible Rim Exit Device is a multi-function grade 1 surface mounted panic bar with hex key dogging and a wide style push pad. The 8888 is non-handed, with seven functions determined by the trim.

Multi-Function Device: The Trims below decide the function of the device;

704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)

  • Non-handed
  • Single and double door applications
  • Device & trim sold separately; easy to mix and match
  • 3 available trim designs; trim is field reversible


Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only, Accepts Various Trim
Device Length 36"
Hand Non-Handed
Dogging Options Hex Key Dogging
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 33" to 36"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible Yes
Product Type Rim Exit Devices
