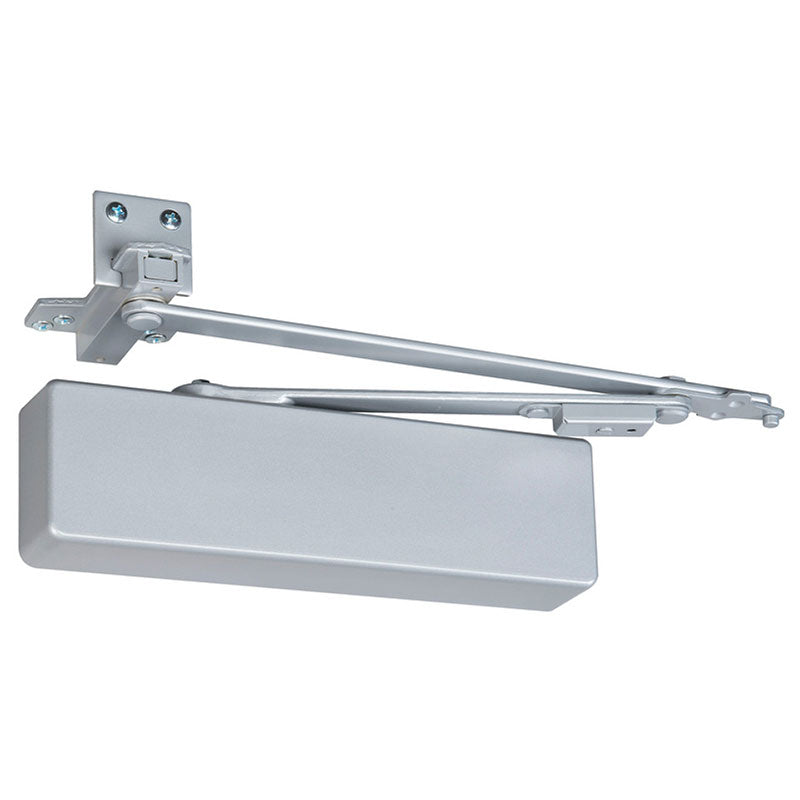

Norton UNI7500H-33-41-689 Parallel Arm Screw Hold Open Door Closer, Push Side, Unitrol Arm, Size 1 to 6, For 33" to 41" Doors, Aluminum Painted

  • SKU: UNI7500H3341689

Norton UNI7500H-33-41-689 Parallel Arm Screw Hold Open Door Closer, Push Side, Unitrol Arm, Size 1 to 6, For 33" to 41" Doors, Aluminum Painted

  • SKU: UNI7500H3341689
Sale price$590.15/ea
In Stock
In Stock

The Norton UNI7500H 33-41 689 Surface Closers come with a Unitrol Parallel Screw Adjusted Hold Open Arm, are Adjustable with Sizes 1-6, for doors 33" to 41" wide, and come in an Aluminum Painted Finish.

7500 Series Closers

Institutional heavy-duty door closer.

The 7500 Series is an institutional Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.

  • Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
  • Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
  • Closers shall be non-handed to permit installation on doors of either hand.
  • Closer fluid shall contain lubricity and anti-oxidation agents.
  • Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
  • Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
  • Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
  • Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
  • Closers shall have backcheck position controlled by a hex key adjusted valve.
  • [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
  • [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
  • Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
  • Environmental Product Declaration (EPD) certified



Manufacturer Norton
SKU UNI7500H 28-32 689
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number ANSI A156.4
BAA Qualified Yes
Limited Warranty 25 Years
Fire Rated No
ADA Compliance Yes
Finish 689/US28
Finish Description Aluminum Painted
Finish Family Matte Silver
Type Surface
Technology Hydraulic
Mounting Location Push Side
Mounting Style Parallel Arm
Hold Open Yes
Hold Open Type Screw
Degree Hold Open Adjustable
Closer Size 1 to 6
Arm Type Unitrol Arm
Hand Non-Handed
Back Check Adjustable
Cover Plastic
Door Size 28" to 32"
Cold Weather Fluid Yes
Product Type Surface Closers
