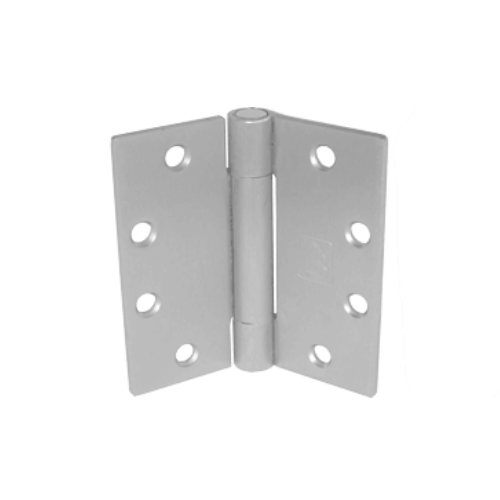

PBB 4C81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Heavy Weight

PBBSKU: 4C814545US26DNRP

Price:
Sale price$24.85
In Stock

Description

PBB 4C81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Heavy Weight

PBB 4C81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Heavy Weight, For use on heavy doors or doors receiving high-frequency usage. Concealed bearing-type hinges must be used on doors in conjunction with door closers and on all fire-rated openings.

Features

  • Concealed bearing for trouble-free long-life application
  • Hole in the bottom tip for easy pin removal
  • Non-rising removable pin
  • Attractive slim barrel with flush pins and plugs
  • Full Mortise
  • Wrought Steel
  • All hinges are ANSI template

Specifications

General Product Information: PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material: Steel-Polished and Plated or Bonderized and Prime Coated for Painting
Hinge Swaging: A standard swaging of our standard weight full mortise hinge, when closed to a parallel position, provides a 1/16" clearance between leaves
Material Gauge: .180 ± .005
Size: Height: 4.50 (+.000/-.015)
Width: 4.50 (+.000/-.015)
Standard Screw Size: FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
Packing Information: One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton
16 unit carton or 48 hinges per master shipping carton
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available
Manufacturer: PBB Inc.

Certifications

ANSI: A8111
