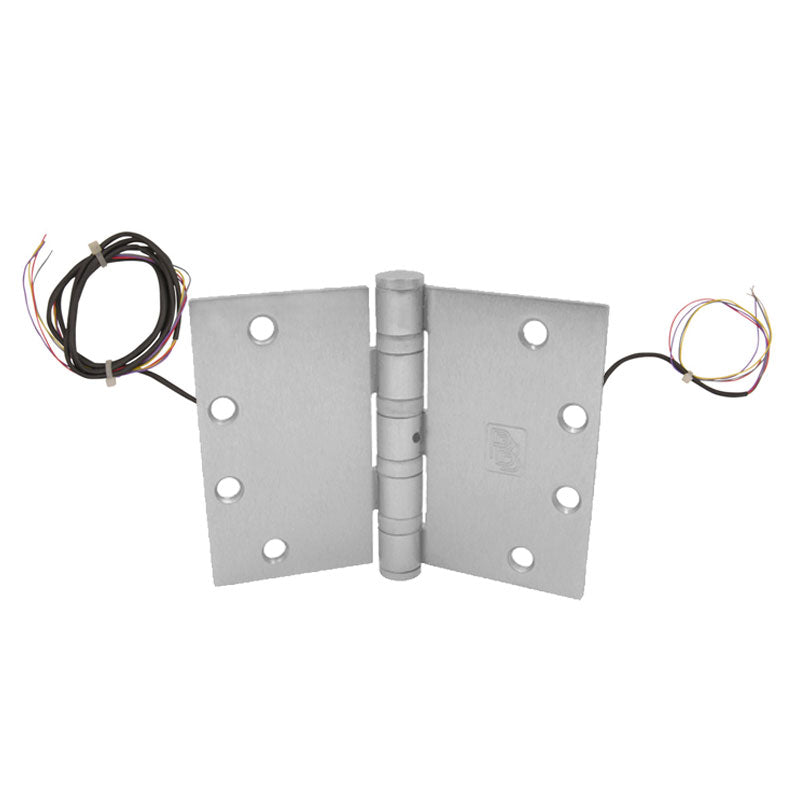

PBB EL4-WT4B81-4 1/2" x 6" NRP-US26D Electrified Wide Throw Full Mortise Heavy Weight Hinge, Satin Chrome

  • SKU: EL4WT4B81456NRPUS26D
PBB EL4-WT4B81-4 1/2" x 6" NRP-US26D Electrified Wide Throw Full Mortise Heavy Weight Hinge
All PBB Products

PBB EL4-WT4B81-4 1/2" x 6" NRP-US26D Electrified Wide Throw Full Mortise Heavy Weight Hinge, Satin Chrome

  • SKU: EL4WT4B81456NRPUS26D
  • ✓
    Available (4 Weeks)
    4 Weeks Lead Time
Your Price
$255.30 /ea

Buy at discounted prices

Volume Discounts Discount
3 + 10% off
12 + 12% off
24 + 15% off

PBB EL4-WT4B81-4 1/2" x 6" NRP-US26D Wide Throw Steel Full Mortise Heavy Weight Hinge, 4 1/2" High, x 6" " NRP" 5 Knuckle, Ball bearing, 4 Wire Electrified Hinge, Non Removable Pin, Satin Chrome Finish

The PBB EL4-WT4B81-4 is a 1/2" x 6" NRP-US26D electrically charged heavy weight hinge, designed for use in wide throw applications. This full mortise hinge is made of durable steel and features a 4 1/2" high design with 5 knuckles and a ball bearing mechanism. The 4 wire electrified hinge has a non-removable pin and is finished in a sleek satin chrome.

  • For use on heavy-weight doors requiring high-frequency service.
  • For use where doors must clear molding or protrusion, positioning the door out further, when open.
  • All hinges are ANSI templates.
  • EL4 Wire - Concealed electric through-wire. 4 PTFE coated 28 gauge
  • The screw pack includes all machine screws (24), and 1/2 wood screws (12).
Manufacturer PBB
SKU EL4-WT4B81
Installation Commercial
Product Type Heavy Weight Electric Hinges
MATERIAL GAUGE: .180 ± .005 for 4-1/2” x 5”, 6”, 7”, 8”
HEIGHT: 4.50 (+.000/-.015) for 4-1/2”
WIDTH: 6.00 ± .015 for 4-1/2” x 6”
4.5” WIDE THROW STANDARD SCREW SIZE FHMS – 12-24 x 1/2”
FHWS – 12 x 1-1/4”
Product Cut Sheet
